Foxconn A78AX 3.0 AMD 770 SB710 No I/O

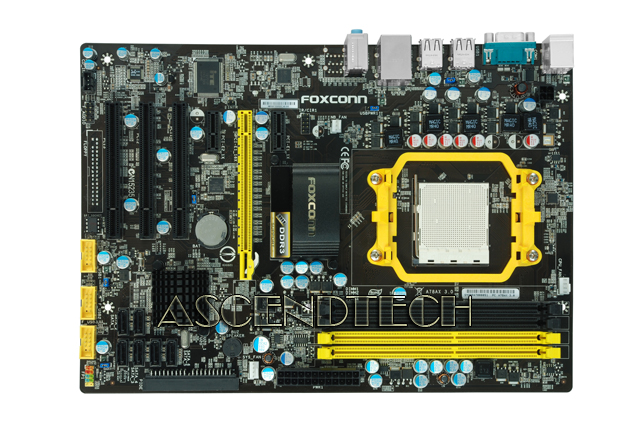

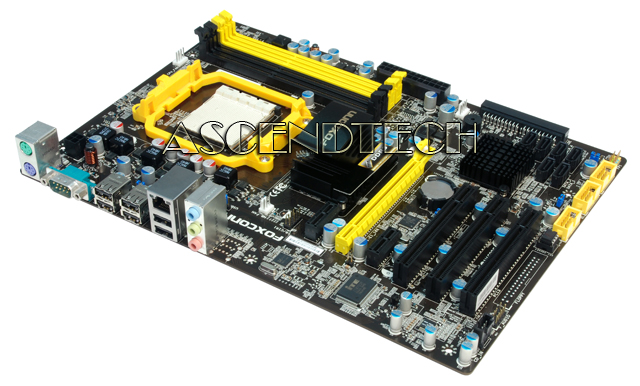

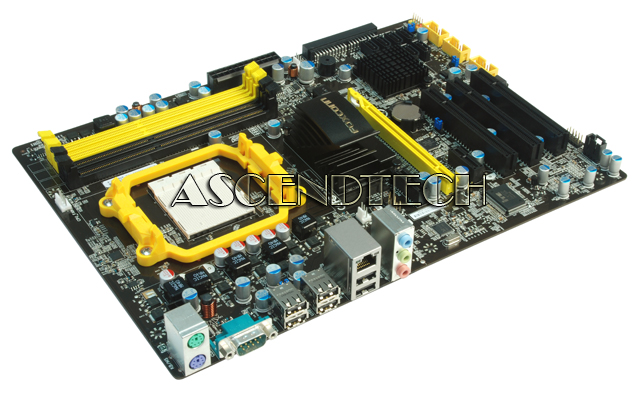

Foxconn A78AX 3.0 Based on the AMD 770 chipset with SB710 southbridge, the A78AX 3.0 supports socket AM3 processors, including AMD Phenom™II models.and with Dual channel DDR3 memory support up to 1600MHz(overclocking), the A78AX 3.0 delivers all-round system performance. Gigabit LAN, 5.1 channel HD audio and SATA RAID area all included on this Microsoft Vista™ and Win7 certified motherboard.


Foxconn Model Number: A78AX 3.0

* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Features:

AMD Phenom™ II ,Athlon™ II processors, Socket AM3 with HT3.0 interface
5.2 GT/s HyperTransport™
Dual channel DDR3 1600(oc)/1333/1066 x 4 DIMMs, Max 16GB
1* PCIe2.0 x16, 2* PCIe2.0 x1, 3* PCI
ATA 133 x 1, SATAII x 6
5.1 channel HD Audio
Gigabit LAN
12 USB 2.0 ports


Specifications:

Processor: AMD Phenom™ II,Athlon™ II processor, Socket AM3
Chipset: AMD® 770 + SB710
Front Side Bus: 5.2 GT/s HyperTransport
Memory: Dual channel DDR3 1600(oc)/1333/1066 x 4 DIMMs, Max. 16GB
VGA on Die: Discreted
Expansion Slots: 1* PCIe 2.0 x16, 2* PCIe 2.0 x1, 3* PCI
IDE: ATA 133 * 1
Serial ATA(SATA)/RAID: SATAII * 6 w / RAID 0, 1, 10
Audio: 5.1 channel HD Audio
LAN: Gigabit LAN
IEEE1394: N/A

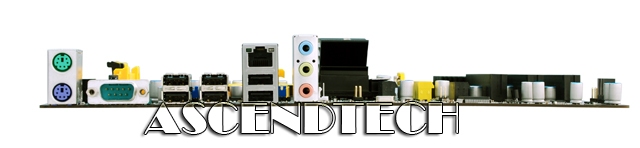

Back Panel I/O Ports:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x Series port
1 x Audio jack supports 3 jacks
6 x USB 2.0 ports
1 x RJ45 LAN jack
Internal I/O Connectors:
1 x ATX 24-pin power connector
1 x 4-pin ATX 12V power connector
2 x 4-pin CPU/System Fan connectors
1 x 3-pin NB Fan connector
1 x Front Audio header
1 x Front Panel header
1 x Buzzer
3 x USB 2.0 connectors support additional 6 ports
6 x SATAII connectors
1 x ATA133 IDE connector
1 x Intrusion Alarm header
1 x CD-in connector
BIOS Features: 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Standards/Manageability: PCI 2.3, USB2.0, DMI 2.5
Form Factor: ATX ( 12.0" x 8.6")
