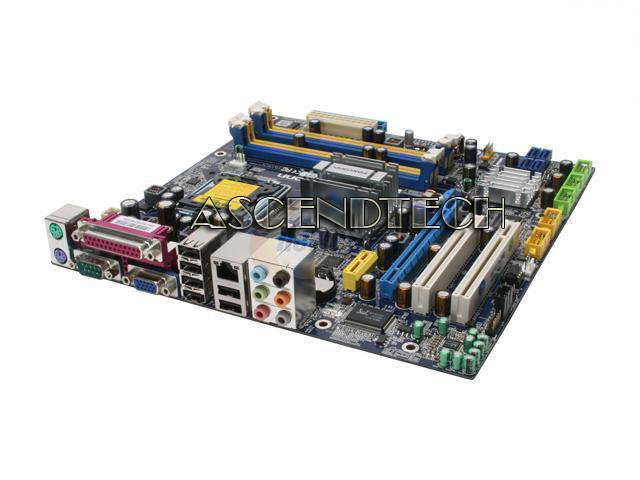

Foxconn G33M-S LGA775 DDR2 Motherboard

Foxconn G33M-S LGA775 DDR2 Motherboard. Designed to support Intel Core 2 Quad and Core 2 Duo processors, the G33M-S offers unprecedented graphics capability thanks to the Intel GMA 3100 onboard graphics processor. Intel Clear Video Technology and easy set-up with Intel TV Wizard make it a great multimedia solution. With Gigabit LAN, 8-channel HD Audio, 4 SATA II, RAID, Matrix storage technology, 2 Firewire and 12 USB 2.0 ports, this motherboard can be used as the basis of highly capable home and office PCs. Foxconn's proprietary system control and monitoring solution - FoxOne - is included, providing for enhanced control and tuning of your system.

Manufacturer: Foxconn
Part Number: G33M-S

Specifications:

CPU Socket Type
LGA 775

CPU Type
Quad-core / Core 2 Extreme / Core 2 Duo / Pentium D / Pentium 4 / Celeron

FSB
1333/1066MHz

Chipsets

North Bridge
Intel G33

South Bridge
Intel ICH9R

Memory

Number of Memory Slots
4×240pin

Memory Standard
DDR2 800

Maximum Memory Supported
8GB

Channel Supported
Dual Channel

Expansion Slots

PCI Express x16
1

PCI Express x1
1

PCI Slots
2

Storage Devices

PATA
1 x ATA100 2 Dev. Max

SATA 3Gb/s
4

SATA RAID
0/1/0+1/5 Matrix RAID

Onboard Video

Onboard Video Chipset
Intel GMA 3100

Onboard Audio

Audio Chipset
Realtek ALC888

Audio Channels
8 Channels

Onboard LAN

LAN Chipset
Realtek 8110SC

Max LAN Speed
10/100/1000Mbps

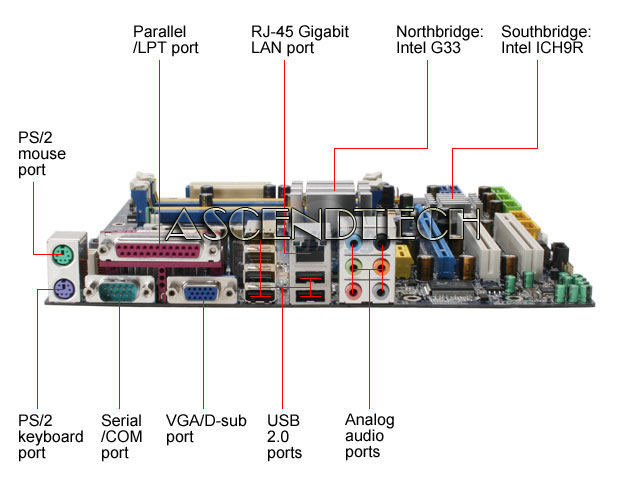

Rear Panel Ports

PS/2
2

COM
1

LPT
1

Video Ports
D-Sub

USB 1.1/2.0
6 x USB 2.0

Audio Ports
6 Ports

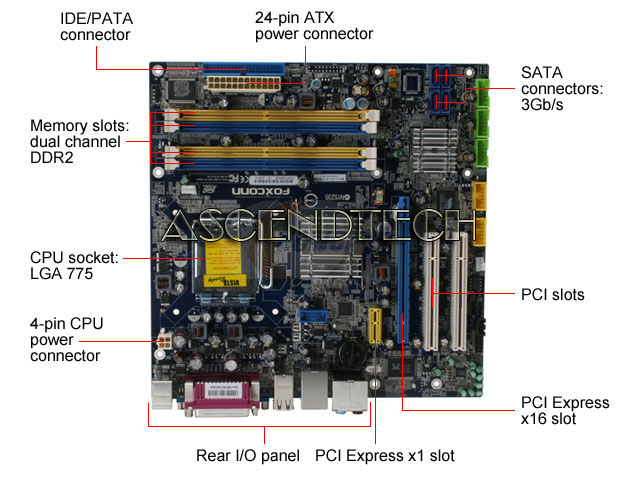

Internal I/O Connectors

Onboard USB
6 x USB 2.0

Onboard 1394
1 x 1394a

Physical Spec

Form Factor
Micro ATX

Dimensions
9.6" x 9.6"

Power Pin
24 Pin
