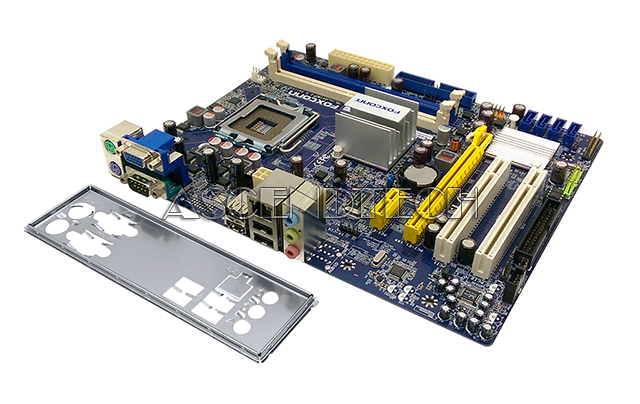

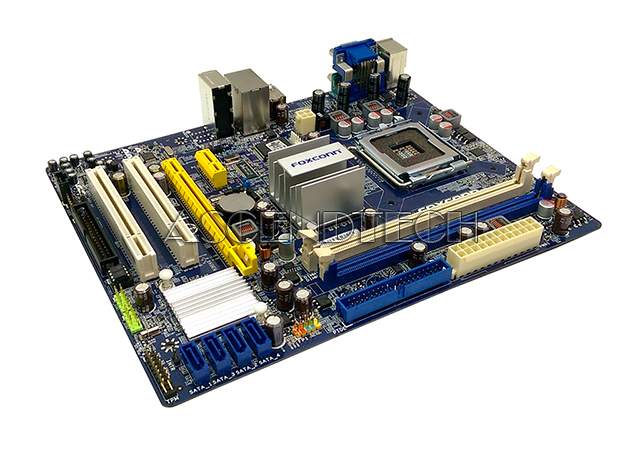

Foxconn G41M-F 2.0 LGA775 Motherboard

Foxconn G41M-F 2.0 Series Intel Socket LGA 775 G41 Chipset DDR2 USB 2.0 Micro-ATX Motherboard.

Foxconn Model Number: G41M-F 2.0
Compatible Part Numbers: N15235








Specifications:

Supported CPU
- CPU Socket Type: LGA 775
- CPU Type: Core 2 Quad/Duo / Pentium Dual-Core / Celeron
- FSB: 1333/1066/800 MHz

Chipsets
- Chipset: Intel G41
- South Bridge: Intel ICH7

Onboard Video
- Onboard Video Chipset: Intel GMA X4500

Memory
- Number of Memory Slots: 2×240pin
- Memory Standard: DDR2 800/667
- Maximum Memory Supported: 8GB
- Channel Supported: Dual Channel

Expansion Slots
PCI Express x16: 1x PCI Express x16
PCI Express x1: 1x PCI Express x1
PCI Slots: 2x PCI Slots

Storage Devices
- PATA: 1x ATA100 2 Dev. Max
- SATA 3Gb/s: 4x SATA 3Gb/s

Onboard Audio
- Audio Chipset: Realtek ALC662
- Audio Channels: 6 Channels

Onboard LAN
- LAN Chipset: Realtek 8111DL
- Max LAN Speed: 10/100/1000Mbps

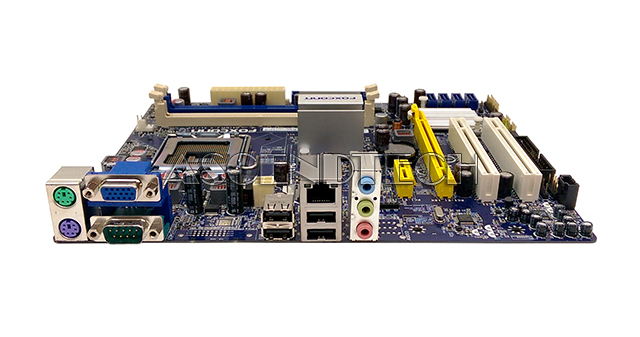

Rear Panel Ports
- PS/2: 2
- Serial/COM: 1
- Video Ports (VGA): 1
- USB 1.1/2.0: 4x USB 2.0
- Audio Ports: 3 Ports

Internal I/O Connectors
- Onboard USB: 2x USB 2.0 connectors support additional 4 ports

Physical Spec
- Form Factor: Micro ATX
- Dimensions (W x L): 9.6" x 7.7"
- Power Pin: 24 Pin
