Foxconn G41MX-K LGA775 DDR2 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

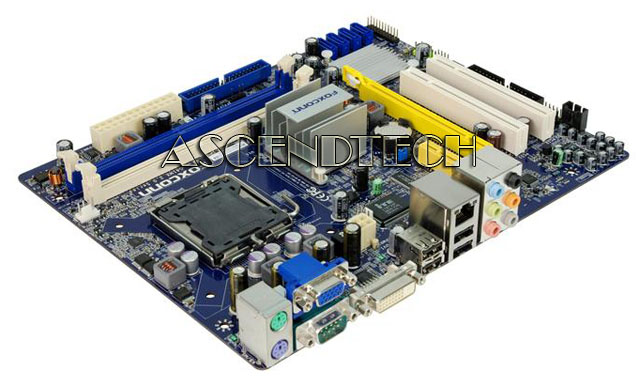

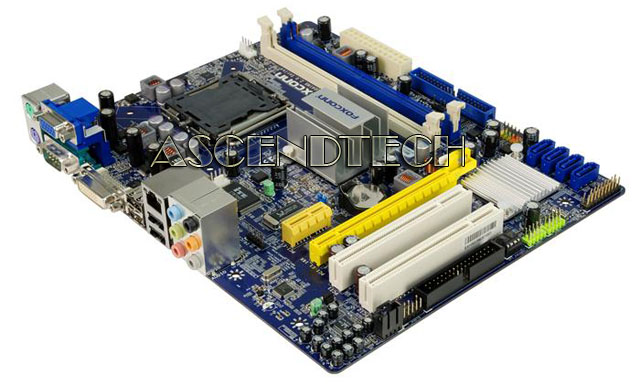

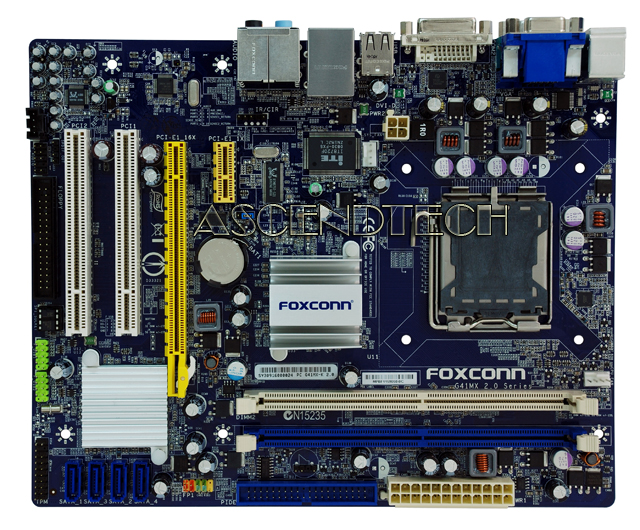

Foxconn G41mx-K Lga775 Ddr2 Motherboard. Model: G41 Core 2 Duo / Quad
  Enlarge
Foxconn G41mx-K Lga775 Ddr2 Motherboard. Model: G41 Core 2 Duo / Quad
Foxconn G41mx-K Lga775 Ddr2 Motherboard. Model: G41 Core 2 Duo / Quad
Foxconn G41mx-K Lga775 Ddr2 Motherboard. Model: G41 Core 2 Duo / Quad
Foxconn G41mx-K Lga775 Ddr2 Motherboard. Model: G41 Core 2 Duo / Quad
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4FOXG41MXK775
Brand Foxconn
Model G41 Core 2 Duo / Quad
Category Intel Lga775 Motherboards

Description

Foxconn G41MX-K 2.0 Based on the Intel® G41 chipset and supporting the 1333MHz FSB Intel® Core™2 Quad, Core™2 Duo and 45nm processors, the G41 allows you to build powerful PCs on a budget. Supporting up to 8GB of Dual Channel DDR2 memory at 800MHz and including FoxOne™ - Foxconn’s proprietary system control and monitoring solution - the G41MX-K 2.0 delivers performance and affordability in one package. Gigabit LAN and 8-channel HD audio are also included on this Microsoft Vista™ certified motherboard.






Features:
  • Intel® Core™2 Quad, Core™2 Duo, Pentium® Dual-Core processors, Socket T (LGA775) Supports Intel® 45nm Multi-Core processors
  • 1333/1066/800 MHz (FSB)
  • Dual channel DDR2 800/667x 2 DIMMs, Max 8GB1* SATA II , 2* SATA III ,1*eSATA II6* SATAII, SATA RAID 0,1, 10
  • 1* PCIe x16, 1* PCIe x1, 2* PCI
  • 4*SATAII ,1*ATA100
  • 7.1 channel by Realtek® ALC888, Gigabit LAN by Realtek
  • 8 USB 2.0 ports



Specifications:

Processor: Intel® Core™2 Quad, Core™2 Duo, Pentium® Dual-Core processors, Socket T (LGA775) Supports Intel® 45nm Multi-Core processors
Chipset: Intel® G41 + ICH7
Memory: Dual channel DDR2 800/667 x 2 DIMMs, Max 8GB
VGA on Die: Integrated
Expansion Slots: 1* PCIe x16, 1* PCIe x1, 2* PCI
IDE: 1*ATA100
Serial ATA(SATA)/RAID: 4* SATAII
Audio: 7.1 channel by Realtek® ALC888
LAN: Gigabit LAN by Realtek® 8111DL
IEEE1394: N/A

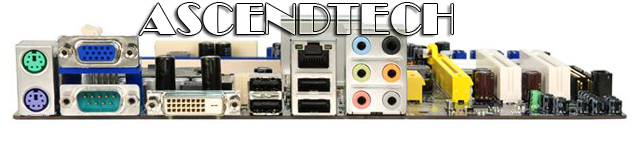

Back Panel I/O Ports:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x VGA port
1 x Serial port
1 x Audio jack supports 6 jacks
4 x USB 2.0 ports
1 x RJ45 LAN port
1 x DVI port
Internal I/O Connectors:
1 x ATX 24-Pin power connector
1 x 4-pin ATX 12V power connector
2 x 4-pin CPU / System FAN connectors
1 x CD-in connector
1 x IDE connector
1 x Floppy connector
1 x Front Panel connector
2 x USB 2.0 connectors support additional 4 ports
4 x Serial ATAII connectors
1 x S/PDIF Out header
1 x Speaker header
1 x Front Audio header
1 x IrDA header
1 x TPM header
BIOS Features: 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Standards/Manageability: PCI 2.3, USB2.0, DMI 2.5
Form Factor: Micro ATX (9.6"x7.7")
