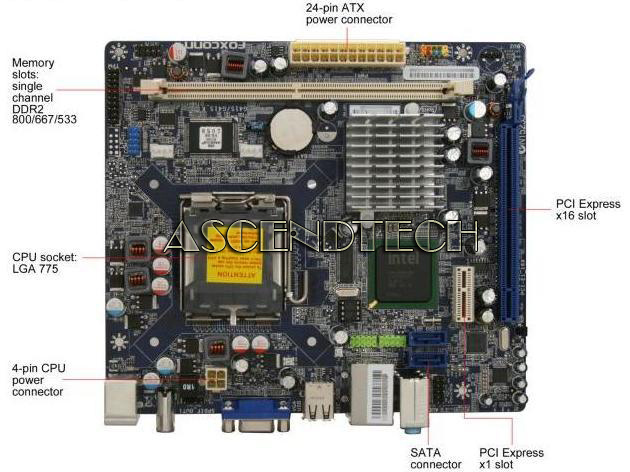

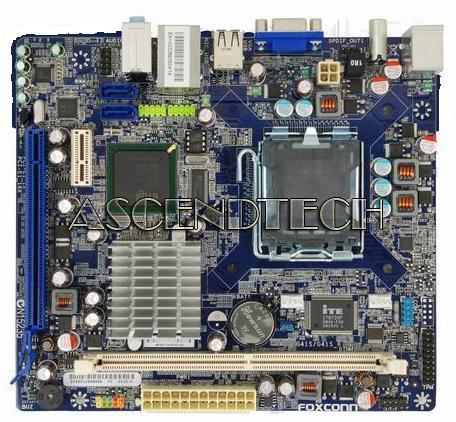

FOXCONN G41S-K LGA775 INTEL G41 1333FSB

Foxconn G41S-K LGA 775 Core 2 Quad Intel G41 DDR2 Audio Video & LAN Micro ATX Motherboard.

Specification:

Processor:
Intel® Core™2 Quad, Core™2 Duo, Pentium® Dual-Core processors
Socket T (LGA775)
Supports Intel® 45nm Multi-Core processors

Chipset:
Intel® G41 + ICH7

Front Side Bus:
1333/1066/800 MHz (FSB)

Memory:
DDR2 800/667/533 x 1 DIMM
Max 4GB

VGA:
Intel GMA X4500

Expansion Slots:
1 x PCIe x16
1 x PCIe x1

Serial ATA(SATA)/RAID:
2x SATAII

Audio:
5.1 channel by Realtek® ALC888S

LAN:
Gigabit LAN by Realtek® RTL8111D

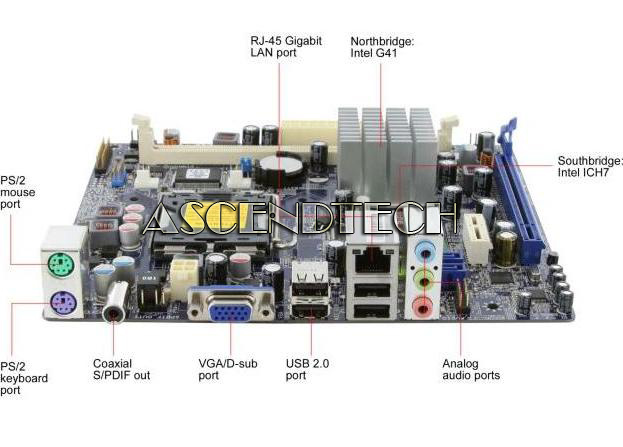

Back Panel I/O Ports:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x S/PDIF out coaxial connector
1 x VGA port
1 x Audio jack supports 3 jacks
4 x USB 2.0 ports
1 x RJ45 LAN port

Internal I/O Connectors:
1 x ATX 24-Pin power connector
1 x 4-pin ATX 12V power connector
2 x 4-pin CPU / System FAN connectors
1 x Front Panel connector
1 x Front Audio header
1 x S/PDIF Out header
2 x USB 2.0 connectors support additional 4 ports
2 x Serial ATAII connectors
1 x COM header
1 x IrDA header
1 x TPM header
1 x Speaker header

BIOS Features:
8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI

Support CD:
WHQL Drivers, Adobe Reader 7.07, Direct x 10.0, Norton 2006

Standards/Manageability:
PCI 2.3, USB2.0, DMI 2.5

Form Factor:
Micro ATX (193mm x 173mm)
