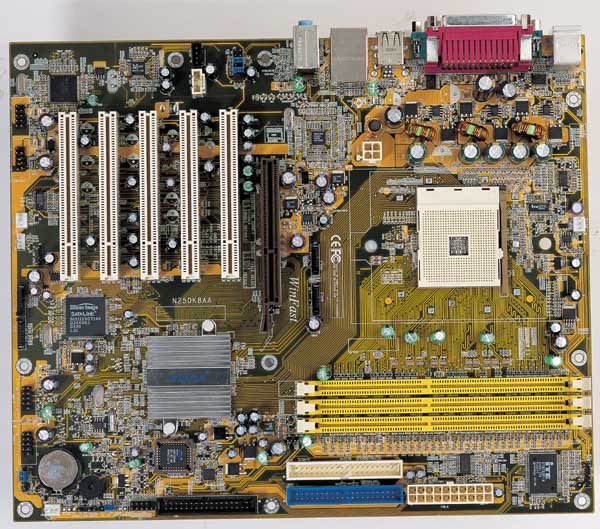

FOXCONN NF3250K8AA-RS S.754 MOTHERBOARD

Foxconn NF3250K8AA-RS AMD Socket 754 Motherboard. Foxconn’s NF3250K8AA-RS motherboard offers superior performance, reliability and quality, at a reasonable price. This motherboard adopts the advanced NF3 250 Single chipset solution, providing users a computer platform with a high integration-compatibility-performance price ratio.


Features:

• AMD Athlon™ 64 and Sempron processors, Socket 754
• 1600 MT/s HyperTransport
• Single channel DDR400 / DDR333 / DDR 266 DRAM x3 DIMMs, Max 3GB
• 2 Serial ATA w/ RAID
• 5.1 channel Audio (Realtek)
• 10/100M LAN (Realtek)
• 8 USB 2.0 ports


Specifications:

Processor: Socket 754 for AMD Athlon™ 64 and Sempron™ processors
Chipset: NF3 250 (Single chipset solution)
Front Side Bus: Up to 1600 MT/s HyperTransport™
Memory: Single channel DDR400 x3, support up to 3 GB
Expansion Slots: 1 x AGP 8X, 5 x PCI
IDE: ATA133 x 2
Serial ATA(SATA)/RAID: Serial ATA - 2 ports by NF3 250
Audio: Realtek ALC655; 5.1 channels
LAN: Realtek 8201BL 10/100 LAN PHY
Back Panel I/O Ports:
1 x PS/2 Keyboard
1 x line-in / line-out / MIC ports
1 x PS/2 Mouse
1 x Parallel
1 x LAN
2 x COM
4 x USB 2.0
Internal I/O Connectors:
1 x CD IN
1 x AUX IN
2 x USB 2.0 headers, support 4 ports
1 x S/PDIF
1 x IrDA header
BIOS Features: LPC ROM 4M, ACPI 1.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3, USB 2.0, WfM 2.0
Special Features: Wake on ring, LAN, USB, keyboard & mouse, STR (Suspend-to-Ram), STD (Suspend-to-Disk), SuperRecovery, SuperBoot, SuperBIOS-Protect, SuperSpeed by BIOS, SuperStep, SuperLogo, SuperUpdate by CD Driver, OverClocking
Form Factor: ATX (11.6” x 9.6”)
