NF4K8MC-RS | Foxconn Nf4k8mc-Rs Skt 939 Motherboard

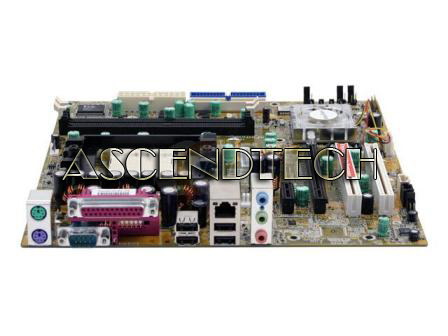

Foxconn NF4K8MC-RS SKT 939 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

Enlarge

*Note this image is for descriptional purposes.
Actual product may vary.

Item Code MBNF4K8MCRSMATX

Brand Foxconn

Model NF4K8MC-RS

Category Amd Socket 939 Motherboard

Description

Foxconn NF4K8MC-RS NVIDIA nForce4 Socket 939 mATX Motherboard. The WinFast by Foxconn NF4K8MC-RS is ideal for a personal computer or building into a multimedia computer for your home. With support for AMD Athlon 64 and Athlon 64 FX Socket 939 processors and up to 2 GB of RAM you can build one fast system capable of multimedia functions and gaming. Integrated audio and Ethernet controllers are key features that allow you to use the remaining PCI slots for other functions. Four Serial ATA controllers and two IDE controllers allow you to add storage as you need it. There are eight USB 2.0 ports to connect peripheral devices.

Manufacturer: Foxconn
Part Number: NF4K8MC-RS

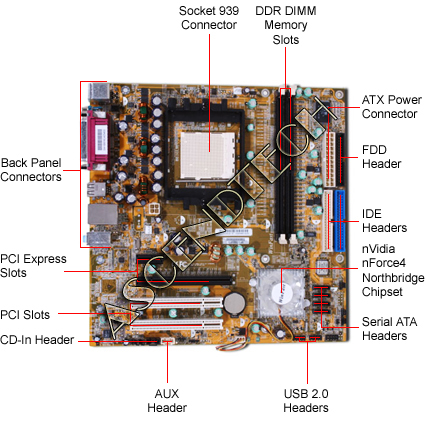

Specifications:

General Features:

NVIDIA nForce4 chipset

Socket 939

mATX form factor

Up to 2000 MT/s HyperTransport Front Side Bus (FSB)

Supports up to 2 GB DDR400 SDRAM

Realtek ALC655 AC'97 audio CODEC

Integrated MAC + Broadcom AC131 10/100 PHY Ethernet controller

2 x UDMA/133 IDE controllers

4 x SATA controllers

1 x floppy controller

Expansion Slots:

1 x PCIe x16 slot

2 x PCIe x1 slots

2 x PCI slots

2 x 184-pin DIMM slots

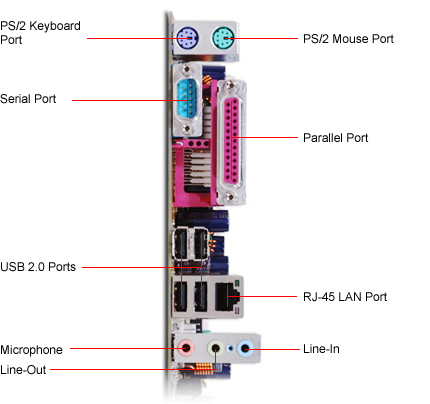

I/O Ports:

2 x PS/2 ports

1 x 9-pin standard serial port

1 x 25-pin standard parallel port

8 x USB 2.0 ports (four on I/O panel, four via header)

1 x RJ-45 Ethernet jack

Line-in, microphone, line-out, rear channel

Supported Processors:

AMD Athlon 64 Socket 939 processors

AMD Athlon 64 FX Socket 939 processors

Regulatory Approvals:

FCC
