FOXCONN NF4SK8AA-8KRS AMD SOCKET 939 SLI

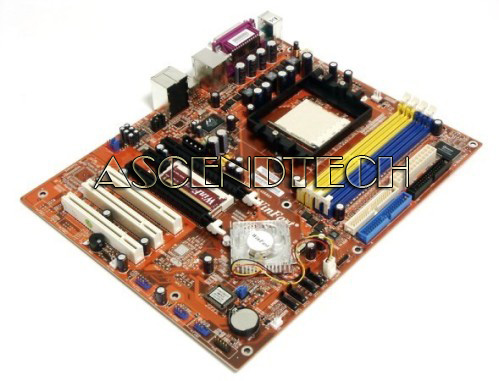

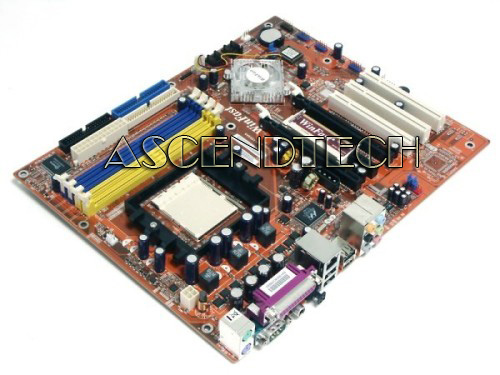

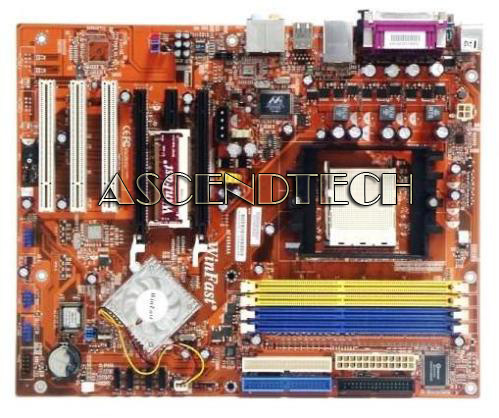

Foxconn NF4SK8AA-8KRS 939 NVIDIA nForce4 SLI ATX AMD Motherboard. Foxconn's nForce4 based board brings SLI to everyone at a value-conscious price. The Socket 939 supports the Athlon 64 processor line, including the X2 dual core units. Up to 4GB of dual channel DDR 400 memory can be installed in the 4 DIMM sockets. Two PATA ports support up to 4 devices and RAID levels 0, 1, 0+1 and JBOD. Not to be outdone the 4 SATAII ports support the same RAID levels, so no matter what kind of drives you have, your data is secure. You can also attach an external drive to one of the 4 USB 2.0 ports on the back panel or one of the up to 6 on the front. And the Gigabit Ethernet keeps you attached to your network at maximum speed. This is a great board for someone just getting into the SLI platform. Take one home and check for yourself!

Features:

• AMD Athlon 64 and 64 FX processors, Socket 939
• 2000 MT/s HyperTransport
• Dual channel DDR400 / DDR333 / DDR 266 DRAM x4 DIMMs, Max 4GB
• 2 PCIe x16, support dual GPU
• 1 PCIe x1
• 4 Serial ATAII
• 7.1 channel Audio, AC97 interface (Realtek)
• GbE LAN (Marvell)
• 10 USB 2.0 ports

Specifications:

Processor: Socket 939 for AMD Athlon 64 and 64 FX processors
Chipset: NVIDIA NF4 SLI
Front Side Bus: Up to 2000 MT/s HyperTransport
Memory: Dual channel DDR400 x4, support up to 4GB
Expansion Slots: 2 x PCIe x16, 1 x PCIe x1 and 3 x PCI slots
IDE: ATA133 x 2 (w/ RAID)
Serial ATA(SATA)/RAID: Serial ATA II x 4 with RAID 0,1,0+1,JBOD and cross-controller RAID
Audio: Integrated 7.1, Realtek ALC 850 (AC97 interface) - support S/PDIF-out
LAN: GbE LAN (PHY Marvell 88E1111)
Back Panel I/O Ports:
1 x PS/2 Keyboard & Mouse
1 set 7.1 channel Audio Jack (6 jacks)
1 x COM
1 x Parallel
2 x LAN
4 x USB 2.0
1 x Coax S/PDIF out port
1 x Fiber S/PDIF out port
Internal I/O Connectors:
1 x CD IN
1 x Front audio header
3 x USB 2.0 headers, support 6 ports
1 x COM2 header
1 x IrDA header
1 x Speaker header
BIOS Features: LPC-4Mb, ACPI 1.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3, USB 2.0, WfM 2.0
Standards/Manageability: USB2.0, WfM 2.0, DMI 2.0, WOL by PME, LPC 1.1 Interface, PC2001
Special Features: Wake on ring, LAN, USB, keyboard & mouse, STR (Suspend-to-Ram), STD (Suspend-to-Disk), SuperRecovery, SuperBoot, SuperBIOS-Protect, SuperSpeed by BIOS, SuperStep, SuperLogo, SuperUpdate by CD Driver, overclocking, MediaShield
Form Factor: ATX (12” x 9.6”)
