FOXCONN P35A LGA775 INTEL P35 DDR2

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Foxconn P35a Lga775 Intel P35 Ddr2 . Model: P35a Version: 1.0A
  Enlarge
Foxconn P35a Lga775 Intel P35 Ddr2 . Model: P35a Version: 1.0A
Foxconn P35a Lga775 Intel P35 Ddr2 . Model: P35a Version: 1.0A
Foxconn P35a Lga775 Intel P35 Ddr2 . Model: P35a Version: 1.0A

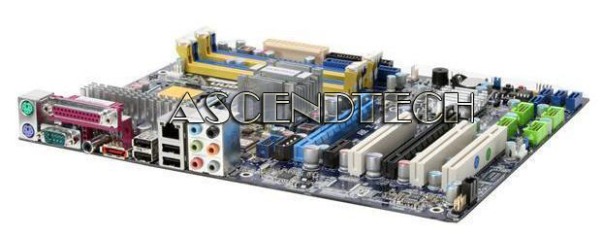

*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4FOXCOP35A10A
Brand Foxconn
Model P35A Version: 1.0A
Category Intel Lga775 Motherboards

Description

Foxconn P35A LGA 775 Intel P35 ATX Intel Motherboard. Utilizing the latest chipset technologies, the P35A motherboard is the new performance desktop solution. With support for upcoming 45nm processors, along with existing Intel Core 2 Quad and Core 2 Duo CPUs with FSB speeds of up to 1333MHz, this is the future-proof Intel performance motherboard. Gigabit LAN, 8-channel HD Audio, 4* SATAII and 1* eSATA ports are provided to accommodate even the most demanding applications.




Features:

  • Intel Core 2 Extreme/ Core 2 Quad/ Core 2 Duo processors support
  • Supports Intel® next generation 45nm Multi-Core processors
  • 1333/1066/800MHz FSB
  • Dual-channel DDR2 800/667MHz memory, Max. 8GB
  • ATI CrossFire & Foxconn Multi-Graphics support
  • 100% SOLID Capacitor design with Foxconn Sustainable Engineering
  • Windows Vista Premium certified

Specification:

Processor: Intel Core 2 Quad, Core 2 Extreme, Core 2 Duo, Pentium Dual-Core, Pentium D, Pentium 4, Celeron processors , Socket T (LGA775) Supports 45nm Multi-Core CPU
Chipset: Intel P35 + ICH9
Front Side Bus: 1333 / 1066 / 800 MHz (FSB)
Memory: Dual Channel DDR2 800 / 667 x 4 DIMMs, Max. 8GB
Expansion Slots: 2 x PCIe x16(run x16 + x4 mode, support dual graphics card technology), 1 x PCIe x1, 3 x PCI
IDE: ATA 133 x 1
Serial ATA(SATA)/RAID: 4 x SATAII + 1 x eSATA
Audio: 7.1 channel Audio with Realtek ALC888 (HDA)
LAN: GbE LAN with Realtek 8111B

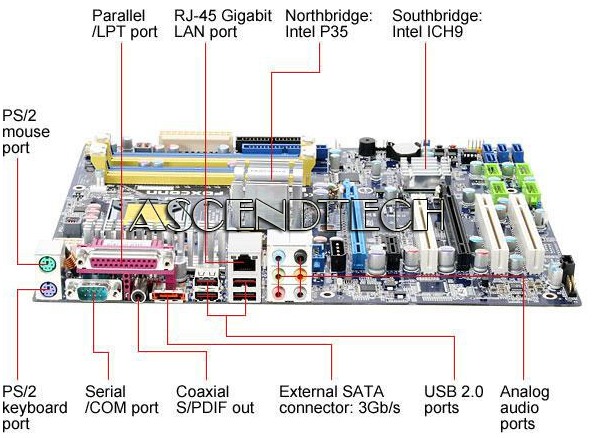

Back Panel I/O Ports:
1x Parallel port
1x PS/2 keyboard port
1x PS/2 mouse port
1x S/PDIF Out Coaxial
1x Audio Jack supports 6 jacks
1x eSATA
4x USB 2.0 ports
1x RJ45 LAN port
2x on-board Buttons (On/off and Reset)

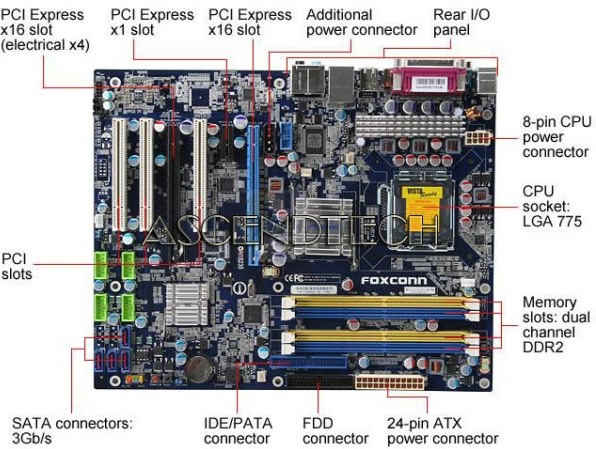

Internal I/O Connectors:
ATX 24-Pin power connector
8-pin ATX 12V power connector
CPU / System FAN connectors
1x CD-in connector
1x Front Audio header
1x BIOS Write Protect header
1x IRDA
1x Speaker
1x Front Panel connector
4x USB 2.0 connectors support additional 8 ports
1x On-baord switch
4x SATAII connectors
1x Intruder
1x COM header
1x on-board Power_LED
BIOS Features: 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Form Factor: ATX (12"x9.6")
