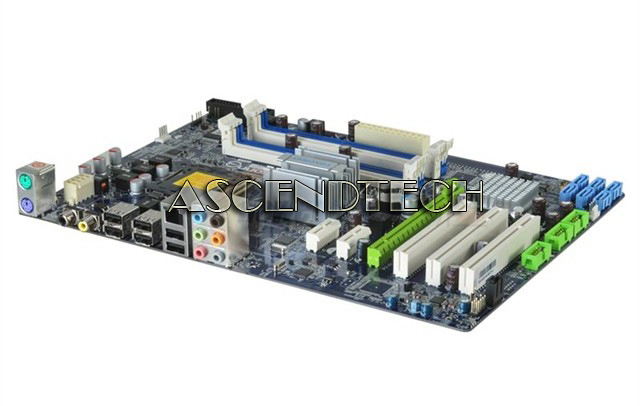

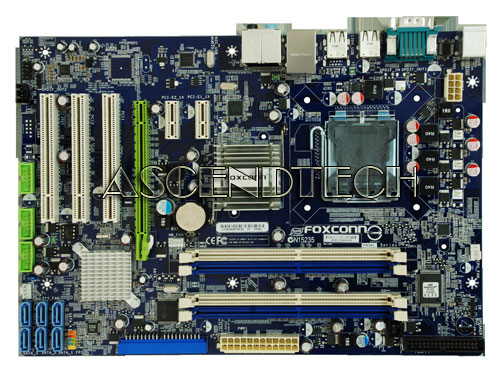

Foxconn P43AL LGA 775 DDR2 Motherboard

Foxconn P43AL ATX LGA 775 DDR2 Motherboard. Based on the Intel P43 chipset and supporting the latest 1600MHz (via overclocking) FSB Intel Core2 Quad, Core2 Duo and 45nm processors, the P43AL allows you to build powerful PCs on a budget. Supporting up to 16GB of Dual Channel DDR2 memory at 1066MHz (via overclocking ) and including FoxOne, Foxconn s proprietary system control and monitoring solution the P43AL delivers performance and affordability in one package. Gigabit LAN and 8-channel HD audio are also included on this Microsoft Vista certified motherboard.

Manufacturer: Foxconn
Part Number: P43AL

Specifications:

CPU Type
Core2 Quad/Core2 Extreme/Core2 Duo/Pentium D/Celeron dual-core/Celeron

CPU Socket Type
LGA 775

FSB
1600(O.C)/1333/1066/800MHz

North Bridge
Intel P43

South Bridge
Intel ICH10

Number of Memory Slots
4×240pin

Memory Standard
DDR2 1066(OC) / 800 / 667

Maximum Memory Supported
16GB

Channel Supported
Dual Channel

PCI Express x 1
2

PCI Express 2.0x 16
1

PCI Slots
3

SATA
3Gb/s 6

PATA
1 x ATA133 2 Dev. Max

Audio Chipset
Realtek ALC888S

Audio Channels
8 Channels

Audio Ports
6 Ports

LAN Chipset
Realtek RTL8111B

USB 1.1/2.0
6 x USB 2.0

S/PDIF Out
1 x Optical

PS/2
2

Power Pin
24 Pin

Form Factor
ATX

Dimensions
12" x 8.4"

S/PDIF In
1 x S/PDIF in coaxial connector
