FOXCONN P55MX LGA1156 INTEL P55 DDR3 ATX

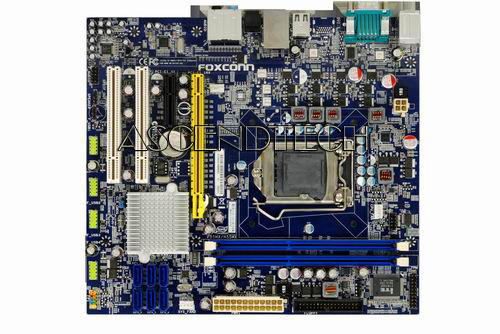

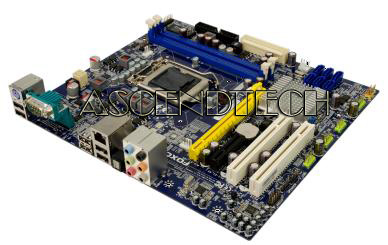

Foxconn P55MX LGA 1156 Intel P55 Micro ATX Intel Motherboard. The Foxconn P55MX incorporates Intel's brand-new P55 chipset, offering a valuable and affordable motherboard. The Foxconn P55MX supports the latest Intel i3, i5 and i7 based processors in LGA1156 package. It also provides full support for dual Channel DDR3 SDRAM up to 8GB running at 1333MHz. Shipped with PCI-e 2.0 x16 graphics interface that supplies twice the bandwidth, upgrading 3D performance will never be a problem. The board also provides diversified PS/2 ports for connections of inherited input devices. Build your PC/HTPC with the powerful Foxconn P55MX motherboard today.






Features:

• Intel Core i7, Core i5 processors, Socket LGA1156
• Supports Intel 45nm Hi-K CPU
• Dual channel DDR3 1333/1066 x 2 DIMMs, Max. 8GB
• 1x PCIe 2.0 x16, 1x PCIe x4, 2x PCI
• 6x SATA II
• 7.1 channel HDA
• Gigabit LAN
• 14 USB 2.0 ports

Specifications:

Processor: Intel Core i7, Core i5 processors, Socket LGA1156
Chipset: Intel P55
Front Side Bus: 2.5GT/s DMI
Memory: Dual channel DDR3 1333/1066 x 2 DIMMs, Max. 8GB
Expansion Slots: 1x PCIe2.0 x16, 1x PCIe x4, 2x PCI
Serial ATA(SATA)/RAID: 6x SATAII w / RAID 0, 1, 5, 10; Intel Matrix storage technology
Audio: 7.1 channel HDA by Realtek ALC888S
LAN: Gigabit LAN by Realtek 8111DL

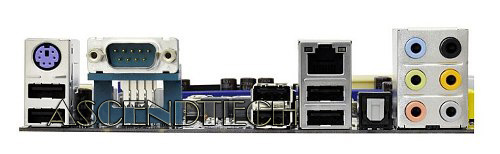

Back Panel I/O Ports:
1 x PS/2 keyboard port
1 x S/PDIF out Optical connector
1 x RJ45 LAN port
1 x Audio jack supports 6 jacks
6 x USB 2.0 ports
1 x Serial port
Internal I/O Connectors:
1 x ATX 24-Pin power connector
1 x 4-pin ATX 12V power connector
1 x 4-pin CPU Fan connectors
2 x 4-pin System FAN connectors
1 x Front pannel header
1 x TPM header
1 x Speaker header
4 x USB 2.0 connectors support additional 8 ports
6 x Serial ATAII connectors
1 x Floppy connector
1 x Front Audio Header
1 x S/PDIF Out header
1 x IrDA header
1 x COM header
BIOS Features: 16Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Standards/Manageability: PCI 2.3, USB2.0, DMI 2.5
Form Factor: Micro ATX (9.6" x 8.6")

CPU Compatibility for P55MX:

CPU Name	Core	Cpu No.	FSB (Mhz)	L2 Cache	Wattage
Intel Clarkdale 3.06G	Westmere	Core i3-540	133	N/A	73W
Intel Clarkdale 3.33G	Westmere	Core i5-660	133	N/A	73W
Intel Clarkdale 3.33G	Westmere	Core i5-661	133	N/A	73W
Intel Clarkdale 3.46G	Westmere	Core i5-670	133	N/A	73W
Intel Clarkdale 2.93G	Westmere	i3-530 Processor	133	N/A	73W
Intel Clarkdale 3.2G	Westmere	i5-650 Processor	133	N/A	73W
Intel Clarkdale 2.8G	Westmere	Intel Pentium Processor G6950	133	N/A	73W
Intel Lynnfield 2.66G	Nehalem	Core i5-750	133	1MB	95W
Intel Lynnfield 2.8G	Nehalem	Core i7-860	133	1MB	95W
Intel Lynnfield 2.93G	Nehalem	Core i7-870	133	1MB	95W
