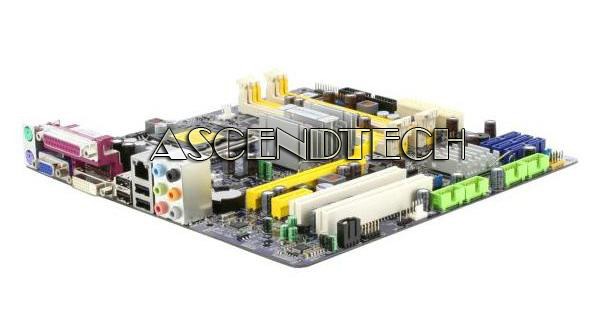

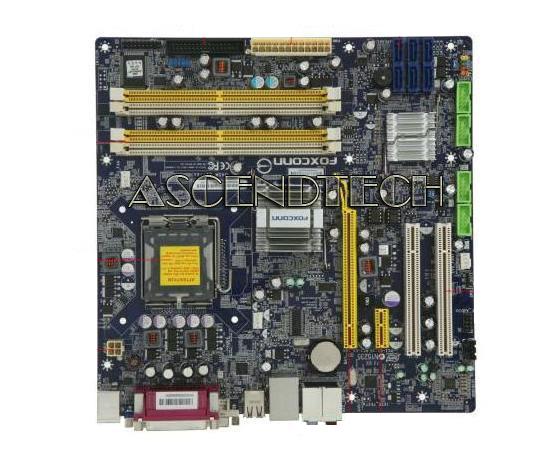

FOXCONN Q45M LGA775 Intel Q45 1333FSB

Foxconn Q45M LGA 775 Intel Q45 Micro ATX Intel Motherboard. With Intel vPro technology, the Q45M is fully equipped to provide the basis of an efficient and versatile corporate computing solution based on Intel Core 2 Quad or Core 2 Duo processors. With the Intel Q45 chipset and Intel Active Management Technology (AMT 5.0) at its, heart, the Q45M delivers advanced remote manageability and virtualization for small and large networks alike. Also featured is Intel Quiet System technology and Intel Rapid Recover technology, for increased data security. With the onboard DirectX 10 compliant graphics engine, 7.1 channel HD audio, RAID with Intel Matrix Storage Technology, and a range of connectivity options including SATA II and USB 2.0 - it is fully equipped for the corporate environment.

Features:

• Intel Core 2 Quad, Core 2 Duo processors , Socket T (LGA775)
• 1333/ 1066 / 800 MHz (FSB)
• Intel Hyper-Threading technology
• Dual Channel DDR2 800 / 667 x 4 DIMMs, Max. 16GB
• 1 x PCIe2.0 x16, 1 x PCIe2.0 x1, 2 x PCI
• SATAII x 6 (2 reserved),with RAID 0, 1, 5, 0+1
• 7.1 channel HD Audio by Realtek ALC888
• Gigabit Lan by Intel Boazman 82567
• 12 USB 2.0 ports

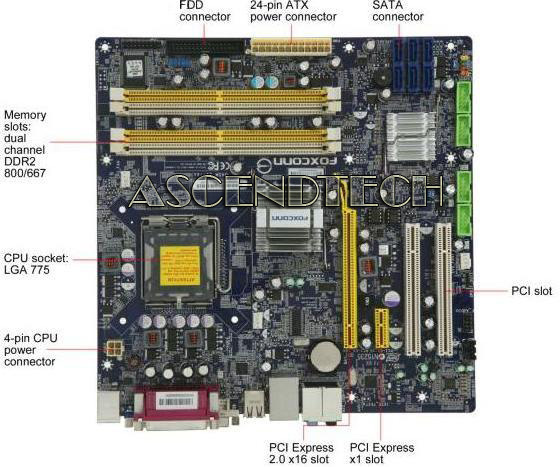

Specifications:

Processor: Socket 775 Support Intel Core 2 Quad/ Core 2 Duo processors
FSB: 1333/ 1066/ 800 MHz
Chipset: Intel Q45 & ICH10DO
Memory: 4x 240pin DDR2-800/667 DIMMs, Dual Channel, Max Capacity 16GB
Slots: 1x PCI-Express 2.0 x16 Slot; 1x PCI-Express 2.0 x1 Slot; 2x PCI Slots
SATA: 6x SATA2 Ports, support RAID 0, 1, 5, 0+1
Audio: Integrated Realtek ALC888 7.1-Channel High Definition Audio CODEC
Video: Intel GMA 4500 graphics with DirectX 10 support
LAN: Intel Boazman 82567 Gigabit Ethernet Controller

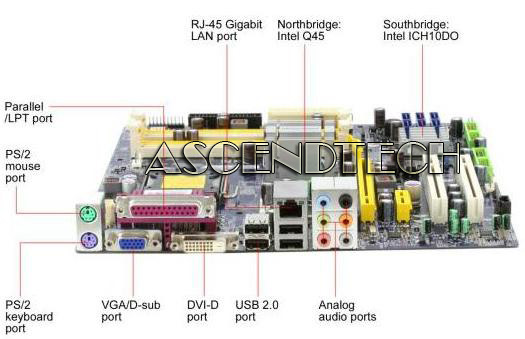

Ports:
12x USB 2.0 Ports(4 rear, 8 by headers)
2x PS/2 Ports
1x VGA port
1x DVI-D port
1x Parallel Port
1x RJ45 LAN Port
Audio I/O Jacks
Power Connector: 1x 24pin Main Power, 1x 4pin CPU Power
Form Factor: Micro ATX, 9.6 x 9.6 inch

CPU Compatibility for Q45M:

CPU Name	Core	Cpu No.	FSB (Mhz)	L2 Cache	Wattage
Intel Celeron  1.6G	Conroe-L	420	800	512KB	35W
Intel Celeron  1.8G	Conroe-L	430	800	512KB	35W
Intel Celeron  2.0G	Conroe-L	440	800	512KB	35W
Intel Celeron  2.2G	Conroe-L	450	800	512KB	35W
Intel Celeron Dual-core 1.6G	Conroe	E1200	800	512KB	65W
Intel Celeron Dual-core 2.0G	Conroe	E1400	800	512KB	65W
Intel Celeron Dual-core 2.4G	Conroe	E1600	800	512KB	65W
Intel Core 2 Duo 1.8G	Conroe	E4300	800	2MB	65W
Intel Core 2 Duo 2.0G	Conroe	E4400	800	2MB	65W
Intel Core 2 Duo 2.2G	Conroe	E4500	800	2MB	65W
Intel Core 2 Duo 2.4G	Conroe	E4600	800	2MB	65W
Intel Core 2 Duo 2.6G	Conroe	E4700	800	2MB	65W
Intel Core 2 Duo 1.86G	Conroe	E6300	1066	2MB	65W
Intel Core 2 Duo 1.86G	Conroe	E6320	1066	4MB	65W
Intel Core 2 Duo 2.13G	Conroe	E6400	1066	2MB	65W
Intel Core 2 Duo 2.13G	Conroe	E6420	1066	4MB	65W
Intel Core 2 Duo 2.33G	Conroe	E6540	1333	4MB	65W
Intel Core 2 Duo 2.4G	Conroe	E6600	1066	4MB	65W
Intel Core 2 Duo 2.66G	Conroe	E6700	1066	4MB	65W
Intel Core 2 Duo 2.66G	Conroe	E6750	1333	4MB	65W
Intel Core 2 Duo 3.0G	Conroe	E6850	1333	4MB	65W
Intel Core 2 Duo 2.53G	wolfdale	E7200	1066	3MB	65W
Intel Core 2 Duo 2.66G	wolfdale	E7300	1066	3MB	65W
Intel Core 2 Duo 2.66G	wolfdale	E8190	1333	3MB*2	65W
Intel Core 2 Duo 2.66G	wolfdale	E8200	1333	3MB*2	65W
Intel Core 2 Duo 2.83G	wolfdale	E8300	1333	3MB*2	65W
Intel Core 2 Duo 3.0G	wolfdale	E8400	1333	3MB*2	65W
Intel Core 2 Duo 3.16G	wolfdale	E8500	1333	3MB*2	65W
Intel Core 2 Duo 3.33G	wolfdale	E8600	1333	3MB*2	65W
Intel Core 2 Extreme 2.93G	Conroe	X6800	1066	4MB	75W
Intel Core 2 Quad 2.4G	Kentsfield	Q6600	1066	4MB*2	95W
Intel Core 2 Quad 2.66G	Kentsfield	Q6700	1066	4MB*2	95W
Intel Core 2 Quad 2.33G	Yorkfield	Q8200	1333	4MB	95W
Intel Core 2 Quad 2.5G	Yorkfield	Q9300	1333	6MB	95W
Intel Core 2 Quad 2.66G	Yorkfield	Q9400	1333	6MB	95W
Intel Core 2 Quad 2.66G	Yorkfield	Q9400S	1333	6MB	65W
Intel Core 2 Quad 2.66G	Yorkfield	Q9450	1333	12MB	95W
Intel Core 2 Quad 2.83G	Yorkfield	Q9550S	1333	12MB	65W
Intel Pentium Dual-core 1.6G	Conroe	E2140	800	1MB	65W
Intel Pentium Dual-core 1.8G	Conroe	E2160	800	1MB	65W
Intel Pentium Dual-core 2.0G	Conroe	E2180	800	1MB	65W
Intel Pentium Dual-core 2.2G	Conroe	E2200	800	1MB	65W
Intel Pentium Dual-core 2.4G	Conroe	E2220	800	1MB	65W
Intel Pentium Dual-core 2.5G	wolfdale	E5200	800	2MB	65W
Intel Pentium Dual-core 2.7G	wolfdale	E5400	800	2MB	65W
