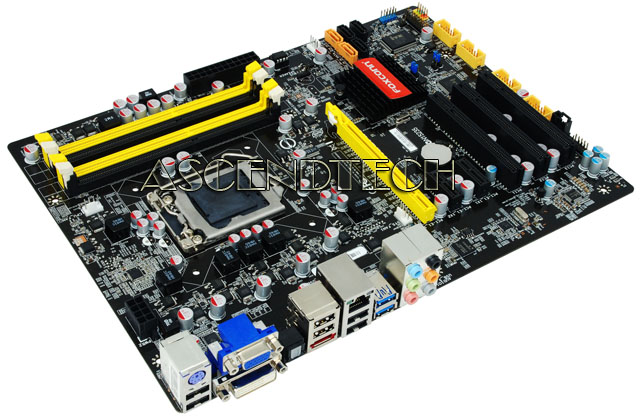

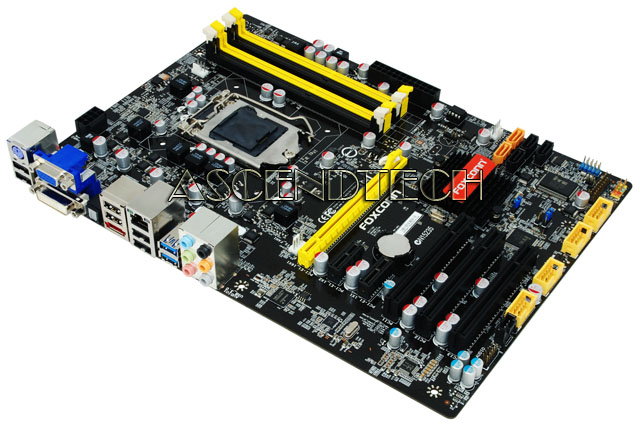

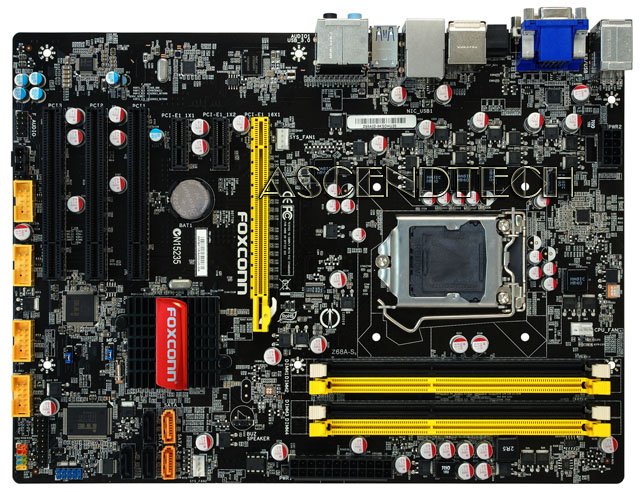

Foxconn Z68A-S LGA1155 Z68 DDR3 MBoard

Foxconn Z68A-S is a performance segment MB, target to meet DDR3 platform demands of enthusiasts and gamers support LGA1155 for Intel®sandybridge processors with Z68 single chipset .the Z68A-S allows you to build powerful PCs on a budget. Supporting 2 channel 4 DIMMs DDR3 memory up to 32GB at 2133(oc)MHz and SSD-Like System Responsiveness 、 Switchable Graphics Support1 ,it is the best MB with DVI, VGA and USB3.0 integrated. Gigabit LAN and 8-channel HD audio are also included on this Microsoft Vista™ certified and Windows 7 ready motherboard.

Features:


Intel® Z68 Supports LGA1155 for Intel® sandybridge processors
Dual channel DDR3 2133(oc)/1866(0c)/1333 x 4 DIMMs, Max. 32GB
1x PCIe2.0 x16, 2* PCIe x1, 3* PCI bus slots
3x SATA II + 2* SATA III w / RAID 0, 1, 0, 1.5; Intel® Matrix storage technology
2x USB3.0 and 14*USB2.0 connectors
7.1 channel HDA; Gigabit Lan
Support Lucid Virtu GPU Virtualization

Specifications:

Processor: Intel® Sandybridge processors, Socket LGA1155; Max. 95W
Chipset: Intel® Z68
Memory: Dual channel DDR3 2133(oc)/ 1866(oc)/1600(oc)/1333/1066 x 4 DIMMs, Max. 32GB
Expansion Slots: 1* PCIe2.0 x16, 2* PCIe x1, 3* PCI bus slots
IDE: N/A
Serial ATA(SATA)/RAID: 3* SATA II + 2* SATA III w / RAID 0, 1, 0+1 ,5 ; Intel® Matrix storage technology
Audio: 7.1 channel HDA
LAN: Gigabit Lan
IEEE1394: N/A

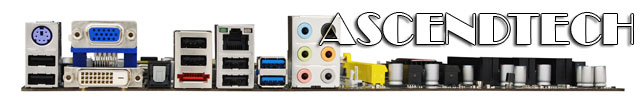

Back Panel I/O Ports:
1 x PS/2 keyboard port
1 x VGA port
1 x DVI port
1 x S/PDIF out Optical port
1 x eSATAII port
1 x Audio jack supports 6 jacks
1 x RJ45 LAN port
6 x USB 2.0 ports
2 x USB 3.0 ports
Internal I/O Connectors:
1 x ATX 24-Pin power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin CPU FAN connectors
2 x 4-pin System FAN connector
1 x Front pannel header
1 x Front Audio Header
1 x COM header
1 x TPM header
4 x USB 2.0 connectors support additional 8 ports
3 x Serial ATAII connectors
2 x Serial ATAIII connectors
1 x Intruder Alarm headers
1 x S/PDIF out header
1 x CLR_CMOS header
1 x CD-IN header
1 x Speaker header
BIOS Features: 32Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0
Standards/Manageability: PCIe 3.0, PCI2.3, USB3.0/2.0, SMBIOS2.7
Form Factor: ATX form factor 12.0 inch x 8.8 inch
