Gateway 160Watt 3.75A Flex Power Supply

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

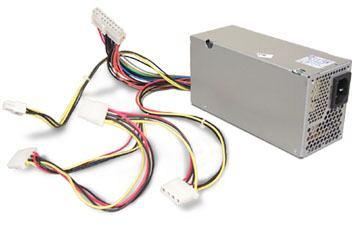

Gateway 160Watt 3.75A Flex Power Supply . Model: 6500696 Dps-160Hb B
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code CSPGW6500696
Brand Gateway
Model 6500696 DPS-160HB B
Category Gateway Power Supplies

Description

Gateway 160Watt 3.75A Flex ATX Power Supply. Direct Replacement For Gateway Computer Towers. Manufacturers Model Number DPS-160HB B.

Specifications:

Mart Number: 6500696

ModelDPS-160HB B
InputInput voltage range: 90 to 265 Vac, single phase
Normal voltage range: 100 to 240 Vac
Input frequency range: 47 to 63 Hz
Maximum input AC current 3.75 A maximum @ 100 Vac maximum load
Inrush current: A @ 264 Vac, full load, no damage shall occur or components
over stressed, input fuse shall not blow
Output+12 VDC, 8 A
+5 VDC, 12 A
+3.3 VDC, 16.7 A
+5 VSB, 1.5 A
–12 VDC, 0.2 A
Maximum combined output power on +5 V and +3.3 V is 60 W.
Environmental
Operating Ambient Temperature10 to 50° C
Storage Ambient Temperature–40 to 70° C
Operating Humidityto 85% relative humidity
Storage Humidityto 95% relative humidity
Operating Altitudeto 5,000 ft
Storage Altitudeto 50,000 ft
Mechanical Shock/Non-Operation50 G trapezoidal wave, velocity change=170 in/sec
MTBF100k hours min. at 25° C, 75% of full-rated load and 120 Vac input line voltage
