Gateway 4000983 Intel 915G Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

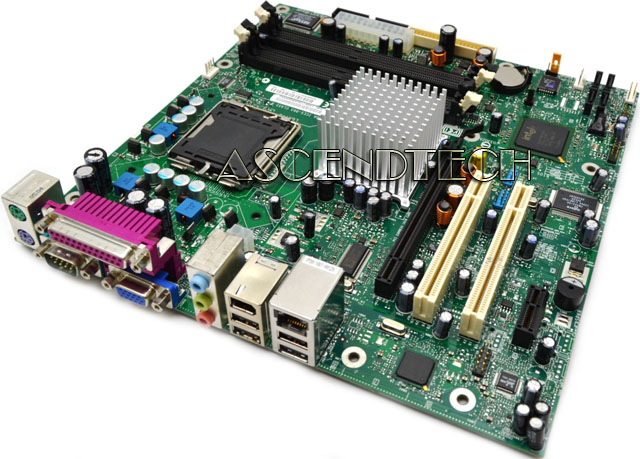

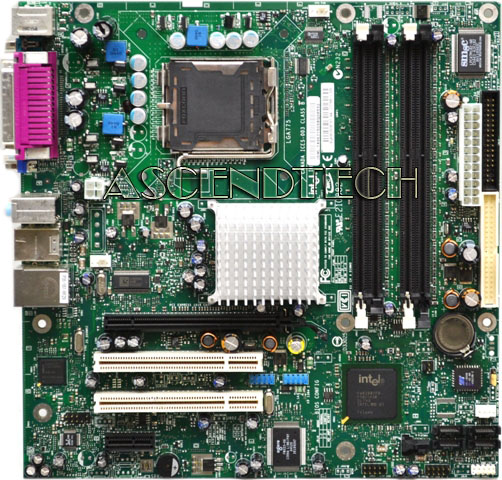

Gateway 4000983 Intel 915G Motherboard. Model: 102007 D915gag D915psy
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4GWAUGSBURG
Brand Gateway
Model 102007 D915GAG D915PSY
Category Intel Lga775 Motherboards

Description

Gateway Augsburg Intel 915G ChipSet Motherboard Is A Direct Replacement For 506GR 550GR 5200S Model Computers. This motherboard supports Intel® Pentium® 4 LGA775 processors, Intel Graphics Media Accelerator 900, PCI Express graphics, DDR 400/333 MHz memory, and Intel High Definition Audio.

Specifications:

Gateway Part Numbers: 102007 103390 102175 2521775 2522139 2522140 2522141 2522142 2522143 2522144 2522145 2522146 2522147 2522148 2522149 2522150 2522151 2522152 2522153 2522154 2522155 2522201 2522202 4000966 TMEOEMD915GAGLG1
Compatible Part Numbers: C77881-306

Intel Part Numbers: D915GAG / D915PSY

Replacement board for:  506GR 550GR 5200S Series / 420GR 420GH 505GH 503GR 815GM 508GE

Please Note: This Model Comes With FireWire Connector As Well As The PCI Express Slot.

Download Drivers Here

Direct Manufacturers Link

Compatible Part & Model Numbers: 2521779 2522166 2522173 2522174 2522175 2522176 2522177 2522178 2522179 2522180 4000983 WMEOEMD915GUXKG1 OEMD915GAGLG1 MBEM102175AG

Form FactormicroATX Form Factor (9.60 × 9.60 inches [243.84 × 243.84 millimeters]
ProcessorSupport for an Intel® Pentium® 4 processor in an LGA775 socket with an 800 or 533 MHz system bus
Memory
  • Four DDR SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR 400 MHz and DDR 333 MHz DIMMs
  • Support for up to 4 GB of system memory
ChipsetIntel® 915G Chipset, consisting of:
  • Intel® 82915G Graphics Memory Controller Hub (GMCH)
  • Intel® 82801FB I/O Controller Hub (ICH6)
  • 4-Mbit Firmware Hub (FWH)
VideoIntel® GMA900 onboard graphics subsystem
AudioIntel® High Definition Audio subsystem using the Realtek ALC860 audio codec
I/O ControlSupport for USB 2.0 devices
Peripheral Interfaces
  • Eight USB ports
  • One serial port
  • One parallel port
  • Four Serial ATA interfaces
  • One Parallel ATA IDE interface with UDMA 33, ATA-66/100 support
  • One diskette drive interface
  • PS/2 keyboard and mouse ports
LAN Support10/100 Mbits/sec LAN subsystem using the Intel® 82562EZ Platform LAN Connect (PLC) device
BIOS
  • Intel/AMI BIOS (resident in the 4 Mbit FWH)
  • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
Instantly Available PC Technology
  • Support for PCI Local Bus Specification Revision 2.2
  • Support for PCI Express Revision 1.0a
  • Suspend to RAM support
  • Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports
Expansion Capabilities
  • Two PCI Conventional bus connectors
  • One PCI Express x1 bus add-in card connector
  • One PCI Express x16 bus add-in card connector
Hardware Monitor Subsystem
  • Hardware monitoring and fan control ASIC
  • Voltage sense to detect out of range power supply voltages
  • Thermal sense to detect out of range thermal values
  • Three fan connectors
  • Three fan sense inputs used to monitor fan activity
  • Fan speed control
Other FeaturesHeceta 6e; Intel® Precision Cooling Technology











The rear I/O ports for the Augsburg motherboard consist of a PS/2 mouse port, PS/2 keyboard port, serial port/ parallel port, VGA port, three audio jacks, four USB ports, an IEEE-1394a port, and a NIC port.
