Gateway 7330 310A1MB0011 Motherboard

Gateway 450SX4 7330 M520 Series 310A1MB0011 DA0OA1MBAB2 Laptop Motherboard. Gateway meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

Gateway Part Number: 310A1MB0011
Compatible Part Numbers: DA0OA1MBAB2
Compatible Models: 7330 7320 M520 450SX4

Specifications:

CPU Socket: Intel socketable micro-FCPGA
Chipset: Intel 845MZ chipset
Memory: 2 x 200-pin DDR SODIMM sockets
Video: ATI M6-P Graphic Controller
Audio: ESS ES 1988

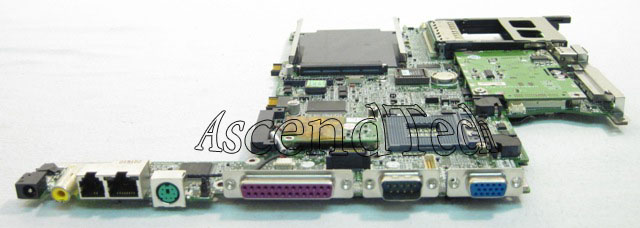

I/O Ports:
2 x USB (4-pin). Version 1.1
1 x High-speed serial
1 x Parallel (bi-directional, EPP, ECP)
1 x IEEE 1394 (4-pin)
1 x V.90, 56K Modem (RJ-11)
1 x 10/100 Ethernet (RJ-45)
1 x External monitor (VGA)
1 x TV out (NTSC/PAL composite video)
1 x Stereo headphone output
1 x Stereo line input
1 x Monophonic microphone input
1 x PS/2 keyboard or mouse
1 x PC Card sockets (two Type II or one Type III)
1 x Docking port
1 x DC input
