Gateway 8-In-1 Flash Memory Card Reader

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeACCGWUSB5503314
BrandGateway
Model5503314 5503313
CategoryFlash Memory Card Readers

Description

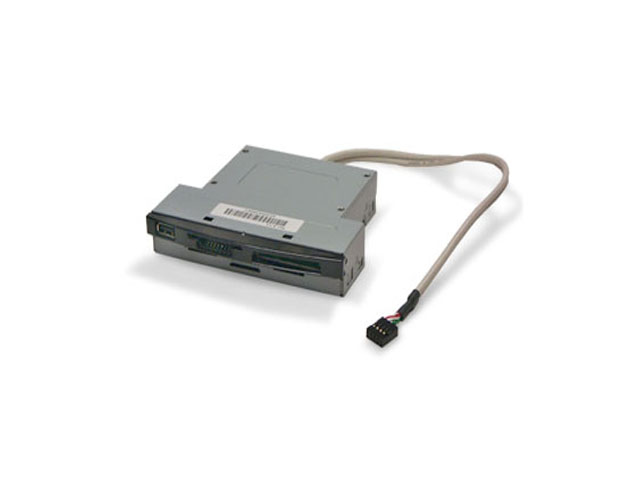

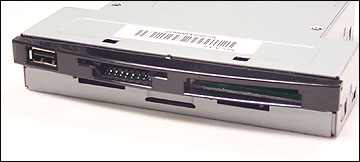

Gateway 8-in-1 media card reader. This 8-in-1 media card reader has two USB 2.0 ports and slots for Secure Digital (SD), Smart Media, Compact Flash, Memory Stick, Memory Stick PRO, Micro Drive and Multimedia cards.

Gateway Part Numbers: 100712, 101313, 104889, 5503313, 5503314, 5503819, WMENMD2002003.

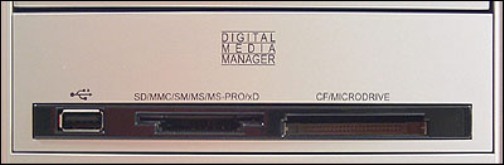

Media cards supported:

  • Left slot:

    • SecureDigital (SD)
    • MultiMedia Card (MMC)
    • SmartMedia (SM)
    • Memory Stick® (MS)
    • Memory Stick Pro® (MS Pro)



  • Right slot:
    • CompactFlash™ (CF)
    • Microdrive


Compatible with: most eMachines and Gateway Models





Silver Faceplate NOT Included.


8-in-1 Media Card Reader Specifications
General
PerformanceMaximum read speed: 1.7 MB/sec
Maximum write speed: 1.5 MB/sec
InterfaceUSB 1.1 standard

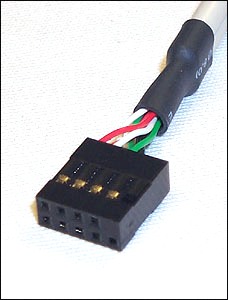

The card reader is powered through the USB connection leading from the motherboard USB connector
Media supportedLeft slot:
  • SecureDigital (SD)
  • MultiMedia Card (MMC)
  • SmartMedia (SM)
  • Memory Stick® (MS)
  • Memory Stick Pro® (MS Pro)

Right slot:

  • CompactFlash™ (CF)
  • Microdrive
Operating systemWindows XP using native drivers
Media connectivity
  • Ports operate independently of each other.
  • Each port is capable of being accessed simultaneously.
  • One LED lights when any supported card is properly installed.
  • LED blinks when data is being read or written to the card.
Flash media types supported
CompactFlash I and II, Microdrive
  • Dimensions (L × W × H): 36.4 × 42.8 × 5.0 mm maximum
  • Power: 3.3 V and 5 V devices
  • Capacity: Up to 1 GB
Smart Media
  • Dimensions (L × W × H): 45 × 37 × .76 mm
  • Power: 3.3 V and 5 V devices
  • Capacity: Up to 256 MB
MultiMedia, Secure Digital
  • Dimensions (L × W × H): 32 × 24 × 1.4 mm
  • Power: 3.3 V
  • Capacity: Up to 128 MB for MultiMedia. Up to 512 MB for Secure Digital
Memory Stick, Memory Stick PRO
  • Dimensions (L × W × H): 50 × 21.5 × 2.8 mm
  • Power: 3.3 V
  • Capacity: Up to 128 MB for Memory Stick. Up to 1 G for Memory Stick PRO
Physical
Dimensions (H × W × D)25.21 × 135.50 × 120.62 mm (minimum)
WeightApproximately 0.26 KG
Environmental
TemperatureOperating: 0° C to 40° C
Storage: -20° C to 45° C
Relative humidity (non-condensing)Operating: 0% and 90%
Storage: 0% to 95%
