Gateway 955 CD-Rom / Floppy Combo Drive
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Enlarge

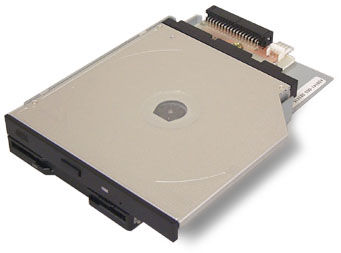

*Note this image is for descriptional purposes.
Actual product may vary.
Actual product may vary.
Description

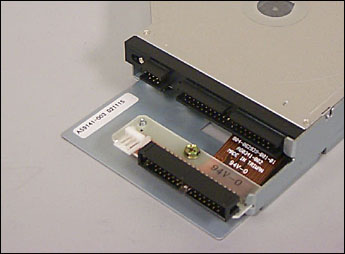

Gateway 955 CD-Rom/Floppy Combo Drive For Notebook Computers. The combination drive module contains a slimline CD-ROM drive and a slimline floppy disk drive. They are mounted on a common drive tray. Adapter boards for converting the connections to the standard IDE and floppy connections are mounted on the board as well. The slimline floppy peripheral connection is a short length of Flexible Circuit, the power connector is a right angle four-position header and the cable interface is a standard vertical floppy header (with pin 3 pulled). One 6-32 screw is used to secure this board.
Features & Specifications:
Part Number: 5502755 / A59141-003 / A59141
CD-ROM Specifications:
| Applicable Disc Format | CD-DA, CD-ROM ( MODE-1,MODE-2 ) CD-ROM XA MODE 2 ( FORM 1,FORM 2 ) Multi-session Photo CDTM, CD-I, Video-CD, CD Extra ( CD Plus ), CD-RW, CD-TEXT, Addressing Method 2 |
| Disc Diameter | 12 centimeters (cm), 8 cm |
| Disc Rotation Speed | 5,136rpm typical |
| Interface | IDE/ATAPI |
| Data Transfer Rate | Sustained: 1,545KB/sec. - 3,600KB/second (FULL-CAV) Burst: 16.7MB/second (PIO mode 4/Multi Word DMA mode 2 ) 33.3MB/second (Ultra DMA mode 2) |
| Random Access Time | 115 milliseconds average |
| Data Buffer | 128 KB |
| Loading Mechanism | Drawer |
| Ambient Temperature | Operating: 5 - 55°C Non-Operating: -20 - 60°C |
| Relative Humidity | Operating: 8 - 80%(non-condensing) Non-Operating: 5 - 95% (non-condensing) |
| Vibration | Operating: 0.3G or less (5 - 500Hz, Horizontal operation) 0.2G or less(5 - 500Hz, Vertical operation) Non-Operating: 2G or less (5 - 500 Hz) |
| Shock | Operating: 7G or less (half-sine wave, 11 msec.) (Horizontal operation) 5G or less (half-sine wave, 11 msec.) (Vertical operation) Non-Operating: 60G or less (half-sine wave, 11msec.) 200G or less (half-sine wave, 2msec.) |
| Power Requirements | DC+5V +5° 15mA typical (standby mode) 700mA typical (sequential read) |
| MTBF | 60,000 POH or more (10° duty) |
| Safety Standard | Approved by UL, CSA, TUV, CE |
| Dimensions (W x H X D) | 128 × 12.7 × 129.4 millimeters |
| Weight | 165 grams |
Floppy Drive Specifications:
| Data Transfer Rate (kbits/s) | 500/250 |
| Rotation Speed (rpm) | 360/300 |
| Track/Disk | 160 |
| Track Density ( tpi ) | 135 |
| Number of Cylinders | 80 |
| Average Access Time (in milliseconds) | 94 |
| Track to Track Time (msec.) | 3 |
| Settling Time (msec.) | 15 |
| Recording method | FM or MFM |
| Media | 3-1/2 inch micro floppy disk High density (2HD) or double density (2DD) |
| Starting Time | 480 msec. or less |
| MTBF | More than 30,000 hours |
| Error Rate | Soft read error: less than 109-bit Hard read error: less than 1012-bit Seek error: less than 106-bit |
| Safety Standard | Complies with UL, CSA, TUV |
| Power Requirements | DC+5V +10% |
| Power Consumption | 15-mW typical (standby) 1.15-W typical (operating) |
| Dimensions (W x D X H) | 96 × 12.7 × 126-mm |
| Weight | 157-g typical |
