MCP73PV MS-7399 | Gateway Acer 4006273R Motherboard

Gateway Acer 4006273R Desktop Motherboard. Gateway Acer meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

Gateway Acer Part Number: 4006273R
Compatible Part Numbers: MCP73PV MS-7399
Compatible Models: Gateway Acer T5254 GT4230M GT5678 GT5685E M3640 M3641 M5640 M5641 Series

Features:

NVIDIA MCP73PV chipset
Supports the following Intel® processors:
- Wolfdale
- Yorkfield
- Core™2 Quad
- Core2 Duo
- Pentium® Dual Core
- Pentium
- Celeron®
Supports 533/800/1066/1333 MHz front side bus speeds
Two DDR2 memory slots support 533/667/800 MHz modules
10/100/1000 fast Ethernet LAN
Four SATA connections
Supports RAID 0/ RAID 1 or RAID 5 mode
Supports HDMI

Specifications:

Processor Support	Supports the following Intel processors: Wolfdale Yorkfield Core™2 Quad Core2 Duo Pentium® Dual Core Pentium Celeron®
Supported Front Side Bus	533 / 800 / 1066 / 1333 MHz
Chipset	NVIDIA MCP73PV
Memory Support	DDR2 533 / 667 / 800 SDRAM (240-pin/ non-ECC) Two DDR2 slots Maximum memory: 4 GB
Network Support	Giga LAN 10/100/1000 fast Ethernet by Realtek RTL 8211BL
Audio	Controlled by Realtek ALC888S Supports 7.1 channels audio out Compliant with Azalia Spec
Internal Connections	One IDE connector - Supports Ultra DMA 66/100/133, PIO and Bus Master operation mode Four SATA connectors - Support storage and data transfers at up to 300 MB/s One floppy disk driver connector Three USB 2.0 connectors Two SPDIF-Out connector One front panel audio connector

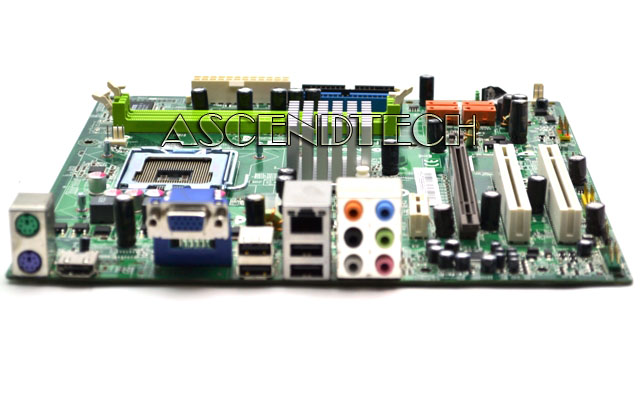

Back Panel Connectors	One PS/2 mouse port One PS/2 keyboard port One VGA port One HDMI port Four USB 2.0 Ports One LAN jack Six audio jacks
Add-In Card Slots	One PCI Express ×16 slot One PCI Express ×1 slot Two PCI slots, support 3.3 V / 5 V PCI bus interface
Form Factor	Micro-ATX (24.4 cm × 24.4 cm)

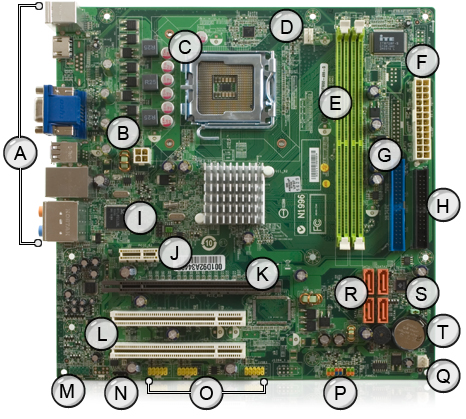

A	Rear panel ports	K	PCI Express x16 connector
B	Processor core power connector	L	PCI conventional connectors
C	CPU socket	M	Front audio connector
D	CPU fan connector	N	SPDIF Out connector
E	Memory slots	O	USB connectors
F	Main power connector	P	Front panel connector
G	Parallel ATA IDE connector	Q	System fan connector
H	Floppy disk drive cnnector	R	SATA connectors
I	Front panel connector	S	Clear CMOS jumper
J	PCI Express x1 connector	T	Battery

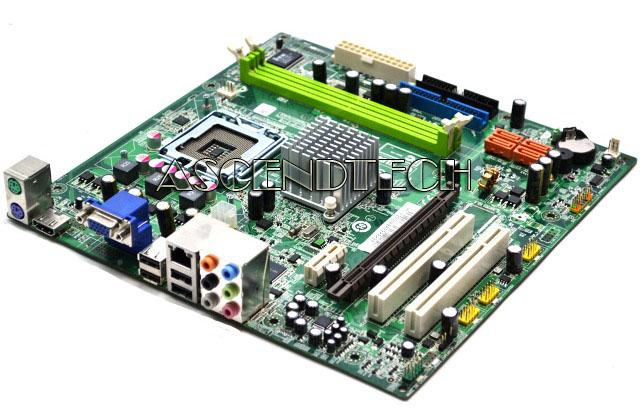

Gateway Acer 4006273R Motherboard
