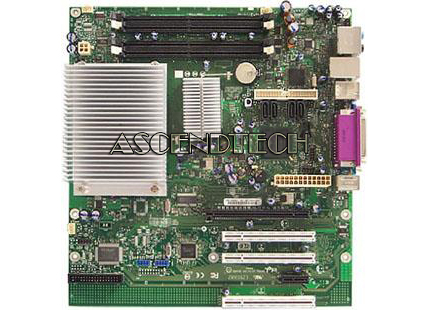

103938 WMEC99325-206 4006124R | Gateway Big Lake Motherboard 4006124R

Gateway Big Lake Motherboard 4006124R. Gateway motherboard raises the bar of PC industry and deliver a full-value, high-performance solution for today's most demanding tasks.

Product: Motherboard Only, No Processor Or Heatsink

Please click here to download the latest drivers!

Part Numbers: 103938 4006124R WMEC99325-206 WMEOEMD945GBIG1
Compatible with Gateway Desktop Models: FX400MC FX400X FX400S FX400XL

Features:

Intel 945G chipset with ICH7R
Supports Intel Pentium® 4 processors
- LGA775 socket
- 1066, 800, or 533 MHz system bus
Memory support for DDR2 667 or DDR2 533 MHz DIMMs, expandable up to 4 GB
Intel GMA950 onboard graphics subsystem
Intel High Definition Audio 8-channel (7.1) subsystem
LAN - Broadcom 5752 GbE PCIe controller with integrated Trusted Platform Module (TPM) 1.2
Three PCI, one ×16 PCI Express, and one ×1 PCI Express add-in card slots

Specifications:

Form Factor	BTX (11.2 × 10.5 inches)
Chipset	Intel 945G chipset with ICH7R
Processor Support	Intel Pentium 4 processor LGA775 socket 1066, 800, or 533 MHz system bus
Firmware Hub	8 MB
Memory	Four 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets DDR2 667 or DDR2 533 MHz DIMMs Expandable up to 4 GB total memory
Video	Intel GMA950 onboard graphics subsystem
Audio	Intel High Definition Audio subsystem consisting of: 8-channel (7.1) audio subsystem with five analog audio outputs and one S/PDIF optical digital audio output using the Sigmatel 9223 audio codec
Add-in Card Slots	One ×16 PCI Express One ×1 PCI Express Three PCI
Peripheral Interfaces	PS/2 keyboard port PS/2 mouse port Eight USB 2.0 ports (four on rear panel, four internal) Three IEEE-1394a connectors (one on rear panel, two for front-panel connectors) One serial port One parallel port Four Serial ATA interfaces One Parallel ATA IDE interface with UDMA 33, ATA-66/100 support One floppy disk drive interface
LAN Support	Broadcom 5752 GbE PCIe controller with integrated Trusted Platform Module (TPM) 1.2
Hardware Monitor Subsystem	Hardware monitoring and fan control ASIC Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Three fan connectors Three fan sense inputs used to monitor fan activity Fan speed control

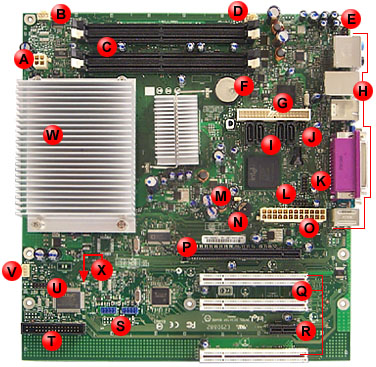

Item	Description	Item	Description
A	Processor core power connector	B	Processor fan connector
C	Memory slots	D	Rear chassis fan connector
E	Front panel audio connector	F	Battery
G	Parallel ATA IDE connector	H	Rear panel ports
I	Serial ATA connectors	J	Intrusion switch connector
K	Front panel USB connector	L	Front panel USB connector
M	BIOS configuration jumper	N	Speaker
O	ATX main power connector	P	PCI Express x16 connector
Q	PCI connectors	R	PCI Express x1 connector
S	Front panel IEEE-1394a connectors	T	Floppy disk drive connector
U	Front panel connector	V	Front chassis fan connector
W	Processor socket	X	Standby power indicator LED
