Gateway C51PVGM-GB Motherboard 4006136R

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Gateway C51pvgm-Gb Motherboard 4006136R
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB64GAT4006136R
Brand Gateway
Model 4006136R
Category Amd Socket Am2+ Am3 Motherboards

Description

Gateway C51PVGM-GB Motherboard 4006136R. Gateway Motherboard Raises The Bar Of PC Industry And Deliver A Full-value, High-performance Solution For Today's Most Demanding Tasks.

Features:

  • NVIDIA C51PV / C51G chipset
  • Four DDR2 memory slots support up to 4 GB RAM
  • Four add-in card slots:
    • One PCI Express ×16
    • One PCI Express ×1
    • Two PCI 2.2 conventional

Download Drivers Here

Specifications:

Chipset
  • North bridge: C51PVG
  • South bridge: MCP51
    • CPU
  • Front side bus speed: 2000 MT/S
  • Socket type: AM2
    • Memory SupportFour DDR2 DIMM sockets support 533/667/800 MHz modules
    4 GB maximum system memory
    VGA ChipsetC51PVG
    LAN ChipsetAC131
    Audio ChipsetALC883 8-channel audio
    USB 2.0 Support8 total connections
    • Two internal connectors supporting 2 connections each
    • Four USB ports on the rear panel
    IEEE 1394A ChipsetVT6308
    Super I/O ChipsetIT8716
    Add-In Card Slots
  • One PCI Express ×16
  • One PCI Express ×1
  • Two PCI conventional
    • Internal Connectors
  • One Primary IDE ATA 133 connector
  • One secondary IDE ATA 133 connector
  • Four serial ATA (SATA) connectors
  • One floppy disk drive connector
  • One ATX 12V main power connector (24-pin)
  • One AUDIO IN FOR CD connector
  • One CPU FAN connector (3-pin)
  • One CAS FAN connector (3-pin)
  • One SPDIFO connector (not used by Gateway®)
  • One front audio connector
    • Rear Panel I/O Ports
  • One port
  • One PS/2 mouse port
  • One PS/2 keyboard port
  • One parallel port
  • One serial port
  • One VGA monitor port
  • Four USB 2.0 ports
  • One network (LAN) port
  • Six audio jacks:
    • Center/subwoofer jack
    • Rear speaker jack
    • Side speaker jack
    • Line in jack
    • Line out/front speakers jack
    • Microphone jack

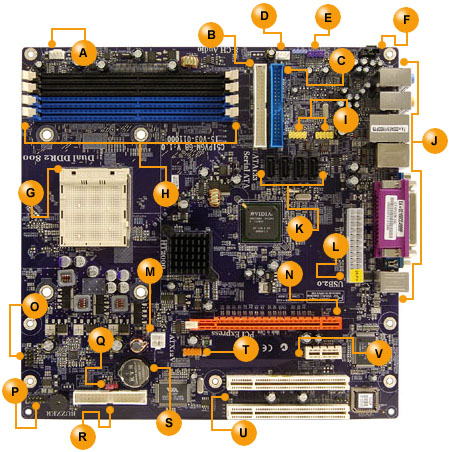

    • ACPU fan connectorLMain power connector
    BSecondary IDE connectorMAuxiliary 12V ATX connector
    CPrimary IDE connectorNPCI Express x16 connector
    DSystem fan connectorOFront panel connector
    EFront audio connectorPCOM2 serial connector
    FCD-In connectorQClear CMOS jumper
    GCPU socketRFloppy disk drive connector
    HMemory slotsSBattery
    IUSB 2.0 connectorsTIEEE 1394 connector
    JRear panel portsUPCI conventional connectors
    KSATA connectorsVPCI Express x1 connector
