Gateway E-2600 MS-7248P mBTX Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

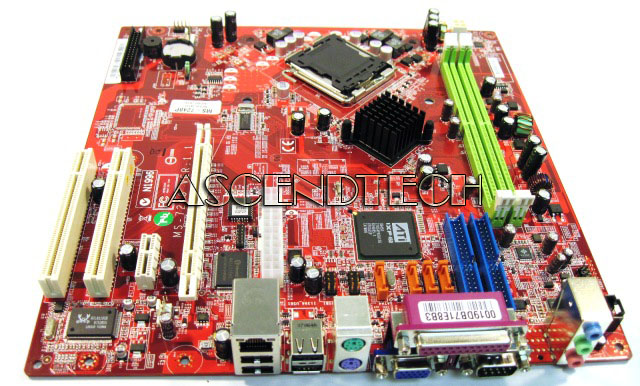

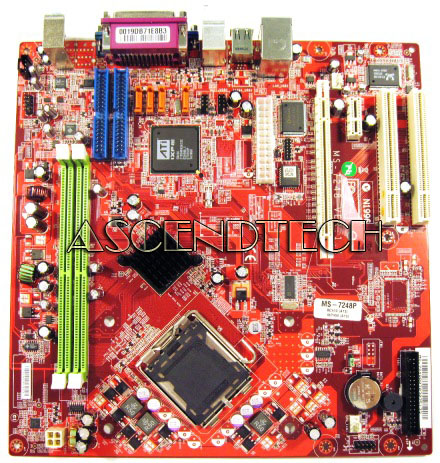

Gateway E-2600 Ms-7248P Mbtx Motherboard. Model: 4006118R 4006167R
  Enlarge
Gateway E-2600 Ms-7248P Mbtx Motherboard. Model: 4006118R 4006167R
Gateway E-2600 Ms-7248P Mbtx Motherboard. Model: 4006118R 4006167R
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4GATW4006167R
Brand Gateway
Model 4006118R 4006167R
Category Intel Lga775 Motherboards

Description

Gateway E-2600 Desktop Series MS-7248P ATI Xpress Micro BTX Motherboard. Gateway meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

Gateway Part Number: MS-7248P
Compatible Part Numbers: 4006118R 4006167R WMEMS-7248-030 WMEMS-7248P 2527848R 2527849R 2527850R 2527851R 2527852R 2527853R 2527854R 2527855R 2527856R 2527857R 2527858R 2527859R 2527941R 2527942R 2527943R 2527944R 2527945R 2527946R 2527947R 2527948R 2527949R 2527950R 2527951R 2527952R 2528110R 2528118R
Compatible Models: Gateway E-2600D E-2600D SB E-2600S E-2600S SB Desktop Computer Series





Specifications:

Form Factor

Micro BTX

Dimensions

10.5 x 10.4 inches

Chipset

MCH (Northbridge) ATI RC410 Rev. A13
ICH (Southbridge) ATI SB450 Rev. A13

Processor (CPU) Support

Intel® Pentium® 4 Pentium D or Celeron® D Processor

Front Side Bus

533 MHz (Celeron D)
800 MHz (Pentium 4 or Pentium D)
Processor features (when supported by CPU):
eXecute Disable (XD) Bit
EM64T (64-bit support) Support
Intel Speed Step (EIST) Support
Hyper-Threading (HT) Support
Virtualization (VT) Support (required additional software support)
Dual Core Support

Memory Support

Two DDR2 DIMM Slots
Accept DDR2 533/667 MHz Single Channel Modules
Expandable up to 2GB
Firmware Hub
4MB LPC Flash ROM

Network Support

Integrated 10/100/1000 Realtek RTL8110S

Integrated Audio

Interface: Azalia 5.1 Channels
Model: Realtek ALC861

Serial Input / Output (SIO)

Winbond 83627 EHF

Add-in Card Slots

One PCI Express x16 (Graphics Interface)
One PCI Express x1
Two PCI Conventional

Rear Panel I/O Ports

Four USB 2.0 Ports
Two PS/2 Ports (Keyboard and Mouse)
One Parallel Port
One Serial Port
One VGA Monitor Port
One RJ-45 LAN Port
Three Analog Audio Jacks

Internal Headers

Two 2-Port USB 2.0 Headers (2 x 5)
Front Panel Audio Header (2 x 5 Mic / Headphone)
Front Panel Header (2 x 5)
Chassis Power LED Header (1 x 3)
Floppy Disk Drive Connector
Primary IDE Connector
Secondary IDE Connector
Four Serial ATA Connectors
Two ATAPI Headers
Clear CMOS Jumper
Main Power Connector 24-pin (2 x 12)
Auxiliary 12V CPU Power Connector 4-Pin (2 x 2)
CPU Fan 4-pin Connector
Rear Fan 4-pin Connector
