4006123R WMEOEMD945GPBG1 | Gateway E-4500S E-4500S Sb Motherboard

Gateway Putton Bay Motherboard WMEOEMD945GPBG1. This Motherboard Supports Intel processors in an LGA775 package and System bus support of 1066, 800, or 533 MHz.

Part Numbers: 4006123R WMEOEMD945GPBG1

Gateway Desktop Computer Models: E-4500D E-4500D SB E-4500S E-4500S SB S-5200S S-5200D

Features:

Intel 945G chipset
Supports Intel Pentium® 4 processors
- LGA775 socket
- 1066, 800, or 533 MHz system bus
Memory support for DDR2 667, or DDR2 533 DIMMs, expandable up to 4 GB
Intel GMA950 onboard graphics subsystem
Intel High Definition Audio 8-channel (7.1) subsystem
LAN - Broadcom 5752 GbE PCIe controller with integrated Trusted Platform Module (TPM) 1.2

Specifications:

Form Factor	microBTX Form Factor; 10.40 × 10.50 inches (264.16 × 266.70 millimeters)
Chipset	Intel 945G chipset, consisting of: Intel 82945G Graphics Memory Controller Hub (GMCH) Intel 82801G I/O Controller Hub (ICH7)
Processor Support	Intel Pentium® 4 processor LGA775 socket 1066, 800, or 533 MHz system bus
Memory	Four 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets DDR2 667 or DDR2 533 MHz DIMMs Expandable up to 4 GB total memory
Video	Intel GMA950 onboard graphics subsystem
Audio	Integrated Intel High Definition Audio subsystem using the Sigmatel STAC9220 audio codec
Add-in Card Slots	One ×16 PCI Express One ×1 PCI Express Two PCI conventional
Peripheral Interfaces	PS/2 keyboard port PS/2 mouse port Eight USB 2.0 ports (four on rear panel, four internal) One serial port One parallel port Four Serial ATA interfaces One Parallel ATA IDE interface with UDMA 33, ATA-66/100 support One floppy disk drive interface
LAN Support	Broadcom 5752 GbE PCIe controller with integrated Trusted Platform Module (TPM) 1.2
Hardware Monitor Subsystem	Hardware monitoring and fan control ASIC Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Three fan connectors Three fan sense inputs used to monitor fan activity Fan speed control

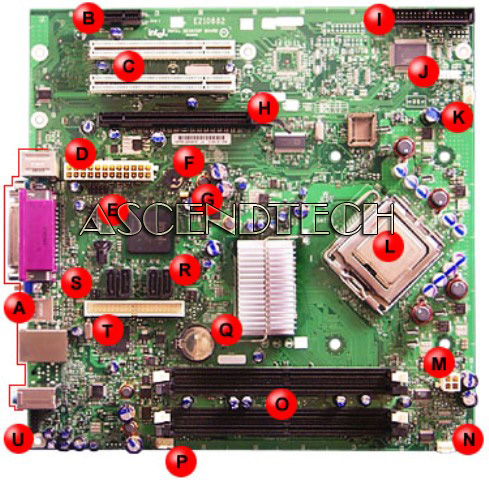

A	Rear panel ports	B	PCI Express ×1 connector
C	Conventional PCI connectors	D	ATX main power connector
E	Front panel USB connectors	F	Speaker
G	BIOS configuration jumper	H	PCI Express ×16 connector
I	Floppy disk drive connector	J	Front panel connector
K	Front chassis fan connector	L	Processor socket
M	Processor core power connector	N	Processor fan connector
O	Memory slots	P	Rear chassis fan connector
Q	Battery	R	Serial ATA connectors
S	Intrusion switch connector	T	Parallel ATA IDE connector
U	Front panel audio connector
