Gateway El Paso 2 Motherboard 4000777

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

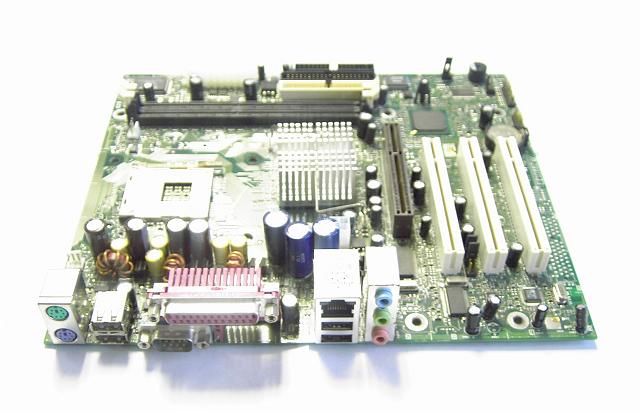

Gateway El Paso 2 Motherboard 4000777
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4GAT4000777
Brand Gateway
Model 4000777
Category Intel P4 / Celeron 478-Pin Motherboards

Description

Gateway El Paso 2 Motherboard 4000777. This Motherboard Support for an Intel Pentium 4 processor in a PGA478 socket. Gateway meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

Specifications:

Form FactormicroATX (9.60 inches by 8.20 inches)
Processor
  • Support for an Intel® Pentium® 4 processor in a PGA478 socket
  • 400 MHz system bus
    • Memory
  • Two 184-pin DDR SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for single-sided or double-sided DIMMs (DDR 200 and DDR 266)
  • Support for up to 2 GB system memory
    NOTE: The D845PT boards have been designed to support DIMMs based on 512 Mbit technology for a maximum onboard capacity of up to 2 GB, but this technology has not been validated on this board.
    • ChipsetIntel® 845 Chipset, consisting of:

  • Intel® 82845 Memory Controller Hub (MCH)
  • Intel® 82801BA I/O Controller Hub (ICH2)
  • Intel® 82802AB 4 Mbit Firmware Hub (FWH)
    • VideoAGP connector supporting 1.5 V 4X AGP cards
    AudioAudio subsystem for AC ‘97 processing using the Analog Devices AD1885 codec
    I/O ControlSMSC LPC47M142 LPC Bus I/O controller
    Peripheral
    Interfaces
  • USB ports
  • Two serial ports
  • One parallel port
  • Two IDE interfaces with UDMA 33, ATA-66/100 support
  • One diskette drive interface
  • PS/2 keyboard and mouse ports
  • Three fan connectors
    • BIOS
  • Intel/AMI BIOS (resident in the Intel 82802AB 4 Mbit FWH)
  • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play,
    and SMBIOS
    • Instantly Available
    PC Technology
  • Support for PCI Local Bus Specification Revision 2.2
  • Suspend to RAM support
  • Wake on PCI, CNR, RS-232, front panel, PS/2 devices, and USB ports
    • Expansion
    Capabilities
  • Three PCI bus add-in card connectors (SMBus routed to PCI bus
    connector 1)
    • Hardware Monitor
    Subsystem
  • Voltage sense to detect out of range power supply voltages
  • Thermal sense to detect out of range thermal values
  • Two fan sense inputs used to monitor fan activity
