Gateway Emachines 945GCT-M3 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

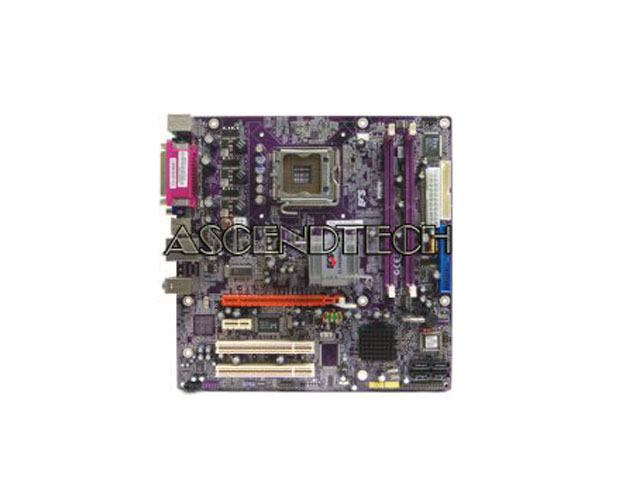

Gateway Emachines 945Gct-M3 Motherboard. Model: 4006188R W3622 W3629
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4GW945GCTM3
Brand Gateway
Model 4006188R W3622 W3629
Category Intel Lga775 Motherboards

Description

Gateway / Emachines ECS 945GCT-M3 Motherboard. Intel® chipset consisting of the following: Intel Northbridge: NG82945GC , Intel Southbridge: FW82801GB , Support for Intel LGA775 processors with host bus speeds of 533 or 800 MT/s , Two memory slots support 240 Pin DDR2 400/533 MHz dual-channel modules , Three add-in card slots: One PCI Express ×16 , One PCI Express ×1 , Two PCI Slots , Integrated REALTEK RTL8100C LAN

Manufactured by ECS for Gateway / Emachines
Gateway / Emachines Part# 4006188R
Gateway / Emachines Compatible Desktops: W3622 W3629 H5237

FeatureSpecification
Form Factor
  • ATX (244 × 244 mm)
  • Four Layer printed circuit board (PCB)
    • Processor Support
  • Intel® Prescott, Tejas, and Conroe processors
  • Core Speed/Host Bus Speed 533 MT/s or 800 MT/s
  • LGA775 pins socket
    • Chipset
  • Intel Northbridge: NG82945GC
  • Intel Southbridge: FW82801GB
    • Other Chipsets
  • LPC ITE8712
  • Azalia Audio CODEC (ALC883)
  • LAN Realtek 8100C (10/100 M LAN)
    • Memory SupportTwo DIMM slots support the following:
    • DRAM Type 1.8V DIMM DDR DRAM configurations
    • Two 64-bit DDR data channels
    • Slot type: 1.8V un-buffered 240 pins DDR2 DIMM socket
    • Supports DDR2 400/533 MHz modules
    • Supports maximum memory bandwidth of 10.7 GB/s in dual-channel interleaved mode
    • Supports 256 Mb/512 Mb/1 GB DDR technologies for x8 and x16 non-ECC DDR devices
    • Registered DIMMs not supported
    • Maximum memory size 2 GB
    Bus Architecture
  • One PCI Express ×16 slot
  • One PCI Express ×1 slot
  • Two PCI conventional slots
  • Integrated REALTEK RTL8100C LAN
    • RTC and Battery
  • Intel FW82801GB Includes 256 Bytes CMOS SRAM
  • With CMOS SRAM hardware clear jumper
    • Peripheral Connectors
  • One "Ultra DMA/100/66/33" IDE
  • Four Serial ATA
  • One floppy disk drive
  • One Bi-directional/EPP/ECP printer
  • One IRDA infrared interface
  • Eight USB connections (four rear panel ports, four internal connections)
  • Two IEEE 1394 (one rear panel port, one internal connection)
    • CPU Regulator
  • On-Board Switching Power Controller - Support "VRD 10.1" Voltage Identification Codes
  • Voltage from 0.8375 V ~ 1.6 V in 12.5 mv steps

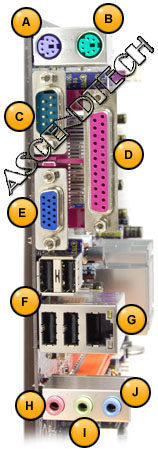

    • ItemDescriptionItemDescription
    APS/2 keyboard portFFour USB 2.0 ports
    BPS/2 mouse portGNetwork port
    CSerial portHMicrophone jack
    DParallel portILine out jack
    EVGA monitor portJLine in jack

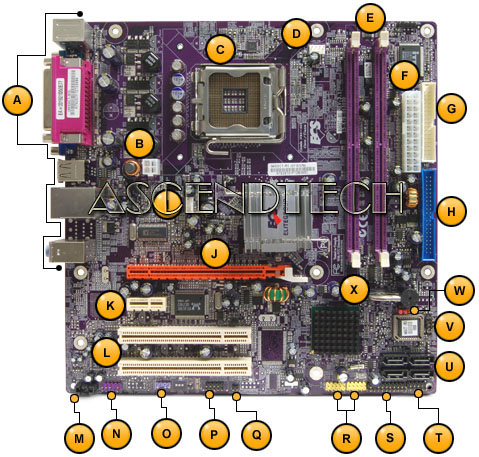

    ItemDescriptionItemDescription
    ARear panel portsMAux-In connector
    BProcessor core power connector NFront panel audio connector
    CProcessor socketOSPDIF-Out connector
    DCPU fan connectorPCOM2 serial connector
    EMemory slotsQBIOS protection jumper
    FATX power connectorRUSB 2.0 connectors
    GFloppy disk drive connectorSJLPC connector
    HParallel ATA IDE connectorTFront panel connector
    ISystem fan connectorUSATA connectors
    JPCI Express x16 connectorVEL connector
    KPCI Express x1 connectorWClear CMOS jumper
    LPCI conventional connectors XBattery
