Gateway Emachines C51PVGM-M Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

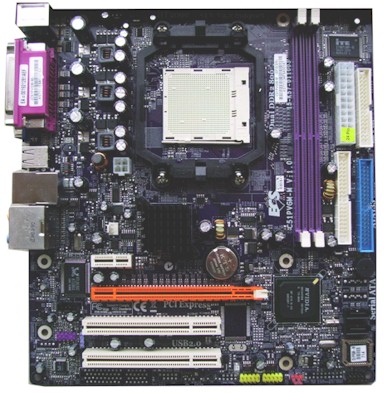

Gateway Emachines C51pvgm-M Motherboard. Model: 4006138R
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB64GWC51PVGMM
Brand Gateway
Model 4006138R
Category Amd Socket Am2+ Am3 Motherboards

Description

Gateway / Emachines ECS C51PVGM-M Motherboard. Featuring nVidia GeForce 6150 AM2 ATX Board. NVIDIA C51PV / C51G chipset, support for AMD AM2 Athlon 64/Athlon 64 FX processors, Two DDR2 667/800 memory slots support up to 2 GB of RAM, Integrated Realtek 8100C 10/100 Ethernet LAN, Integrated Realtek ALC883 5.1 High Definition audio, Integrated NVIDIA GeForce 6150 graphics, Four add-in card slots: Two PCI conventional, One ×16 PCI Express, One ×1 PCI Express

Manufactured by ECS for Gateway / Emachines
Gateway / Emachines Part# 4006138R 1009518 1014568R 1014565R
Gateway / Emachines Compatible Desktops: GT5458E GT5475E GT5473E T6540 T6542

FeatureSpecification
Chipset
  • North bridge: C51PVG
  • South bridge: MCP51G
    • CPU
  • Front side bus speed: 2000 MT/S
  • Socket type: AM2
    • Memory SupportTwo DDR2 DIMM sockets support 667/800 MHz modules
    2 GB maximum system memory
    Video ChipsetIntegrated NVIDIA GeForce® 6150 graphics
    LAN Chipset8100C
    Audio ChipsetALC883 8-channel audio
    USB 2.0 SupportEight total connections
    • Two internal connectors supporting 2 connections each
    • Four USB ports on the rear panel
    Super I/O ChipsetITE8716
    Add-In Card Slots
  • One PCI Express ×16
  • One PCI Express ×1
  • Two PCI conventional
    • Internal Connectors
  • One primary IDE ATA 133 connector
  • One secondary IDE ATA 133 connector
  • Two serial ATA (SATA) connectors
  • One floppy disk drive connector
  • One ATX 12V main power connector (24-pin)
  • One Audio In For CD connector
  • One CPU fan connector (3-pin)
  • One case fan connector (3-pin)
  • One SPDIFO connector (not used by Gateway®)
  • One front audio connector
    • Rear Panel I/O Ports
  • One PS/2 mouse port
  • One PS/2 keyboard port
  • One parallel port
  • One serial port
  • One VGA monitor port
  • Four USB 2.0 ports
  • One network (LAN) port
  • Six audio jacks:
    • Center/subwoofer jack
    • Rear speaker jack
    • Side speaker jack
    • Line in jack
    • Line out/front speakers jack
    • Microphone jack

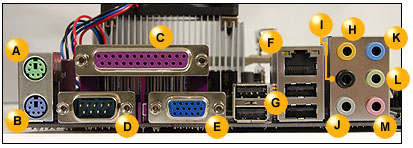

    • ItemDescriptionItemDescription
    APS/2 mouse portHCenter/subwoofer jack
    BPS/2 keyboard portIRear speaker jack
    CParallel portJSide speaker jack
    DSerial portKLine in jack
    EVGA monitor portLLine out/front speakers jack
    FNetwork portMMicrophone jack
    GFour USB 2.0 ports

    Please note, the heatsink & fan are not included and pictured for description purposes only!

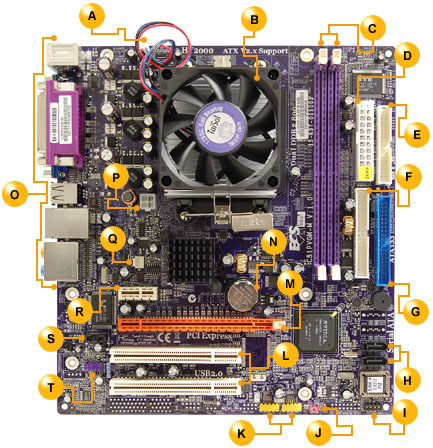

    ItemDescriptionItemDescription
    ACPU fan connectorKUSB 2.0 connectors
    BCPU socketLPCI conventional connectors
    CMemory slotsMPCI Express x16 connector
    DMain power connectorNBattery
    EFloppy disk drive connectorORear panel ports
    FSecondary IDE connectorPAuxiliary 12V ATX connector
    GPrimary IDE connectorQChassis fan connector
    HSATA connectorsRPCI Express x1 connector
    IFront panel connectorSCD-In connector
    JClear CMOS jumperTFront audio connector
