Gateway Emachines MCP61PM-AM 2 x DIMM
Description

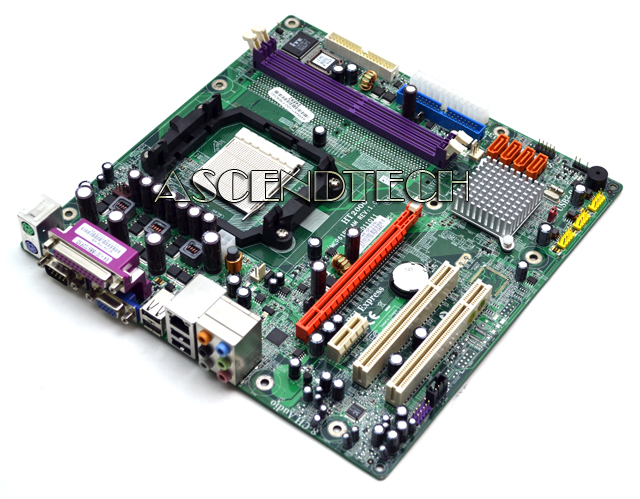

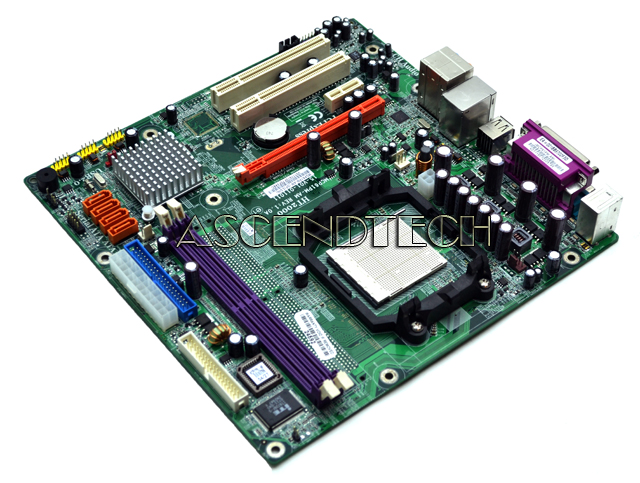

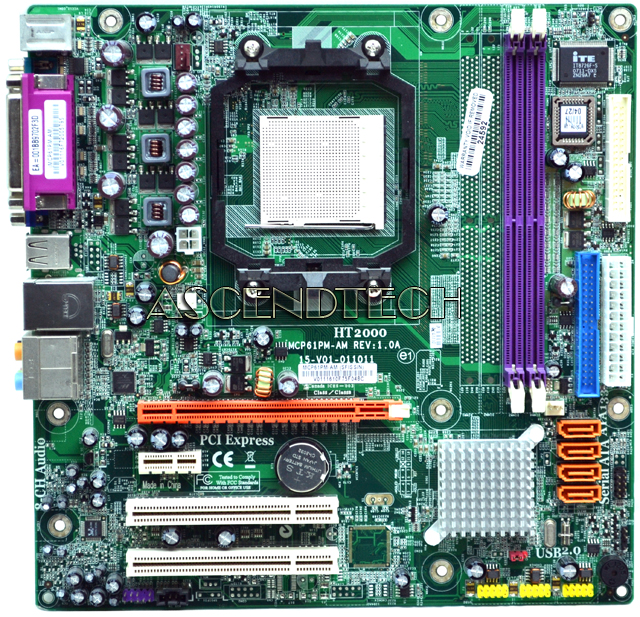

Gateway / Emachines ECS MCP61PM-AM Motherboard. Featuring NVIDIA MCP61P/MCP61S chipset, AMD AM2 Socket K8 Athlon™ 64 X2, Athlon™ 64, Athlon™ FX, and Sempron™ processors, Two DIMM slots support for DDR2 800/667/533/400 MHz modules, Two PCI Conventional connector, One PCI Express ×16, One PCI Express ×1, Four Serial ATA (SATA) connectors, One 40-pin IDE connector, One Floppy disk drive connector, 8-channel (7.1) audio subsystem, Integrated 10/100 Ethernet LAN, Four external USB 2.0 ports with three additional internal headers providing 10 possible USB 2.0 ports
Manufactured by ECS for Gateway / Emachines
Gateway / Emachines Part# 4006202R 4006203R 4006157R 2900950 1014948R 1014851R 1014725R 1009554R 1014727R
Gateway / Emachines Compatible Desktops: GT3252m GT5212j GT5224j GT5477E GT5482E GT5637E GT5644E GT5648E GT5654 GT5656 GM5472 GM5474 GM5639E GM5470E GT5432 GT5435E GT5422E GT5426E GT5418E GT5414E T3626 T5062 T5234 W3622
| Feature | Specification |
|---|---|
| Form Factor | Micro ATX (244 × 230 mm) |
| Chipset | MCP61P/MCP61S |
| Processor Support | |
| Memory Support | |
| Video Chipset | MCP61S |
| Audio Codec | AC'97 ALC888 7.1 |
| LAN Support | Integrated MARVELL 88E8056 10/100 Ethernet |
| IEEE 1394 Chipset | TI TSB43AB23 |
| Super I/O Chipset | ITE 8726F |
| Add-in Card Slots | |
| Rear Panel Ports | |
| Internal Interfaces |
| Item | Description | Item | Description |
|---|---|---|---|
| A | PS/2 keyboard port | H | Network port |
| B | PS/2 mouse port | I | Side speaker jack |
| C | Serial port | J | Rear speaker jack |
| D | Parallel port | K | Center/subwoofer jack |
| E | VGA monitor port | L | Microphone jack |
| F | Four USB 2.0 ports | M | Line out/front speakers jack |
| N | Line in jack | ||
