Gateway GM5076E GM5091E Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Gateway Gm5076e Gm5091e Motherboard. Model: 4006106R 105693

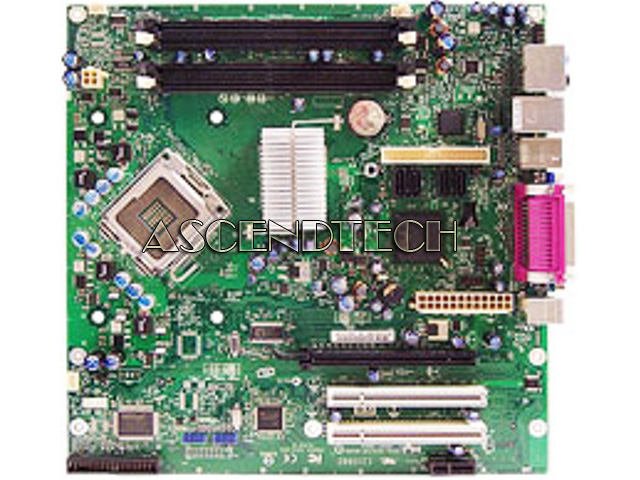

  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4GAT4006106RF
Brand Gateway
Model 4006106R 105693
Category Intel Lga775 Motherboards

Description

Gateway Cortez G3 Motherboard 4006106R. This Motherboard Supports Intel Pentium® 4 and Celeron® D processors and Pentium D dual core processors. Memory support for DDR2 667/533/400 MHz DIMMs, expandable up to 4 GB.

Part Numbers:
105693 4006106 4006106R WMED32112-502

Compatible With Models:
DX300MC DX300QS DX300S DX300X GM5048 GM5066E GM5076E GM5091E GM5091H GM5259E GT3045M GT3210M GT3214M GT3216M GT3216M GT3218M GT3220M GT5012 GT5012H GT5014 GT5016e GT50616H GT5018E GT5020J GT5026E GT5026J GT5036J GT5036J GT5040 GT5040H GT5040H GT5042 GT5042J GT5044J GT5052B GT5054B GT5064 GT5068E GT5224 GT5263E GT3035m GT3212m GT5012b GT5030j GT5038j

Features:

  • Intel 945G chipset
  • Supports Intel Pentium® 4 and Celeron® D processors and Pentium D dual core processors
    • LGA775 socket
    • 1066, 800, or 533 MHz system bus
  • Memory support for DDR2 667/533/400 MHz DIMMs, expandable up to 4 GB
  • Integrated Intel Graphics Media Accelerator 900
  • Integrated Intel High Definition audio using Sigmatel® 9220
  • Integrated Intel 10/100 LAN
  • Two PCI conventional, one ×16 PCI Express, and one ×1 PCI Express add-in card slots

Specifications:

Form Factor
  • uBTX 4-layer
  • Dimensions: 10.4 × 10.5 inches
    • CPU SupportIntel Pentium® 4 and Celeron® D processors and Pentium D dual core processors
    • LGA775 socket
    • 1066, 800, or 533 MHz system bus
    System Bus Support1066, 800, or 533 MHz
    Memory SupportDDR2 667/533/400 MHz DIMMs, expandable up to 4 GB
    MCH (northbridge)Lakeport-G
    ICH (southbridge)ICH7-DH (EastFork Disabled)
    Firmware Hub/SPI4 Mb
    Integrated LANIntel Ekron-R 10/100
    Integrated Audio
  • Interface: Azalia
  • Model: Sigmatel 9220
    • Serial Input/Output (SIO)PA 1.6/3.0
    Add-in Card Slots
  • One PCI Express ×1
  • One PCI Express ×16
  • Two PCI Conventional
    • Rear panel I/O Ports
  • Two PS/2 (keyboard and mouse)
  • One parallel
  • One Serial
  • One VGA monitor
  • One IEEE 1394a
  • Four USB 2.0
  • One RJ-45 LAN
  • Five analog audio jacks
  • One S/PDIF digital audio out
    • Internal Headers
  • Two 2-port USB headers (2 × 5)
  • Audio header (2 × 5)
  • Two IEEE 1394a headers
  • Front panel header (2 × 5 supports power LED, power switch, hard drive LED, and reset switch)
  • Floppy disk drive connector
  • Primary IDE connector
  • Four Serial ATA (SATA) connectors
  • BIOS recovery jumper
  • Chassis intrusion connector
  • Main power connector (2 × 12)
  • 12 V CPU power connector
  • CPU fan connector
  • Front chassis fan connector
  • Rear chassis fan connector
  • One thermal sensor
