GATEWAY GM5424 GM5454E MOTHERBOARD

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMB4GAT4006159RF
BrandGateway
Model4006159R 2527838R
CategoryIntel Lga775 Motherboards

Description

Gateway Stoughton Motherboard 4006159R. Gateway Stoughton Supports Intel processors in an LGA775 package and with 1066/800/533 MHz front side bus.

Compatible Gateway Part Numbers: 2527838R 2527839R 2527840R 2527841R 2527842R 2527843R 2527844R 2527845R 2527846R 2527847R 2527895R 2527896R 2527897R 2527899R 2527900R 4006159R 4006245R

Gateway Desktop Computer Models: GT5630E GT5098j GT5096j GT5092j GT5084j GT5082j GT3234m GT3238m GT3242m GT5636E GM5410E GM5410H GM5416E GM5420 GM5424 GM5454E GM5066b GM5074b DX430B DX430S DX430X

Features:

  • Chipset consisting of an Intel® MCH G965 Northbridge and Intel® ICH ICH8-DH Southbridge
  • Supports Intel® processors in an LGA775 package and with 1066/800/533 MHz front side bus
  • Support for up to 8 GB of system memory using DDR2 667 or DDR2 533 DIMMs
  • Support for up to 4 GB of system memory using DDR2 800 DIMMs
  • One PCI Express ×16 bus add-in card connector
  • One PCI Express ×1 bus add-in card connector
  • Two PCI Conventional bus connectors
  • Intel® GMA X3000 onboard graphics
  • 8-channel (7.1) audio subsystem using the SigmaTel STAC9271D audio codec and Dolby Home Theater certification
  • Integrated LAN

Specifications:

Form FactormicroATX 9.6 inches × 9.6 inches
Processor Support
  • Intel® Core™2 Duo processor in an LGA775 socket with a 1066 or 800 MHz system bus
  • Intel® Pentium® D processor in an LGA775 socket with an 800 or 533 MHz system bus
  • Intel® Pentium® 4 processor in an LGA775 socket with an 800 or 533 MHz system bus
  • Intel® Celeron® D processor in an LGA775 socket with a 533 MHz system bus
    • Memory
  • Four 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR2 800, DDR2 667, or DDR2 533 MHz DIMMs
  • Support for up to 8 GB of system memory using DDR2 667 or DDR2 533 DIMMs
  • Support for up to 4 GB of system memory using DDR2 800 DIMMs
  • Support module sizes of 256 MB, 512 MB, 1 GB, or 2 GB
    • ChipsetIntel® G965 Express Chipset consisting of:

  • Intel® 82G965 Graphics and Memory Controller Hub (GMCH)
  • Intel® 82801HH I/O Controller Hub (ICH8DH)
    • Audio8-channel (7.1) audio subsystem using the SigmaTel STAC9271D audio codec and Dolby Home Theater certification
    Video Intel® GMA X3000 onboard graphics subsystem
    Legacy I/O ControlLegacy I/O controller for diskette drive, serial, parallel, and optional PS/2 ports USB Support for USB 2.0 devices
    Peripheral Interfaces
  • 6 external USB ports and two internal USB connectors supporting 2 connections each for a total of 10 USB connections
  • Two IEEE-1394a interfaces: one back panel connector and one front-panel header
  • Six Serial ATA IDE interfaces
  • One Parallel ATA IDE interface with UDMA 33, ATA-66/100/133 support
  • One diskette drive interface
    • LAN SupportGigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82566DC Gigabit Ethernet Controller
    BIOS
  • Intel® BIOS (resident in the SPI Flash device)
  • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
    • Instantly Available PC Technology
  • Support for PCI Local Bus Specification Revision 2.3
  • Support for PCI Express Revision 1.0a
  • Suspend to RAM support
  • Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports
  • Support for Intel® Quick Resume Technology Drivers (Intel® QRTD)
    • Expansion Capabilities
  • One PCI Express ×16 bus add-in card connector
  • One PCI Express ×1 bus add-in card connectors
  • Two PCI Conventional bus connectors
    • Hardware Monitor SubsystemIntel® Quiet System Technology implemented through the ICH8
    Manageability Engine
  • Voltage sense to detect out of range power supply voltages
  • Thermal sense to detect out of range thermal values
  • Three fan headers
  • Three fan sense inputs used to monitor fan activity

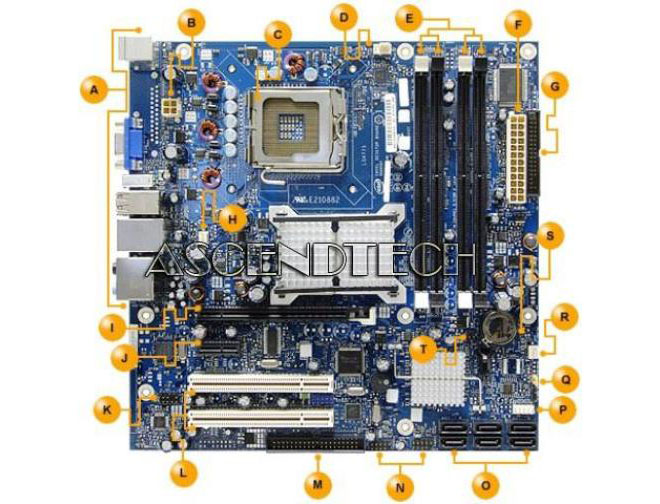

    • ARear panel portsKFront panel audio connector
    BProcessor core power connectorLPCI conventional connectors
    CProcessor socketMParallel ATA IDE interface
    DCPU fan connectorNUSB 2.0 connectors
    EMemory slotsOSATA connectors
    FATX power connectorPFront panel connector
    GFloppy disk drive connectorQBIOS configuration jumper
    HRear chassis fan connectorRFront fan connector
    IPCI Express ×16 connectorSBattery
    JPCI Express ×1 connectorTIntrusion switch connector
