Gateway GT3076m GT3231m Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

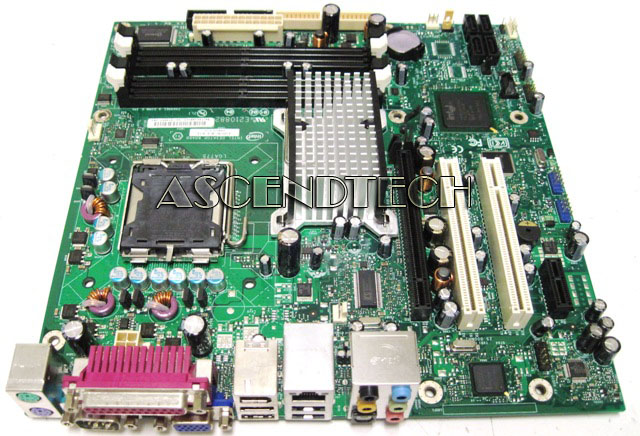

Gateway Gt3076m Gt3231m Motherboard. Model: 4006160 4006160R
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4GWCOUNCLBLF5
Brand Gateway
Model 4006160 4006160R
Category Intel Lga775 Motherboards

Description

Gateway Council Bluffs Intel 945G Viiv motherboard. Supports Intel processors in an LGA775 package and with 1066/800/533 MHz front side bus. Chipset consisting of an Intel 945G north bridge and Intel ICH7-DH south bridge. Supports up to 4 GB DDR2 667/533/400 MHz, dual channel memory modules in four DDR2 Memory slots. One PCI Express ×16, One PCI Express ×1 and two PCI conventional add-in card slots. Integrated 10/100 LAN

Manufactured by Intel D945GCFG1 for Gateway
Gateway Part# 4006160 4006160R

Replacement board for Gateway / Emachines Desktop Computer Models: GT5408 GT5438 GM5407E GM5442 GM5446E GM5457E GM5457H GM5626 GT3076m GT3231m GT3232m GT3250m GT5062b GT5072b GT5412 GT5449E GT5456H

FeatureSpecification
Form FactoruATX 9.6 × 9.6 inches
ChipsetIntel® 945G chipset consisting of:
  • MCH northbridge: Intel D945G
  • ICH southbridge: ICH7-DH
Processor SupportIntel® Pentium® 4, Pentium D, Extreme® or Celeron® D processors
  • LGA775 socket
  • 1066/800/533 MHz system bus
Memory Support
  • Four DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
  • DDR2 667, DDR2 533, DDR2 400 MHz DIMMs
  • Expandable up to 4 GB total memory
    • VideoIntegrated VGA
    AudioIntegrated high definition audio using Sigmatel 9227 codec
    LAN SupportIntegrated Intel Ekron-R 10/100 Ethernet Lan
    Add-in Card Slots
  • One ×16 PCI Express
  • One ×1 PCI Express
  • Two PCI conventional
    • Rear Panel Ports
  • PS/2 keyboard port
  • PS/2 mouse port
  • Four USB 2.0 ports
  • One IEEE-1394a connector
  • One serial port
  • One parallel port
  • One RJ-45 LAN port
  • Five analog audio jacks
  • One S/PDIF optical digital audio jack
    • Peripheral Interfaces
  • Two USB 2.0 headers (each header supports two connections for a total of four internal connections)
  • Two IEEE-1394a headers
  • Four Serial ATA interfaces (300 MB/s)
  • One Parallel ATA IDE interface
  • One floppy disk drive interface
    • Security Support
  • BIOS recovery
  • Chassis intrusion

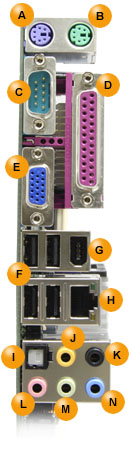

    • ItemDescriptionItemDescription
    APS/2 keyboard portHRJ-45 10/100 Mbps Ethernet LAN port
    BPS/2 mouse portIS/PDIF digital audio out
    CSerial portJCenter channel and LFE (subwoofer) / retasking jack
    DParallel portKSurround left and right / retasking jack
    EVGA monitor portLMicrophone in / retasking jack
    FFour USB 2.0 portsMLine out / retasking jack
    GIEEE 1394 portNSide surround left and right / line in / retasking jack
