1009562 1009544 | Gateway Gt5464 Gt3240m Motherboard

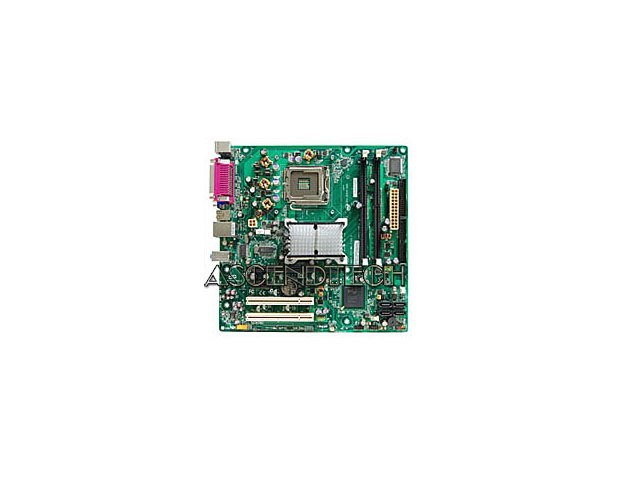

Gateway Coconut Creek Intel 945GC motherboard. Supports Intel processors in an LGA775 package and with 800/533 MHz front side bus. One PCI Express ×16, One PCI Express ×1 and two PCI conventional add-in card slots. Integrated 10/100 LAN

Manufactured by Intel D945GCCRG1 for Gateway
Gateway Part# 4006181R
Gateway / Emachines Desktop Computer Models: GT5646E GT5625E GT5624E GT5465E GT5464 GT3240m GT3082m GT3074m W3623 E4231
Gateway Desktop Computer Part#: 2900957R 1014827R 1014897R 1009575 1009562 1009544 1014854R 1009535

Feature	Specification
Form Factor	microATX: 9.60 × 9.60 inches (243.84 × 243.84 mm)
Processor Support	Intel® Core™2 Duo processor in an LGA775 socket with a 800 MHz system bus Intel® Pentium® D processor in an LGA775 socket with an 800 or 533 MHz system bus Intel® Pentium® 4 processor in an LGA775 socket with an 800 or 533 MHz system bus Intel® Celeron® D processor in an LGA775 socket with a 533 MHz system bus
Memory	Two memory slots support the following: 240-pin DDR2 533 or DDR2 400 MHz SDRAM dual inline memory modules (DIMMs) 1.8 V (only) non-ECC DIMMs with gold-plated contacts Unbuffered, single-sided or double-sided DIMMs with the following restriction: Double-sided DIMMS with x16 organization are not supported Serial Presence Detect 128 MB minimum total system memory 2 GB maximum total system memory
Chipset	Intel 945GC Chipset, consisting of: Intel 82945GC Graphics Memory Controller Hub (GMCH) Intel 82801GB I/O Controller Hub (ICH7)
Video	Intel GMA950 onboard graphics subsystem
Audio	6-channel (5.1) audio subsystem with three analog audio outputs using the Realtek ALC883 audio codec
Legacy I/O Control	Legacy I/O controller for diskette drive, serial, parallel, and PS/2 ports devices
Peripheral Interfaces	Eight USB ports One serial port One parallel port Four Serial ATA interfaces One Parallel ATA IDE interface with UDMA 33, ATA-66/100 support One diskette drive interface PS/2 keyboard and mouse ports
LAN Support	10/100 Mbits/sec LAN subsystem using the Intel 82562G Platform LAN connect (PLC) device
BIOS	Intel BIOS (resident in the SPI Flash device) Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
Add-In Card Slots	Two PCI Conventional bus connectors One PCI Express x1 bus add-in card connector One PCI Express x16 bus add-in card connector
Instantly Available PC Technology	Support for PCI Local Bus Specification Revision 2.3 Support for PCI Express Revision 1.0a Suspend to RAM support Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports
Hardware Monitor Subsystem	Hardware monitoring and fan control through the SMSC 5127 I/O controller Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Three fan headers Three fan sense inputs used to monitor fan activity Fan speed control

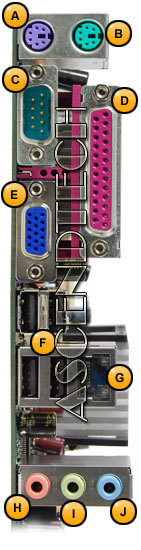

Item	Description	Item	Description
A	PS/2 keyboard port	F	Four USB 2.0 ports
B	PS/2 mouse port	G	Network port
C	Serial port	H	Microphone jack
D	Parallel port	I	Line out jack
E	VGA monitor port	J	Line in jack

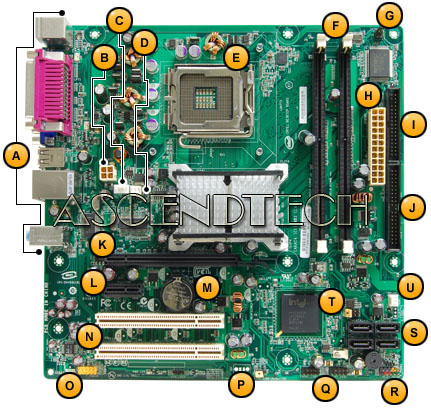

Item	Description	Item	Description
A	Rear panel ports	L	PCI Express ×1 connector
B	Processor core power connector	M	Battery
C	CPU fan connector	N	PCI conventional connectors
D	Rear chassis fan connector	O	Front panel audio connector
E	Processor socket	P	BIOS configuration jumper
F	Memory slots	Q	USB 2.0 connectors
G	Intrusion switch header	R	Front panel connector
H	ATX power connector	S	SATA connectors
I	Floppy disk drive connector	T	E1 jumper
J	Parallel ATA IDE connector	U	Front chassis fan connector
K	PCI Express ×16 connector
