Gateway GT5634H 945GCT-NM Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Gateway Gt5634h 945Gct-Nm Motherboard. Model: 4006244R 945Gct-Nm
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4GATW4006244R
Brand Gateway
Model 4006244R 945GCT-NM
Category Intel Lga775 Motherboards

Description

Gateway GT5634H 945GCT-NM Motherboard raises the bar of PC industry and deliver a full-value, high-performance solution for today's most demanding tasks.

Part Number: 4006244R
Compatible Models: Gateway GT5634H GT5622 GM5661E Series Desktop Systems

Features:

  • Intel® 945G Chipset
  • Support for Intel® processors in a LGA775 package
  • Four DIMM slots support for DDR2 400, 533 or 667 MHz modules
  • One PCI Express ×16
  • One PCI Express ×1
  • Two PCI Conventional connectors
  • Four Serial ATA (SATA) connectors
  • 8-channel (7.1) audio subsystem
  • Integrated 10/100 Ethernet LAN
  • Four external USB 2.0 ports with two additional internal headers providing eight possible USB 2.0 ports

Specifications:

Form Factor
  • uATX (244 × 244 mm)
  • Four Layer printed circuit board (PCB)
    • Processor Support
  • Intel® Prescott and Tejas processors
  • Core Speed/Host Bus Speed 533, 800, 1066 MT/s (133, 200, 266 MHz Core Clock)
  • LGA775 pins socket
    • Chipset
  • Intel Northbridge: NG82945G
  • Intel Southbridge: FW82801GB
    • Other Chipsets
  • LPC W83627DHG
  • Azalia Audio CODEC (ALC888)
  • LAN: Realtek 8111B (10/100 MB LAN)
    • Memory SupportFour DIMM slots support the following:
    • DRAM Type 1.8V DIMM DDR DRAM configurations
    • Two 64-bit DDR data channels
    • Slot type: 1.8V un-buffered 240 pins DDR2 DIMM socket
    • Supports DDR2 400/533/667 MHz modules
    • Supports maximum memory bandwidth of 10.7 GB/s in dual-channel interleaved mode
    • Supports 256 MB/512 MB/1 GB DDR technologies for ×8 and ×16 non-ECC DDR devices
    • Registered DIMMs not supported
    • Maximum memory size 4 GB
    Bus Architecture
  • One PCI Express ×16 slot
  • One PCI Express ×1 slot
  • Two PCI conventional slots
  • Integrated REALTEK RTL8111B LAN
    • RTC and Battery
  • Intel FW82801GB Includes 256 Bytes CMOS SRAM
  • With CMOS SRAM hardware clear jumper
    • Peripheral Connectors
  • One "Ultra DMA/100/66/33" IDE
  • Four Serial ATA
  • One floppy disk drive
  • One Bi-directional/EPP/ECP printer
  • IRDA Infrared Interface Header
  • Eight USB connections (four rear panel ports, four internal connections)

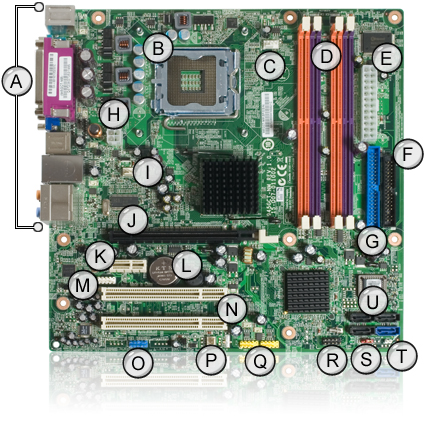

    • ARear panel portsLBattery
    BProcessor socketMCOM2 serial connector
    CCPU fan connectorNPCI conventional connectors
    DMemory slotsOFront panel audio connector
    EATX power connectorPPower fan connector
    FFloppy disk drive connectorQUSB 2.0 connectors
    GParallel ATA IDE connectorRFront panel connector
    HProcessor core power connectorSClear CMOS jumper
    ISystem fan connectorTIntrusion switch connector
    JPCI Express ×16 connectorUSATA connectors
    KPCI Express ×1 connector
