Gateway GT5648E GT5644E Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Gateway Gt5648e Gt5644e Motherboard. Model: 4006203R
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB64GW4006203R1
Brand Gateway
Model 4006203R
Category Amd Socket Am2+ Am3 Motherboards

Description

Gateway MCP61P-AM Motherboard 4006203R. Gateway MCP61P-AM Motherboard Support AMD AM2 Socket K8 Athlon 64 X2, Athlon 64, Athlon FX, and Sempron processors.

Compatible with Gateway: GT5648E GT5644E GT5637E GT5477E GT5482E GT5224j GT5212j GM5470E GM5472 GM5474 GM5639E

Features:

  • NVIDIA MCP61P/MCP61S chipset
  • AMD AM2 Socket K8 Athlon™ 64 X2, Athlon™ 64, Athlon™ FX, and Sempron™ processors
  • Four DIMM slots support for DDR2 800/667/533/400 MHz modules
  • Two PCI Conventional connector
  • One PCI Express ×16
  • One PCI Express ×1
  • Four Serial ATA (SATA) connectors
  • One 40-pin IDE connector
  • One Floppy disk drive connector
  • 8-channel (7.1) audio subsystem
  • Integrated 10/100 Ethernet LAN
  • Four external USB 2.0 ports with three additional internal headers providing 10 possible USB 2.0 port

Specifications:

Form FactorMicro ATX (244 × 230 mm)
ChipsetMCP61P/MCP61S
Processor Support
  • Brand: AMD
  • Socket type: AM2
  • System bus: 2000 MT/s
    • Memory Support
  • Type: 4 DIMM DDR2 sockets
  • Supported speeds: 800,667,533,400 MHz
  • Expandable up to 4 GB total memory
    • Video ChipsetMCP61S
    Audio CodecAC'97 ALC888 7.1
    LAN SupportIntegrated MARVELL 88E8056 10/100 Ethernet
    IEEE 1394 ChipsetTI TSB43AB23
    Super I/O ChipsetITE 8726F
    Add-in Card Slots
  • One ×16 PCI Express
  • One ×1 PCI Express
  • Two PCI conventional
    • Rear Panel Ports
  • One PS2 keyboard
  • One mouse port
  • Four rear I/0 USB 2.0 ports
  • One serial port
  • One parallel port
  • One VGA monitor port
  • One 1394a
  • One RJ-45 Ethernet
  • Six audio jacks
    • Internal Interfaces
  • Four serial ATA
  • Three internal USB connectors
  • Front panel IEEE 1394
  • Parallel IDE
  • Floppy disk drive
  • Front control panel
  • Front audio connector


    •

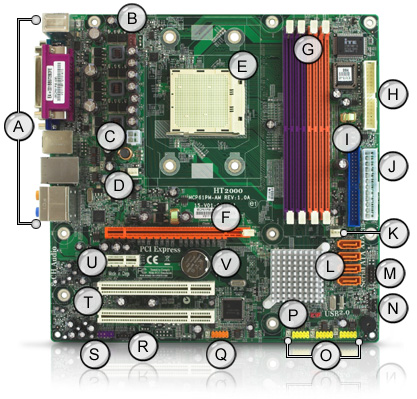

    ItemDescriptionItemDescription
    ARear panel portsLSATA connectors
    BCPU fan connectorMFront panel connector
    CAuxiliary 12V ATX connectorNSpeaker connector
    DSystem fan connectorOUSB 2.0 connectors
    ECPU socketPClear CMOS jumper
    FPCI Express x16 connectorQIEEE 1394 connector
    GMemory slotsRAux-In connector
    HFloppy disk drive connectorSFront audio connector
    IPrimary IDE connectorTPCI conventional connectors
    JMain power connectorUPCI Express x1 connector
    KPower fan connectorVBattery
