Gateway Intel D865 Midway 2 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

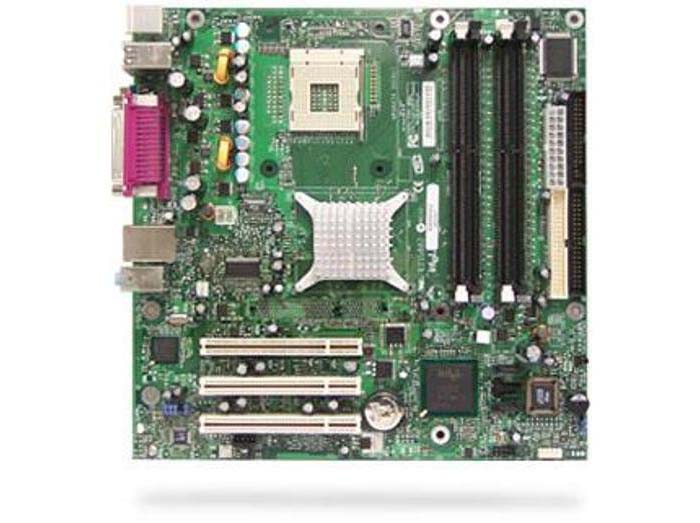

Gateway Intel D865 Midway 2 Motherboard. Model: D865gv Midway 2 Plus Gv
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4GWMIDWAY2
Brand Gateway
Model D865GV Midway 2 Plus GV
Category Intel P4 / Celeron 478-Pin Motherboards

Description

Gateway Intel D865 Midway 2 Plus GV Motherboard featuring Intel D865GV chipset have been manufactured by Intel for Gateway computers.

The Intel® Midway 2 Plus GV motherboard features:
  • Intel® 865GV Chipset
  • Intel AGP Extreme Graphics2 Controller - Onboard Video
  • Support for Intel Pentium® 4 Northwood and Prescott 478-pin, 800-megahertz (MHz) Front Side Bus (FSB) processors
  • Support for up to 4 gigabytes (GB) of 400-MHz DDR SDRAM
  • Memory configurations that can use Dual Channeling and Dynamic mode for optimizing the memory bandwidth
  • Integrated Serial ATA Ports and IDE
  • 10/100 Ethernet LAN capability
Intel (Midway 2 GV) Motherboard Specifications
Form FactormicroATX - 9.60 × 9.60 inches (243.84 × 243.84 mm)
Processor
  • Support for Intel Pentium processor S.478 with 400/533/800-Hz FSB 512K or 1MB
  • Support for Intel Celeron processor in an mPGA478 socket with a 400Mhz FSB
  • Support for Intel Celeron D processor in an mPGA478 socket with a 400/533MHz FSB
    • Memory
  • Four 184-pin DDR SDRAM DIMM sockets Dual Channel
  • Support for DDR 400, DDR 333, and DDR 266
  • Support for up to 4 GB of system memory
    • ChipsetIntel 865G Chipset, consisting of:

  • Intel 82865G GMCH
  • Intel 82801EB ICH5
  • 4-Mb FWH
    • Video
  • Intel Extreme Graphics 2 controller
    • AudioAD1981B Integrated Digital Audio codec
    This chipset only supports analog speakers.
    I/O ControlSMSC LPC47M172 LPC Bus I/O controller
    USBSupport for USB 2.0 devices
    LBASupport for 48-bit Logical Block Addressing (LBA)
    Peripheral
    Interfaces
  • Eight USB ports
  • One serial port
  • One parallel port
  • Two Serial ATA interfaces
  • Two Parallel ATA IDE interfaces with UDMA 33, ATA-66/100 support
  • One diskette drive interface
  • PS/2 keyboard and mouse ports
    • LAN Support10/100 Mbps LAN subsystem using the Intel 82562EZ Platform LAN Connect (PLC) device
    BIOS
  • Intel/AMI BIOS (resident in the 4 Mb FWH)
  • Support for ACPI, Plug and Play, and SMBIOS
    • Instantly Available
    PC Technology
  • Support for PCI Local Bus Specification Revision 2.2
  • Suspend to RAM support
  • Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports
    • Expansion
    Capabilities    		Three PCI bus add-in card connectors (SMBus routed to PCI bus connector 2)
    Hardware Monitor
    Subsystem
  • Hardware monitoring and fan control ASIC
  • Voltage sense to detect out of range power supply voltages
  • Thermal sense to detect out of range thermal values
  • Three fan connectors
  • Three fan sense inputs used to monitor fan activity
  • Fan speed control

    • Gateway Compatible Part#'s:

    4001045 4000946 2521362 2521369 2522207 2522208 2522209 2522210 2522211 2522212 2522213 2522222 2522223 2522224 2522225 2522226 2522227  2522228 WMEOEMD865GVLCLG2 2519041 2520284 2520321 2521130 2522214 2522215 2522216 2522215 2522219 2522220 2522230 2522232 2522233 2522234 2522235 2522236 2522237 2522269 WMEOEMD865GVLCLKG5 D865GLC / D865PESO

    This board could also be used to replace the following Gateway Part#'s Motherboards, however this board only has onboard AGP video adapter but no AGP slot, which the following part# boards have:

    4000947 2521362 2512363 2521369 2522207 2522208 2522209 2522269 4000820 4000887 2519040 2519041 2520284 2520285 2520321 2520476 2520852 2520901 2520914 2521130 2521155 2521362
