Gateway Intel D865GLC Midway Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

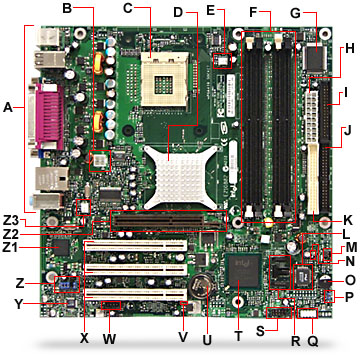

Gateway Intel D865glc Midway Motherboard. Model: D865glc Midway 4000888
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4GWMIDWAY
Brand Gateway
Model D865GLC MIDWAY 4000888
Category Intel P4 / Celeron 478-Pin Motherboards

Description

Gateway Intel D865GLC Midway Motherboard. D865GLC mainboards have been manufactured by Intel for Gateway computers. All boards are tested in Windows and come with 30 days warranty. We have more than one available, for larger quantities please contact us directly. Gateway part numbers on most boards are 4000888 & 4000820.

Compatible part numbers:  4000820 4000824 4000887 2519040 2519041 2520284 2520285 2520321 2520476 2520852 2520901 2520914 2521130 2521155 2521362 2521363 2519040 2520285 2520500 2520576 2520852 2520901 2520914 2521155 2521191 510X E-4100 510 Series

* For latest drivers download please click here.

Form FactormicroATX - 9.60 × 9.60 inches (243.84 × 243.84 mm
Processor
  • Support for an Intel® Pentium® processor in an mPGA478 socket with a 400/533/800-Hz system bus
  • Support for an Intel Celeron™ processor in an mPGA478 socket with a 400-MHz system bus
    • Memory
  • Four 184-pin DDR SDRAM DIMM sockets
  • Support for DDR 400, DDR 333, and DDR 266
  • Support for up to 4 GB of system memory
    • ChipsetIntel 865G Chipset, consisting of:

  • Intel 82865G GMCH
  • Intel 82801EB ICH5
  • 4-Mb FWH
    • Video
  • Intel Extreme Graphics 2 controller
  • Universal 0.8 V / 1.5 V AGP 3.0 connector supporting 1X, 4X, and 8X AGP cards or an ADD card
  • Integrated retention mechanism
    • AudioAD1981B Integrated Digital Audio codec
    This chipset only supports analog speakers.
    I/O ControlSMSC LPC47M172 LPC Bus I/O controller
    USBSupport for USB 2.0 devices
    LBASupport for 48-bit Logical Block Addressing (LBA)
    Peripheral
    Interfaces
  • Eight USB ports
  • One serial port
  • One parallel port
  • Two Serial ATA IDE interfaces
  • Two Parallel ATA IDE interfaces with UDMA 33, ATA-66/100 support
  • One diskette drive interface
  • PS/2 keyboard and mouse ports
    • LAN Support10/100 Mbps LAN subsystem using the Intel 82562EZ Platform LAN Connect (PLC) device
    BIOS
  • Intel/AMI BIOS (resident in the 4 Mb FWH)
  • Support for ACPI, Plug and Play, and SMBIOS
    • Instantly Available
    PC Technology
  • Support for PCI Local Bus Specification Revision 2.2
  • Suspend to RAM support
  • Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports
    • Expansion
    Capabilities    		Three PCI bus add-in card connectors (SMBus routed to PCI bus connector 2)
    Hardware Monitor
    Subsystem
  • Hardware monitoring and fan control ASIC
  • Voltage sense to detect out of range power supply voltages
  • Thermal sense to detect out of range thermal values
  • Three fan connectors
  • Three fan sense inputs used to monitor fan activity
  • Fan speed control
