Gateway MCP61P Motherboard 4006196R

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Gateway Mcp61p Motherboard 4006196R
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB64GAT4006196R
Brand Gateway
Model 4006196R
Category Amd Socket Am2+ Am3 Motherboards

Description

Gateway MCP61P Motherboard 4006196R. This Motherboard Supports socket AM2 for AMD Athlon 64X2 Dual Core Athlon 64 and Sempron processors.

Part Number: 4006196R

Gateway Desktop Computer Models: GT5016C GT5010C GT3080M GT3084m GT3086m GT5256c

Features:

  • Supports socket AM2 for AMD® Athlon™ 64 X2 Dual Core, Athlon™ 64 and Sempron™ processors
  • Supports HyperTransport™ up to 2000 MT/s
  • Chipset: MCP61P
  • Two 240-pin DDR2 DIMM slots
  • Four add-in card slots:
    • One PCI Express ×16
    • One PCI Express ×1
    • Two PCI conventional
  • Integrated NVIDIA® GeForce® 6150SE nForce 430 graphics
  • Integrated Realtek High Definition Audio using the Realtek ALC 888 audio codec
  • Integrated 10/100 Ethernet LAN
  • Four Serial ATA (SATA) connectors
  • Four external USB 2.0 ports with three additional internal headers providing 10 possible USB 2.0 ports

Specifications:

Form FactoruATX 9.6 inches × 8.6 inches
Processor SupportSupports socket AM2 for AMD® Athlon™ 64X2 Dual Core,Athlon™ 64 and Sempron™ processors
System Bus SupportUp to 2000 Mhz
Memory SupportTwo DDR2 400/533/667/800 MHz SDRAM slots
Support up to 2 GB system memory
VideoIntegrated NVIDIA® GeForce® 6150SE nForce 430 graphics

AudioIntegrated Realtek High Definition Audio using the Realtek ALC 888 audio codec
Network SupportIntegrated 10/100 MB LAN
Add-In Card Slots
  • One PCI Express ×16
  • One PCI-E ×1
  • Two PCI Conventional
    • Rear Panel I/O Ports
  • PS/2 keyboard port
  • PS/2 mouse port
  • Four USB 2.0 ports
  • One parallel port
  • One VGA monitor port
  • One RJ-45 LAN port
  • Three audio jacks
    • Internal Headers
  • Three 2-port USB 2.0 headers (2 × 5)
  • One Front panel audio header (mic / headphone)
  • One front panel header (2 × 5 supports power LED, power switch, hard drive LED, and reset switch)
  • One Floppy disk drive connector
  • One Primary IDE connector
  • Four Serial ATA II connectors (3 GB/s)
  • One Clear CMOS jumper
  • One Main Power Connector 24-pin (2 × 12)
  • One 12V CPU power connector 4-pin
  • One 4-pin CPU fan connector
  • One 3-pin system fan connector
  • One 3-pin power fan connector
  • One CD-In connector

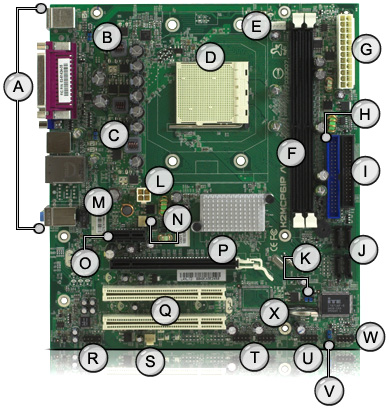

    • ItemDescriptionItemDescription
    ARear panel portsMCD-In connector
    BKB power jumperNPower fan connector
    CUSB power 1 jumperOPCI Express ×1 connector
    DCPU socketPPCI Express ×16 connector
    ECPU fan connectorQPCI conventional connectors
    FMemory slotsRFront audio connector
    GMain power connectorSSystem fan connector
    HParallel ATA IDE connectorTUSB 2.0 connectors
    IFloppy disk drive connectorUUSB 2.0 connector
    JSATA connectorsVUSB power 2 jumper
    KClear CMOS jumperWFront panel connector
    LAuxiliary 12V ATX connectorXBattery

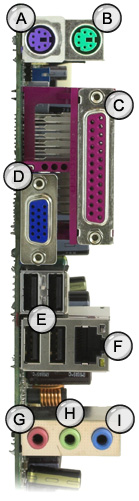

    ItemDescriptionItemDescription
    APS/2 keyboard portFNetwork port
    BPS/2 mouse portGMicrophone jack
    CParallel portHLine out jack
    DVGA monitor portILine in jack
    EFour USB 2.0 ports
