Gateway MCP61PM-GM Motherboard 4006254R

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Gateway Mcp61pm-Gm Motherboard 4006254R. Model: Gm5664 Gt5674 Fx7020
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB64GAT4006254R
Brand Gateway
Model GM5664 GT5674 FX7020
Category Amd Socket Am2+ Am3 Motherboards

Description

Gateway MCP61PM-GM Motherboard 4006254R. Gateway motherboard raises the bar of PC industry and deliver a full-value, high-performance solution for today's most demanding tasks.

Part Number: 4006254R

Download Latest Drivers Here:

Gateway Desktop Computer Models: FX7020 GM5664 GT3080m GT4226m GT5658E GT5662 GT5670 GT5674

Features:

  • Supports AMD® AM2 Socket K8 Athlon™ 64 X2, Athlon™ 64, Athlon™ FX, and Sempron™ processors under 89 watt power consumption
  • FSB speed: 2000 MT/s
  • NVIDIA Chipset: MCP61P
  • Four 240-pin DDR2 DIMM slots
  • Four add-in card slots:
    • One PCI Express ×16
    • Two PCI Express ×1
    • One PCI conventional
  • Integrated NVIDIA® GeForce® 6150SE nForce 430 graphics
  • Integrated Realtek High Definition Audio
  • Integrated Realtek RTL8201N 10/100 Ethernet LAN
  • Four Serial ATA (SATA) II connectors with NCQ support
  • Four external USB 2.0 ports with two additional 5×2 internal headers and two 5×1 internal headers providing 10 possible USB 2.0 ports

Specifications:

Form FactormATX 244 mm × 244 mm
Processor SupportSupports AMD® AM2 Socket K8 Athlon™ 64 X2, Athlon™ 64, Athlon™ FX, and Sempron™ processors under 89 watt power consumption
System Bus SupportUp to 2000 Mhz
Memory SupportFour DDR2 800/667/533/400 MHz SDRAM slots
Support up to 4 GB system memory
VideoIntegrated NVIDIA® GeForce® 6150SE nForce 430 graphics

AudioIntegrated Realtek High Definition Audio (ALC888S)
Network SupportIntegrated Realtek RTL8201N 10/100 MB LAN
Add-In Card Slots
  • One PCI Express ×16
  • Two PCI-E ×1
  • One PCI Conventional
    • Rear Panel I/O Ports
  • PS/2 keyboard port
  • PS/2 mouse port
  • Four USB 2.0 ports
  • One parallel port
  • One serial port
  • One VGA monitor port
  • One RJ-45 LAN port
  • Six audio jacks
    • Internal Headers
  • Two 2-port USB 2.0 headers (2 × 5)
  • Two 1-port USB 2.0 headers (1 × 5)
  • One Front panel audio header (mic / headphone)
  • One front panel header (2 × 5 supports power LED, power switch, hard drive LED, and reset switch)
  • One Floppy disk drive connector
  • One Primary IDE connector
  • Four Serial ATA II connectors (3 GB/s)
  • One Clear CMOS jumper
  • One Main Power Connector 24-pin (2 × 12)
  • One 12V CPU power connector 4-pin
  • One 3-pin CPU fan connector
  • One 3-pin system fan connector

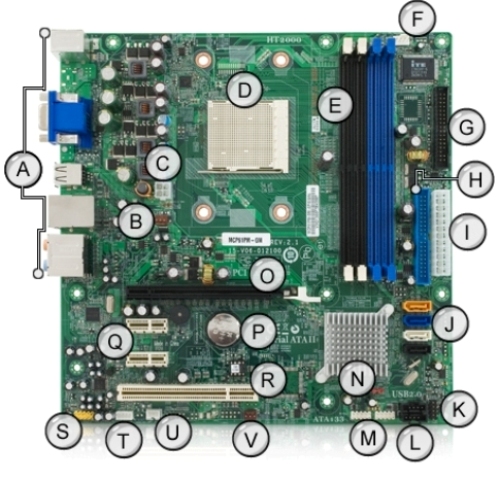

    • ARear panel portsLUSB 2.0 connectors
    BSystem fan connectorMUSB 2.0 connectors
    CAuxiliary 12V ATX connectorNClear CMOS jumper
    DProcessor socketOPCI Express ×16 connector
    EMemory slotsPBattery
    FCPU fan connectorQPCI Express ×1 connectors
    GFloppy disk drive connectorRPCI conventional connector
    HPrimary IDE connectorSFront audio connector
    IMain power connectorTAux-In connector
    JSATA connectorsUSPDIF-Out connector
    KFront panel connectorVPower fan connector
