Gateway ML6732 Motherboard 4006214R

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

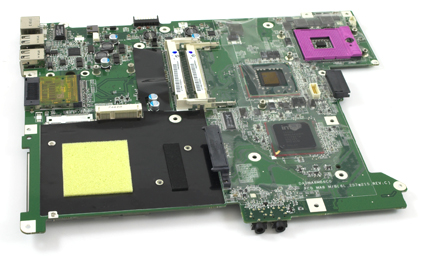

Gateway Ml6732 Motherboard 4006214R. Model: 4006214R 10Mbzzz0taf
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBLGAT4006214R0
Brand Gateway
Model 4006214R 10MBZZZ0TAF
Category Laptop Motherboards

Description

Gateway ML6732 Motherboard 4006214R. Gateway motherboard raises the bar of PC industry and deliver a full-value, high-performance solution for today's most demanding tasks.

Compatible Part Numbers: 4006214R 10MBZZZ0TAF
Compatible Notebook Models: ML6732 MT6915b MT6916 MT6917b MT6919 MT6920 MX6901m

Specifications:

Processor
  • Supported: Intel® Merom Core Duo and Merom-Lite CPUs
  • Package: Socket-P, uFCPGA
  • FSB: 533/667/800 MHz
  • Thermal: Digital Thermal Sensor
    • Core logic
  • North Bridge: Intel® GM965
  • South Bridge: Intel® ICH8M
    • Memory
  • Base: 0 MB on motherboard
  • Sockets: 2 SO-DIMM sockets, both user accessible
  • Type: DDR2 667 MHz SO-DIMMs
  • Channel: Dual-channel
  • Maximum: 4 GB
  • Thermal: EXTTS Implementation
    • Graphics
  • Controller: Intel® Crestline-GM
  • Bus: Integrated in notebook
  • Memory options: DMVT 3.0
  • Display interface: 2-CH LVDS
  • Brightness Control: PWM, 8-Levels
    • Communications
  • FAX/Modem: Agere Delphi AM3 (MDC 1.5 form factor)
  • Networking: Realtek RTL8101E
  • Integrated wireless: Mini-card form factor
    • Storage
  • Hard drive: SATA I/F, Direct connect to motherboard
  • Optical drive: PATA I/F, Direct connect to motherboard
    • Key asics
  • Audio: SigmaTel STAC9205
  • KBC: Winbond W83L951D
  • BIOS: ATMEL AT26DF081A-SU
  • ExpressCard: PCIe x 1, USB x 1 from ICH8M
  • 1394a:
  • Memory reader (7 in 1): RTS5158
  • AC Adapter receptical: 65 watt (140 CC)
    • Security
    • Anti-theft: CompuTrace Persistence Module in BIOS
    • BIOS: POST password, Hard drive password
    BIOS specifications ACPI 2.0, WFM 2.0, SMBIOS 2.4, USB floppy disk drive boot support
    PXE boot, WoLOM (Wake-on LAN on Motherboard)
    Expansion
  • Mini-card: 2 Mini-card sockets
  • Docking: No Support
    • Power management.
  • Graphics power management (UMA):
    • Intel® Display Power Savings Technology 3.0
    • Intel® Rapid Memory Power Management
    • Intel® Smart 2D Display Technology
    • SDVO Power Down
    • Display P-States
  • Storage: Intel® Matrix Storage Technology Driver
  • Processor: Support for C0 to C4 states, Support for C1E to C4E
  • Memory: DDR bus throttling via thermal sensor
  • Battery charge: Standard 0.7C charge scheme
    • I/O ports
    • Three - USB 2.0 ports
    • One - VGA port
    • One - ExpressCard Type 54
    • One - IEEE 1394 (4-pin)
    • 7-in-1 Memory card reader
    • Microphone jack
    • Headphone jack
    • RJ-45 port
    • RJ-11 port
    • Power input
    Internal connectors (cable only)
    • Keyboard: Keyboard matrix connected to KBC via motherboard
    • Multi-purpose Pick Board: Touchpad Pick Button Board to support L and R Pick Buttons, Optional FPR, Audio Jacks & Status LEDs
    • Power Button: Input to KBC
