Gateway MS-7248R Motherboard 4001071R

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Gateway Ms-7248R Motherboard 4001071R. Model: 4006168R 106623 4001070
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4GAT4001071R
Brand Gateway
Model 4006168R 106623 4001070
Category Intel Lga775 Motherboards

Description

Gateway MS-7248R Motherboard 4001071R. This Motherboard Supports Intel processors in an LGA775 package and System bus support of 800/533 MHz.

Part Numbers: 106623 4001071R 4001070 4006168R WMEMS-7248

Compatible with Gateway Models: GM3032b GT3070m GT4024 GT4026E GT5062E GT5062j GT5222E GT5244E GT5272E DX110S DX110X DX210S DX210X

Features:

  • Chipset consisting of:
    • MCH (northbridge): ATI RC410 Rev. A12
    • ICH (southbridge): ATI SB450 Rev. A13
  • Supports Intel® processors in an LGA775 package
  • System bus support of 800/533 MHz
  • Memory support for DDR2 533/667 MHz single channel DIMMs, expandable up to 2 GB
  • Integrated video
  • Integrated Realtek 8.1 channel audio subsystem
  • Integrated 10/100 LAN
  • One ×16 PCI Express, one ×1 PCI Express, and two PCI conventional add-in card slots

Specifications:

Form Factor
  • Micro BTX
  • Dimensions: 10.5 × 10.4 inches
    • CPU Support
  • Package: LGA775
  • System Bus Support: 800/533 MHz
    • Memory Support
  • Two DDR2 DIMM slots
  • 1.8 V (only) DDR2 SDRAM Dual Inline Memory Modules (DIMMs) with gold-plated contacts
  • Unbuffered, single-sided or double-sided DIMMs
    Note:     Single sided ×16 modules are supported but double-sided ×16 modules are not.
  • Non-ECC DIMMs
  • Serial Presence Detect
  • DDR2 533 or DDR2 400 MHz SDRAM DIMMs
  • Maximum total system memory: 2 GB
  • Minimum total system memory: 128 MB
    • MCH (Northbridge)ATI RC410 Rev. A12
    ICH (Southbridge)ATI SB450 Rev. A13
    Firmware Hub4 MB LPC Flash ROM
    Integrated LANIntegrated 10/100 LAN Realtek RT8100C co-layout GiGi RTL8110S
    Integrated Audio
  • Interface: Azalia 8.1 channels
  • Model: Realtek ALC861
    • IEEE 1394a ControllerVIA VT6307
    Serial Input/Output (SIO)Winbond 83627 EHF
    Add-in Card Slots
  • One PCI Express ×16 (graphics interface)
  • One PCI Express ×1
  • Two PCI conventional
    • Rear panel I/O Ports
  • Four USB 2.0 ports
  • Two PS/2 (keyboard/mouse) ports
  • One parallel port
  • One VGA monitor port
  • One RJ-45 LAN port
  • Six Analog audio jacks
    • Internal Headers
  • Two 2-port USB 2.0 headers (2 × 5)
  • Front panel audio header (2 × 5, mic / headphone)
  • Front panel header (2 × 5)
  • IEEE 1394a front panel header
  • Chassis power LED header (1 × 3)
  • Floppy disk drive connector
  • Primary IDE connector
  • Secondary IDE connector
  • Four Serial ATA connectors
  • Two ATAPI headers
  • Clear CMOS jumper
  • Main Power Connector 24-pin (2 × 12)
  • Auxiliary 12V CPU power connector 4-pin (2 × 2)
  • CPU Fan connector
  • Rear fan connector

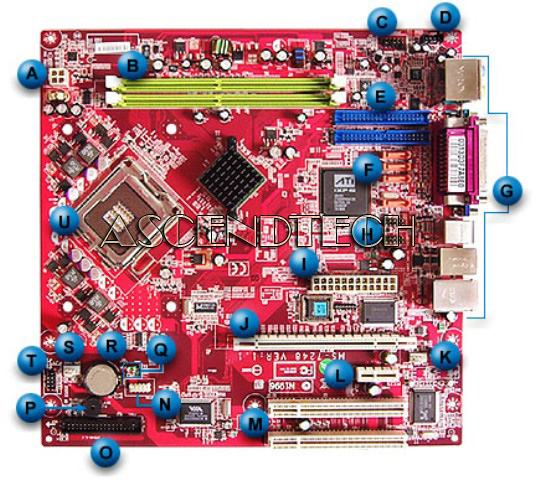

    • AAuxiliary ATX power connectorLPCI Express x1 connector
    BMemory slotsMPCI conventional connectors
    CFront panel audio connectorNIEEE 1394a connector
    DCD audio-in connectorOFloppy disk drive connectors
    EParallel ATA IDE connectorsPSpeaker
    FSATA connectorsQClear CMOS jumper
    GRear panel portsRBattery
    HUSB 2.0 connectorsSCPU fan connector
    IMain power connectorTFront panel connector
    JPCI Express x16 connectorUCPU socket
    KSystem fan connector
