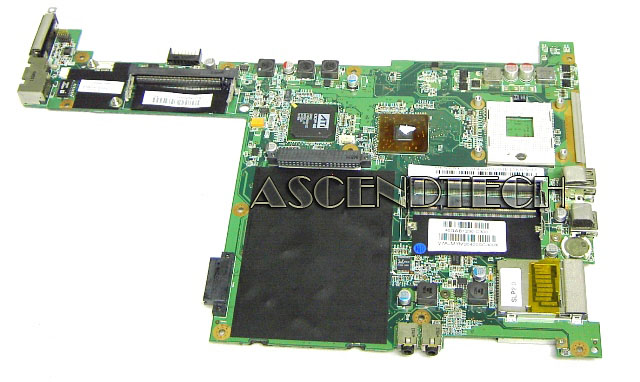

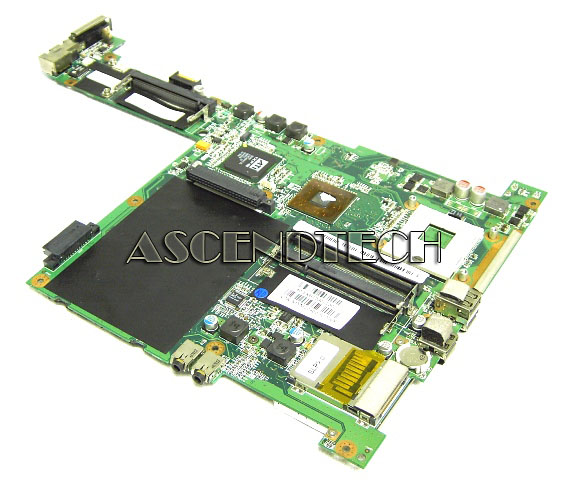

Gateway MX3138M Notebook Motherboard 4006148R. Gateway motherboard raises the bar of PC industry and deliver a full-value, high-performance solution for today's most demanding tasks.
Compatible Part Numbers: 4006148R 40GAB1230-C310
Compatible Notebook Models:
Gateway MX3101b Notebook - 1013937R Gateway MX3102j Notebook - 1013978R Gateway MX3103b Notebook - 1014109R Gateway MX3138m Notebook - 1013962R Gateway MX3139m Notebook - 1013961R Gateway MX3140m Notebook - 1014192R Gateway MX3141m Notebook - 1014190R Gateway MX3142m Notebook - 1014396R Gateway MX3143m Notebook - 1014485R Gateway MX3701 Notebook - 2905896R Gateway MX3702 Notebook - 2905898R Gateway MT3104b Notebook - 1014199R Gateway MT3105j Notebook - 1014289R Gateway MT3107b Notebook - 1014398R Gateway MT3110c Notebook - 1014534R Gateway MT3111c Notebook - 1014624R Gateway MT3112c Notebook - 1014788R Gateway MT3705 Notebook - 1014142R Gateway MT3707 Notebook - 1014372R Gateway MT3708 Notebook - 1014352R Gateway MT3710c Notebook - 1014536R Gateway MT3711c Notebook - 1014626R Gateway MT3713c Notebook - 1014789R Gateway ML3109 Notebook - 1014550R Gateway ML3706 Notebook - 1014201R Gateway NX270S Notebook - 1014120R
Specifications:
| Processor | - Supported: Intel Yonah Celeron M
- Package: Socket uFCPGA 478 pin
- FSB: 533 MHz
|
| Core Logic | - North Bridge: ATI RC415MD
- South Bridge: SB460
|
| System Memory | - Base: 0 MB Down
- Socket: Two 200-pin SO-DIMM sockets, both user accessible
- Type: DDR-II 533 MHz
- Channel: Single-channel
- Maximum: 2 GB
|
| Graphics | - Controller: RC415C
- Bus: Integrated in notebook
- Memory Options: 64 MB (default)
- Display Interface: 1-CH LVDS
- TV-Out: Integrated in notebook
- Brightness Control: PWM, 8-Levels
|
| Communications | - Modem: Agere Delphi MDC 1.5
- Networking: Marvell 88E8088 10/100
- Integrated Wireless: Mini-PCI Type III B
|
| Storage | - Hard drive: PATA, Direct connect to motherboard
- Optical drive: PATA, Direct connect to motherboard
|
| Key Asics | - Audio: SigmaTel 9200
- KBC: ITE 8510
- ExpressCard: Integrated in notebook
- Memory reader: Realtek RTS5116
- AC adapter: 65 W
|
| Ports Summary | - Three - USB 2.0
- One - CRT
- One - ExpressCard
- One - Memory reader
- One - Microphone jack
- One - Headphone jack
- One - RJ-11
- One - RJ-45
- One - DC input
|
| Internal Connectors | - Keyboard: KB matrix connected to keyboard controller (KBC) via motherboard
- Touchpad: Connected to KBC via PS/2 Port
- Power Button: Input to KBC
|
| Security | - BIOS: POST password, HDD password
- Theft recovery: Support for CompuTrace BIOS Persistence Module
|
| BIOS Specifications | ACPI 2.0, WFM 2.0, SMBIOS 2.3, USB floppy disk drive boot support Phoenix Core SP2 or later
SVID and SSID: 0 × 107B and 0 × 0318 |
