Gateway MX6214 MT6828 Laptop Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Gateway Mx6214 Mt6828 Laptop Motherboard. Model: Da0ma7mb8c7 31Ma7mb0077

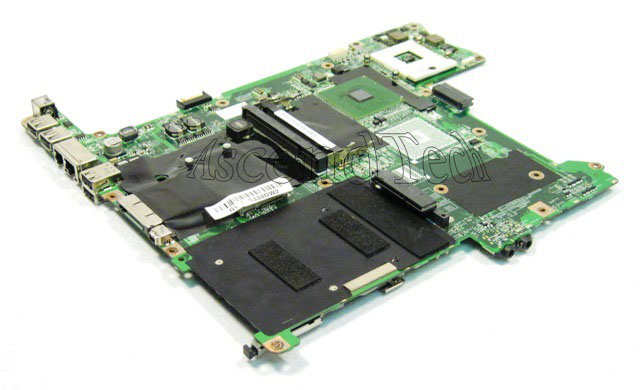

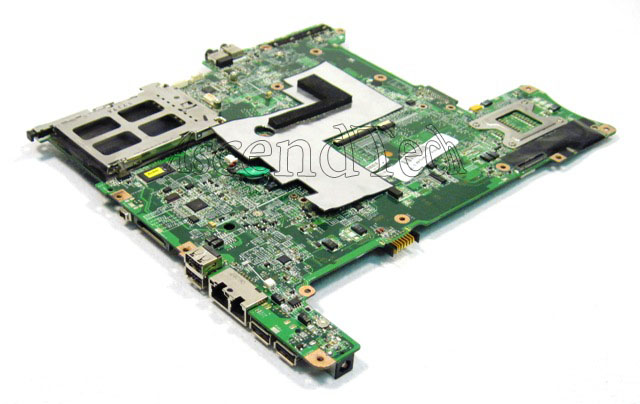

  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBL31MA7MB00772
Brand Gateway
Model DA0MA7MB8C7 31MA7MB0077
Category Laptop Motherboards

Description

Gateway DA0MA7MB8C7 Motherboard 31MA7MB0077. Gateway motherboard raises the bar of PC industry and deliver a full-value, high-performance solution for today's most demanding tasks.

Model Number: DA0MA7MB8C7
Part Number: 31MA7MB0077
Compatible with Models: MX6214 MT6828

Specifications:

  • Processor
    • Supported: Intel Yonah Core Dual and Celeron-M CPUs
    • Package: 479-pin, uFCPGA
    • FSB: 533/667 MHz
    • Thermal: Digital Thermal Sensor
    Core Logic
    • North Bridge: Intel 945GM/GT
    • South Bridge: Intel 82801GBM
    System Memory
    • Base: 0 MB Down
    • Sockets: 2 SO-DIMM Sockets, Both User Accessible
    • Type: DDR-II 533/667 MHz
    • Channel: Dual-channel
    • Maximum: 4 GB
    • Thermal: EXTTS Implementation
    Graphics
    • Controller: Intel GMA 950
    • Bus: Integrated in NB
    • Memory Options: DMVT 3.0
    • Display Interface: 2-CH LVDS
    • Brightness Control: PWM, 8-Levels
    Communications
    • Modem: Si3080 w/MoM or MoM DC
    • Networking: Marvell 88E8038
    Ports Summary
    • Four - USB 2.0
    • One - S-video
    • One - CardBus
    • One - 1394
    • Zero - Integrated Microphone
    • One - Stereo Microphone Jack
    • One - Stereo Headphone Jack
    • One - RJ-11
    • One - RJ-45
    • One - DC Input
