Gateway Profile 6 Motherboard 4001137R

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Gateway Profile 6 Motherboard 4001137R. Model: 2527923R 2527924R

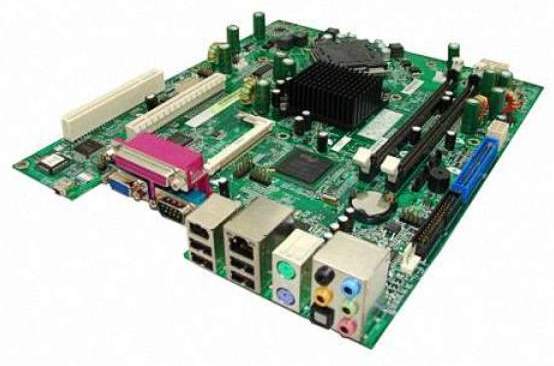

  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4GATW4001137R
Brand Gateway
Model 2527923R 2527924R
Category Intel Lga775 Motherboards

Description

Gateway Profile 6 Motherboard 4001137R. Gateway motherboard raises the bar of PC industry and deliver a full-value, high-performance solution for today's most demanding tasks.

Please click here to download the latest drivers!

Compatible Part Numbers: 2527923R 2527924R 2527925R 2527926R 2527927R 2527928R 2527929R 2527930R 2527931R 4001137R

Features:

  • Supports Intel processors with a 1066, 800, or 533 MHz system bus in an LGA775 socket (115 watt)
  • Intel Graphics Media Accelerator 950
  • Accepts DDR2 667/533 MHz memory

Specifications:

Form FactorCustomized BTX 4-layer; 9.25 × 11.18 inches (235 × 284 millimeters)
ChipsetIntel 945G chipset, consisting of:
  • MCH (northbridge): 945G
  • ICH (southbridge): ICH7
Processor SupportIntel processors with a 1066, 800, or 533 MHz system bus in an LGA775 socket (115 watt):
  • Celeron® D 3x1
  • Pentium® 4 6xx
  • Pentium D 8xx, 9xx (dual core)
Memory
  • Two DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
  • DDR2 667 or DDR2 533 MHz DIMMs
  • Expandable up to 2 GB total memory
    • Video
  • Integrated Intel Graphics Media Accelerator (GMA) 950 graphics subsystem with up to 224 MB shared video RAM
  • Optional NVIDIA PCI Express ×16 add-in card
    • Audio
  • Integrated Azalia audio interface using the Realtec/ALC883 codec
  • Audio amplifier: APA2068, 2 W + APA3010 (subwoofer), 3 W
    • IEEE 1394a ControllerTI TSB43AB22A, 2 port
    LAN SupportIntel 82573E(Giga)
    Intel Active Management
    Technology (IAMT) (ASF2.0)    		Tekoa 82573E
    SIO/Management ASICSMSC SCH5017
    Add-in Card Slots
  • One half-height PCI slot on motherboard
  • One riser card slot. Riser card options:
    • One PCI Express ×16 slot + one PCI
    • One PCI Express ×16 + one PCI Express×1
    • One PCI conventional + one PCI Express×1
    • Peripheral Interfaces
  • PS/2 keyboard port
  • PS/2 mouse port
  • Six USB 2.0 ports (four on side panel, two internal)
  • Two SATA connectors
  • Floppy disk connector
  • IDE connector
  • Serial port
  • Parallel port
  • VGA in port
  • S/PDIF audio port
  • Five Analog audio jacks
  • RJ-45 LAN (network) connector
  • Two IEEE 1394 (FireWire) ports (one 4-pin and one 6-pin)
  • Optional DVI connector - only available if add-in video card is installed.

    •

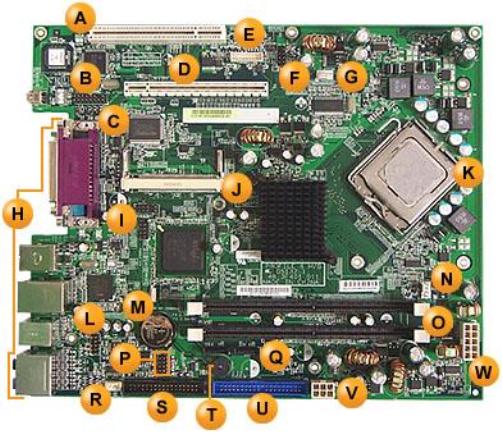

    *CPU is not included! Picture is for specification purposes only!


    ItemDescriptionItemDescription
    AHalf-height PCI slotMBattery
    BTPM connectorNSystem fan connector
    CBIOS configuration jumperOMemory slots
    DRiser card slotPFront panel connector
    EVideo signal connectorQSATA connectors
    FLCD power connectorRSpeaker connector
    GCPU fan connectorSFloppy disk drive connector
    HI/O portsTSpeaker
    IUSB connectorsUIDE connector
    JMini PCI slotVDrives power connector
    KCPU socketWMain power connector
    LFront panel audio connector
