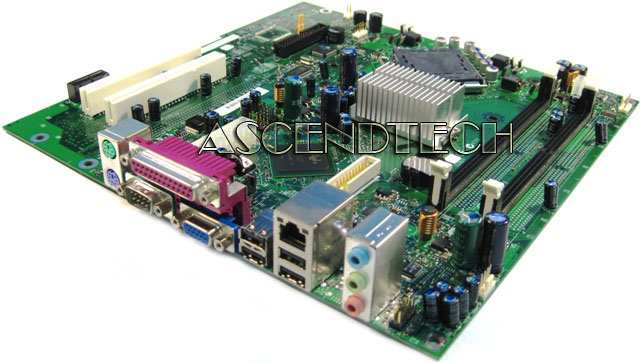

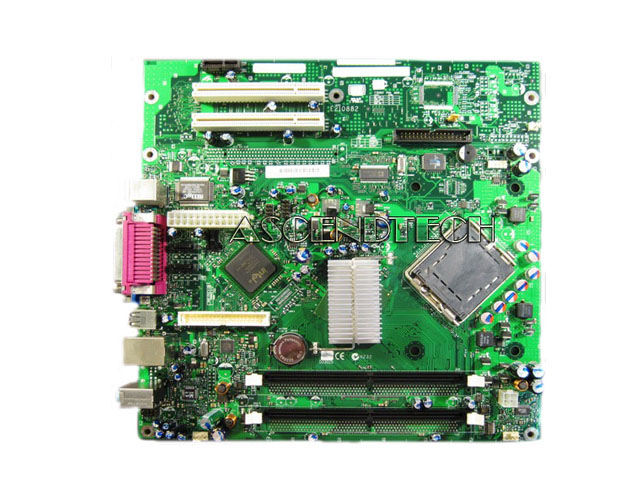

Gateway Southlake 3 G5 Motherboard 915. Model: 105172 / Wmeoem915gvseg5
  Enlarge
Gateway Southlake 3 G5 Motherboard 915. Model: 105172 / Wmeoem915gvseg5
Gateway Southlake 3 G5 Motherboard 915. Model: 105172 / Wmeoem915gvseg5
Gateway Southlake 3 G5 Motherboard 915. Model: 105172 / Wmeoem915gvseg5
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4GWSOUTHLAKE
Brand Gateway
Model 105172 / WMEOEM915GVSEG5
Category Intel Lga775 Motherboards

Description

Gateway Intel Southlake 3 G5 Replacement Motherboard 915GV ChipSet. Supports LGA775 775-pin processors with Hyper-Threading Technology 533 / 800 FSB, two 240-pin DDR2 DIMM connectors for DDR2 400, DDR2 533, non-ECC DIMMs.

Gateway Part Number: 105172 4001177 4001188 WMEOEM915GVSEG5 South Lake 3 D23023-102 D23023-103 D23023-104
Intel Part Number: OEMD915GVSE3G5X

Replacement board for: Gateway GT3010M GT3012M DT100X DX100S DX100T DX100R GT3040m GT3020m GT3025m GT3016b GT3015m DX200QS DX200S DX200X DX100X
Desktop Computer Part Number: 5532 5431 5426 5647 6299 6073 6072 1008815 2900876 1008550 1008726 1008552 1008551 1008664 1008602 1008701







Specifications:

Form FactorBTX Form Factor (10.5 × 10.4 inches)
ProcessorSupport for Intel® Pentium® 4 or Celeron® D processors in an LGA775 socket with an 800 or 533 MHz system bus
Memory
  • Two 240-pin DDR2 DIMM slots
  • Support for DDR2 533 and DDR2 400 ECC and Non-ECC DIMMS
  • Maximum of four double-sided DIMMs (8 rows populated) with unbuffered DDR533/DDR400
  • Support 256 Mb, 512 Mb and 1024 Mb technologies for x8 and x16 devices
  • Maximum capacity: 2048 MB
ChipsetIntel 915GV Chipset, consisting of:

  • Intel 915GV Graphics/Memory Controller Hub (GMCH)
  • Intel I/O controller hub (ICH6)
  • 4 Mbit Firmware Hub (FWH)
VideoIntegrated Intel Graphics
AudioIntegrated Intel High Definition Audio subsystem using the Realtek ALC860VU audio codec
I/O ControlLPC Bus I/O controller
USBSupport for USB 2.0 devices
Peripheral Interfaces
  • Six USB ports (four on back panel, two internal)
  • One serial port
  • One parallel port
  • Four Serial ATA interfaces
  • One Parallel ATA IDE interface with UDMA 33, ATA-66/100 support
  • One floppy disk drive interface
  • One PS/2 keyboard port
  • One PS/2 mouse port
  • Two front IEEE-1394a connectors
  • RJ-45 LAN port
  • Three rear port audio jacks
LAN Support10/100 Mbits/sec LAN subsystem using Marvell® PCIe
Expansion Capabilities
  • Two PCI Conventional add-in card connectors
  • One PCI Express ×1 bus add-in card connector
    • Heceta 6E Hardware Monitor Subsystem
    • Internal Ambient Temperature Sensing
    • Monitor power supplies (+5 V, +3.3 V, +1.5 V, +Vccp, +3.3 VSB)
    • SMBus interface used to access the ASIC
    • WATCHDOG™ Comparisons of all monitored values
    • Remote Thermal Diode Sensing for direct processor temperature monitoring
    • Discrete remote thermal diode sensor located near the 2 × 12 power connector
