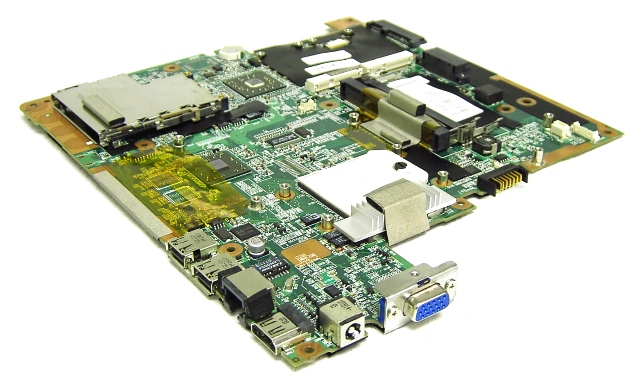

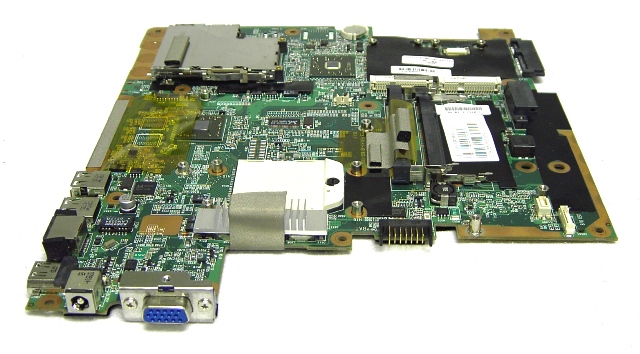

Gateway T-1620 T-1621 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMBLGAT4006211R3
BrandGateway
Model4006211R B1895060G00001
CategoryLaptop Motherboards

Description

Gateway T-1628 Motherboard 4006211R. Gateway motherboard raises the bar of PC industry and deliver a full-value, high-performance solution for today's most demanding tasks.

Compatible Part Numbers: 4006211R B1895060G00001
Compatible with Gateway: T-1603m T-1604m T-1605m T-1616 T-1620 T-1621 T-1622 T-1623 T-1625 T-1628 T-1628h T-1629 T-1412 T-1602m T-1630 M-1408j M-1410j M-1411j M-1615 M-1617 M-1618 M-1618N M-1618R M-1619j

Specifications:

Processor
  • Supported: AMD Turion 64 X2 and Sempron CPUs
  • Package: uFCPGA, Socket S1 Compatible
  • FSB: 1.6 GHz
    • Core logic
  • North Bridge: ATI RS690T
  • South Bridge: ATI SB600
    • Memory
  • Base: 0 MB on motherboard
  • Sockets: 2 SO-DIMM sockets, both user accessible
  • Type: DDR2 667 MHz
  • Channel: Dual-channel
  • Maximum: 4 GB
  • Thermal: EXTTS Implementation
    • Graphics
  • Controller: ATI RS690T UMA graphics
  • Bus: Integrated in notebook
  • Memory options: 16-bit interface for up to 128M frame buffer
  • Display interface: 2-CH LVDS
  • TV-out: HDMI from North Bridge
  • Brightness Control: PWM, 8-Levels
    • Communications
  • Modem: Agere Delphi AM3 (MDC 1.5 form factor)
  • Networking: Realtek RTL8101E-GR
  • Integrated wireless: Mini-card form factor
    • Key asics
  • Audio: SigmaTel STAC9205
  • HDMI: Direct from notebook
  • BIOS: 1 MB
  • ExpressCard: PCIe x 1, USB x 1 from SB
  • 1394a: Agere FW321
  • Memory reader (7 in 1): RTS5117
  • AC Adapter receptical: 65 watt (140 CC)
    • Security
    • Anti-theft: CompuTrace Persistence Module in BIOS
    • BIOS: POST password, Hard drive password
    BIOS Specifications: ACPI 2.0, WFM 2.0, SMBIOS 2.4, USB FDD Boot Support, PXE Boot, Wake-on LOM
    BIOS versions: 90.xx.xx
    SVID and SSID: SVID 0x107B and SSID 0x0565
    Expansion
  • Mini-card: 2 Mini-card sockets
  • Docking: No Support
    • Power management.
  • System: AMD PowerNow
  • Display (UMA): Maximize use of available Power Management Schemes available with ATI Core Logic
  • Processor: Support for C0 to C1E stutter mode
  • Memory: DDR bus throttling via thermal sensor
  • Battery charge: 0.7C Constant Charge Algorithm
    • I/O ports
    • Two - USB 2.0 ports
    • One - VGA port (D-Sub 15-pin)
    • One - HDMI (optional)
    • One - ExpressCard (Type 54)
    • One - RJ-45 port
    • One - DC input
