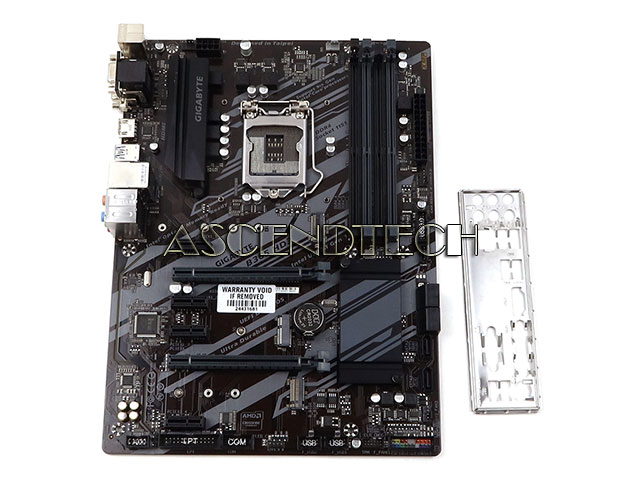

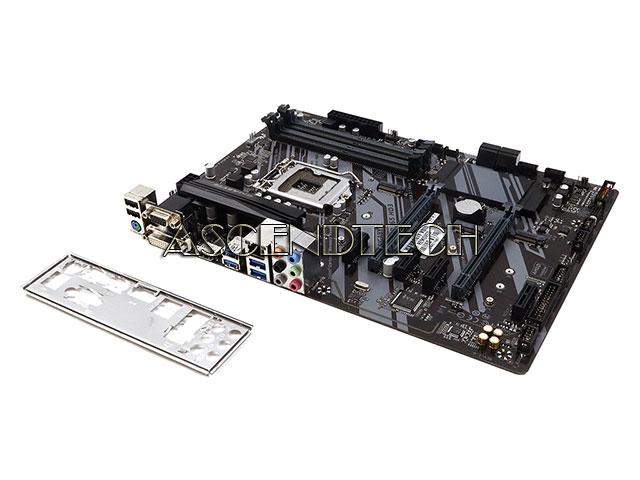

B365 HD3 | Gigabyte B365 Hd3 Desktop Motherboard

Gigabyte B365 HD3 Intel Chipset B365 Socket LGA1151 DDR4 DVI HDMI VGA ATX Desktop Motherboard.

Chipset: Intel B365

Socket: Intel LGA1151

Compatible/Supported CPU: Intel 8th 9th Generation Core i3/i5/i7/i9, Pentium, Celeron

Max Supported Memory: 64GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Storage Interface: SATA 3 6.0Gb/s

RAID Support: RAID 0, RAID 1, RAID 5, and RAID 10

Network/Communications: Realtek GbE LAN chip (10/100/1000 Mbit)

Audio: Realtek ALC892

Connectors: 6x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header), 6x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers), 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x CPU fan header, 3x system fan headers, 1x RGB LED strip header, 6x SATA 6Gb/s connectors, 2x M.2 Socket 3 connectors, 1x front panel header, 1x front panel audio header, 1x S/PDIF Out header, 1x USB 3.1 Gen 1 header, 2x USB 2.0/1.1 headers, 1x Thunderbolt add-in card connector, 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1x parallel port header, 1x serial port header, 1x Clear CMOS jumper

Input/Output Ports: 1x PS/2 keyboard/mouse port, 1x D-Sub port, 1x DVI-D port, 1x HDMI port, 4x USB 3.1 Gen 1 ports, 2x USB 2.0/1.1 ports, 1x RJ-45 port, 6x audio jacks

Expansion Slots: 1x PCI Express x16 slot, running at x16 (PCIEX16), 1x PCI Express x16 slot, running at x4 (PCIEX4), 4x PCI Express x1 slots, 1x M.2 Socket 1 connector for the wireless communication module (M2_WIFI), 1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M), 1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P)

Form Factor: ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit

Additional Specifications:

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
The DVI-D port does not support D-Sub connection by adapter.
1x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Support for HDMI 1.4 version and HDCP 2.2.
Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
Actual support may vary by CPU

Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

BIOS
1.2x 128 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.Support for DualBIOS
4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
1.Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications
@BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
2.Support for Q-Flash
3.Support for Xpress Install

H/W Monitoring
1.Voltage detection
2.Temperature detection
3.Fan speed detection
4.Overheating warning
5.Fan fail warning
6.Fan speed control
Whether the fan speed control function is supported will depend on the cooler you install

CPU Support:

Socket LGA1151
Vendor	CPU Model	Frequency	L3 Cache	GPU Info.	Core Name	Process	Stepping	Wattage
Intel	Core i9-9900KF	3.60GHz	16MB	N/A	Coffee Lake	14nm	P0	95W
Intel	Core i9-9900KF	3.60GHz	16MB	N/A	Coffee Lake	14nm	R0	95W
Intel	Core i9-9900KS	4.00GHz	16MB	350 MHz / 1200 MHz	Coffee Lake	14nm	R0	127W
Intel	Core i9-9900K	3.60GHz	16MB	350 MHz / 1200 MHz	Coffee Lake	14nm	R0	95W
Intel	Core i9-9900K	3.60GHz	16MB	350 MHz / 1200 MHz	Coffee Lake	14nm	P0	95W
Intel	Core i9-9900	3.10GHz	16MB	350 MHz / 1200 MHz	Coffee Lake	14nm	R0	65W
Intel	Core i9-9900T	2.10GHz	16MB	350 MHz / 1200 MHz	Coffee Lake	14nm	R0	35W
Intel	Core i7-9700KF	3.60GHz	12MB	N/A	Coffee Lake	14nm	P0	95W
Intel	Core i7-9700KF	3.60GHz	12MB	N/A	Coffee Lake	14nm	R0	95W
Intel	Core i7-9700K	3.60GHz	12MB	350 MHz / 1200 MHz	Coffee Lake	14nm	P0	95W
Intel	Core i7-9700K	3.60GHz	12MB	350 MHz / 1200 MHz	Coffee Lake	14nm	R0	95W
Intel	Core i7-9700F	3.00GHz	12MB	N/A	Coffee Lake	14nm	R0	65W
Intel	Core i7-9700	3.00GHz	12MB	350 MHz / 1200 MHz	Coffee Lake	14nm	R0	65W
Intel	Core i7-9700T	2.00GHz	12MB	350 MHz / 1200 MHz	Coffee Lake	14nm	R0	35W
Intel	Core i7-8086K	4.00GHz	12MB	350 MHz / 1200 MHz	Coffee Lake	14nm	U0	95W
Intel	Core i7-8700K	3.70GHz	12MB	350 MHz / 1200 MHz	Coffee Lake	14nm	U0	95W
Intel	Core i7-8700	3.20GHz	12MB	350 MHz / 1200 MHz	Coffee Lake	14nm	U0	65W
Intel	Core i7-8700T	2.40GHz	12MB	350 MHz / 1200 MHz	Coffee Lake	14nm	U0	35W
Intel	Core i5-9600KF	3.70GHz	9MB	N/A	Coffee Lake	14nm	R0	95W
Intel	Core i5-9600KF	3.70GHz	9MB	N/A	Coffee Lake	14nm	P0	95W
Intel	Core i5-9600K	3.70GHz	9MB	350 MHz / 1150 MHz	Coffee Lake	14nm	R0	95W
Intel	Core i5-9600K	3.70GHz	9MB	350 MHz / 1150 MHz	Coffee Lake	14nm	P0	95W
Intel	Core i5-9600	3.10GHz	9MB	350 MHz / 1150 MHz	Coffee Lake	14nm	U0	65W
Intel	Core i5-9600T	2.30GHz	9MB	350 MHz / 1150 MHz	Coffee Lake	14nm	U0	35W
Intel	Core i5-9500F	3.00GHz	9MB	N/A	Coffee Lake	14nm	U0	65W
Intel	Core i5-9500	3.00GHz	9MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	65W
Intel	Core i5-9500T	2.20GHz	9MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	35W
Intel	Core i5-9400F	2.90GHz	9MB	N/A	Coffee Lake	14nm	P0	65W
Intel	Core i5-9400F	2.90GHz	9MB	N/A	Coffee Lake	14nm	R0	65W
Intel	Core i5-9400F	2.90GHz	9MB	N/A	Coffee Lake	14nm	U0	65W
Intel	Core i5-9400	2.90GHz	9MB	350 MHz / 1050 MHz	Coffee Lake	14nm	P0	65W
Intel	Core i5-9400	2.90GHz	9MB	350 MHz / 1050 MHz	Coffee Lake	14nm	R0	65W
Intel	Core i5-9400	2.90GHz	9MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	65W
Intel	Core i5-9400T	1.80GHz	9MB	350 MHz / 1050 MHz	Coffee Lake	14nm	R0	35W
Intel	Core i5-9400T	1.80GHz	9MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	35W
Intel	Core i5-8600K	3.60GHz	9MB	350 MHz / 1150 MHz	Coffee Lake	14nm	U0	95W
Intel	Core i5-8600	3.10GHz	9MB	350 MHz / 1150 MHz	Coffee Lake	14nm	U0	65W
Intel	Core i5-8600T	2.30GHz	9MB	350 MHz / 1150 MHz	Coffee Lake	14nm	U0	35W
Intel	Core i5-8500	3.00GHz	9MB	350 MHz / 1100 MHz	Coffee Lake	14nm	U0	65W
Intel	Core i5-8500T	2.10GHz	9MB	350 MHz / 1100 MHz	Coffee Lake	14nm	U0	35W
Intel	Core i5-8400	2.80GHz	9MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	65W
Intel	Core i5-8400T	1.70GHz	9MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	35W
Intel	Core i3-9350KF	4.00GHz	8MB	N/A	Coffee Lake	14nm	B0	91W
Intel	Core i3-9350K	4.00GHz	8MB	350 MHz / 1150 MHz	Coffee Lake	14nm	B0	91W
Intel	Core i3-9320	3.70GHz	8MB	350 MHz / 1150 MHz	Coffee Lake	14nm	B0	62W
Intel	Core i3-9300	3.70GHz	8MB	350 MHz / 1150 MHz	Coffee Lake	14nm	B0	62W
Intel	Core i3-9300T	3.20GHz	8MB	350 MHz / 1150 MHz	Coffee Lake	14nm	B0	35W
Intel	Core i3-9100F	3.60GHz	6MB	N/A	Coffee Lake	14nm	B0	65W
Intel	Core i3-9100F	3.60GHz	6MB	N/A	Coffee Lake	14nm	U0	65W
Intel	Core i3-9100	3.60GHz	6MB	350 MHz / 1100 MHz	Coffee Lake	14nm	B0	65W
Intel	Core i3-9100T	3.10GHz	6MB	350 MHz / 1100 MHz	Coffee Lake	14nm	B0	35W
Intel	Core i3-8350K	4.00GHz	8MB	350 MHz / 1150 MHz	Coffee Lake	14nm	B0	91W
Intel	Core i3-8300	3.70GHz	8MB	350 MHz / 1150 MHz	Coffee Lake	14nm	B0	62W
Intel	Core i3-8300T	3.20GHz	8MB	350 MHz / 1100 MHz	Coffee Lake	14nm	B0	35W
Intel	Core i3-8100	3.60GHz	6MB	350 MHz / 1100 MHz	Coffee Lake	14nm	B0	65W
Intel	Core i3-8100	3.60GHz	6MB	350 MHz / 1100 MHz	Coffee Lake	14nm	U0	65W
Intel	Core i3-8100T	3.10GHz	6MB	350 MHz / 1100 MHz	Coffee Lake	14nm	B0	35W
Intel	Pentium G5620	4.00GHz	4MB	350 MHz / 1100 MHz	Coffee Lake	14nm	B0	54W
Intel	Pentium G5600	3.90GHz	4MB	350 MHz / 1100 MHz	Coffee Lake	14nm	B0	54W
Intel	Pentium G5600F	3.90GHz	4MB	N/A	Coffee Lake	14nm	B0	54W
Intel	Pentium G5600T	3.30GHz	4MB	350 MHz / 1100 MHz	Coffee Lake	14nm	B0	54W
Intel	Pentium G5500	3.80GHz	4MB	350 MHz / 1100 MHz	Coffee Lake	14nm	B0	54W
Intel	Pentium G5500T	3.20GHz	4MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	35W
Intel	Pentium G5420	3.80GHz	4MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	58W
Intel	Pentium G5420	3.80GHz	4MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	58W
Intel	Pentium G5420T	3.20GHz	4MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	58W
Intel	Pentium G5420T	3.20GHz	4MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	58W
Intel	Pentium G5400	3.70GHz	4MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	54W
Intel	Pentium G5400	3.70GHz	4MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	58W
Intel	Pentium G5400T	3.10GHz	4MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	35W
Intel	Pentium G5400T	3.10GHz	4MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	35W
Intel	Celeron G4950	3.30GHz	2MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	54W
Intel	Celeron G4930	3.20GHz	2MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	54W
Intel	Celeron G4930T	3.00GHz	2MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	35W
Intel	Celeron G4920	3.20GHz	2MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	54W
Intel	Celeron G4900	3.10GHz	2MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	54W
Intel	Celeron G4900T	2.90GHz	2MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	35W
