B365M DS3H WIFI | Gigabyte B365m Ds3h Wifi Motherboard

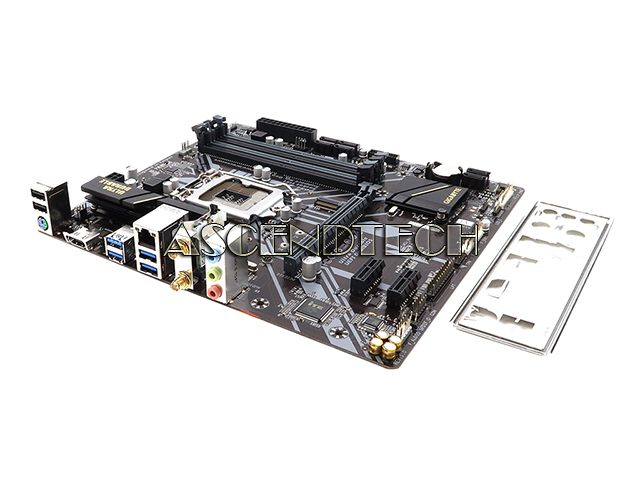

Gigabyte B365M DS3H WIFI Intel Chipset B365 Socket LGA1151 DDR4 HDMI USB SATA 6Gb/s Micro ATX Desktop Motherboard.

Chipset: Intel B365

Socket: Intel LGA1151

Compatible/Supported CPU: 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors

Max Supported Memory: 64GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Speed: 2667MHz/2400MHz/2133MHz

Storage Interface: SATA 6Gb/s

RAID Support: RAID 0, RAID 1, RAID 5 and RAID 10

Bluetooth Standard: Bluetooth 4.2

Wireless Lan Support: Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band (01AX706 11S01AX706, SW10K97457 8SSW10K97457)

Network/Communications: Realtek GbE LAN chip (10/100/1000 Mbit)

Audio: Realtek ALC887 Codec

Connectors: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x CPU fan header; 2x system fan headers; 2x addressable LED strip headers; 1x RGB LED strip header; 1x M.2 Socket 3 connector; 6x SATA 6Gb/s connectors; 1x front panel header; 1x front panel audio header; 1x S/PDIF Out header; 1x USB 3.1 Gen 1 header; 2x USB 2.0/1.1 headers; 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1x serial port header; 1x parallel port header; 1x Clear CMOS jumper.

Input/Output Ports: 1x PS/2 keyboard/mouse port; 2x SMA antenna connectors (1T1R); 1x HDMI port; 4x USB 3.1 Gen 1 ports; 2x USB 2.0/1.1 ports; 1x RJ-45 port; 3x audio jacks.

Expansion Slots: 1x PCI Express x16 slot, running at x16; 2x PCI Express x1 slots.

Form Factor: Micro ATX

Type: Desktop Motherboard

Supported Operating System: Microsoft Windows 10 64-bit

Features: Supports 9th and 8th Gen Intel Core Processors; Dual Channel Non-ECC Unbuffered DDR4; New Hybrid Digital PWM Design; High Quality Audio Capacitors; Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface; Intel Dual Band 802.11ac WIFI & BT 4.2; RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support; GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management; CEC 2019 Ready, Save the Power as Easy as One Click; Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP; Anti-Sulfur Resistors Design; Ultra Durable 15KV Surge LAN Protection; Intel Optane Memory Ready; GIGABYTE UEFI DualBIOS.

Additional Specifications:

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1x HDMI port, supporting a maximum resolution of 4096x2160 30 Hz
(Support for HDMI 1.4 version and HDCP 2.2.)
Maximum shared memory of 1 GB
Actual support may vary by CPU

BIOS
2x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart Survey
System Information Viewer
USB Blocker
Support for Q-Flash
Support for Xpress Install

CPU Support:

Socket LGA 1151
Vendor	CPU Model	Frequency	L3 Cache	GPU Frequency	Core Name	Process	Stepping	Wattage
Intel	Core i9-9900KF	3.60GHz	16MB	N/A	Coffee Lake	14nm	P0	95W
Intel	Core i9-9900KF	3.60GHz	16MB	N/A	Coffee Lake	14nm	R0	95W
Intel	Core i9-9900KS	4.00GHz	16MB	350 MHz / 1200 MHz	Coffee Lake	14nm	R0	127W
Intel	Core i9-9900K	3.60GHz	16MB	350 MHz / 1200 MHz	Coffee Lake	14nm	R0	95W
Intel	Core i9-9900K	3.60GHz	16MB	350 MHz / 1200 MHz	Coffee Lake	14nm	P0	95W
Intel	Core i9-9900	3.10GHz	16MB	350 MHz / 1200 MHz	Coffee Lake	14nm	R0	65W
Intel	Core i9-9900T	2.10GHz	16MB	350 MHz / 1200 MHz	Coffee Lake	14nm	R0	35W
Intel	Core i7-9700KF	3.60GHz	12MB	N/A	Coffee Lake	14nm	P0	95W
Intel	Core i7-9700KF	3.60GHz	12MB	N/A	Coffee Lake	14nm	R0	95W
Intel	Core i7-9700K	3.60GHz	12MB	350 MHz / 1200 MHz	Coffee Lake	14nm	P0	95W
Intel	Core i7-9700K	3.60GHz	12MB	350 MHz / 1200 MHz	Coffee Lake	14nm	R0	95W
Intel	Core i7-9700F	3.00GHz	12MB	N/A	Coffee Lake	14nm	R0	65W
Intel	Core i7-9700	3.00GHz	12MB	350 MHz / 1200 MHz	Coffee Lake	14nm	R0	65W
Intel	Core i7-9700T	2.00GHz	12MB	350 MHz / 1200 MHz	Coffee Lake	14nm	R0	35W
Intel	Core i7-8086K	4.00GHz	12MB	350 MHz / 1200 MHz	Coffee Lake	14nm	U0	95W
Intel	Core i7-8700K	3.70GHz	12MB	350 MHz / 1200 MHz	Coffee Lake	14nm	U0	95W
Intel	Core i7-8700	3.20GHz	12MB	350 MHz / 1200 MHz	Coffee Lake	14nm	U0	65W
Intel	Core i7-8700T	2.40GHz	12MB	350 MHz / 1200 MHz	Coffee Lake	14nm	U0	35W
Intel	Core i5-9600KF	3.70GHz	9MB	N/A	Coffee Lake	14nm	R0	95W
Intel	Core i5-9600KF	3.70GHz	9MB	N/A	Coffee Lake	14nm	P0	95W
Intel	Core i5-9600K	3.70GHz	9MB	350 MHz / 1150 MHz	Coffee Lake	14nm	R0	95W
Intel	Core i5-9600K	3.70GHz	9MB	350 MHz / 1150 MHz	Coffee Lake	14nm	P0	95W
Intel	Core i5-9600	3.10GHz	9MB	350 MHz / 1150 MHz	Coffee Lake	14nm	U0	65W
Intel	Core i5-9600T	2.30GHz	9MB	350 MHz / 1150 MHz	Coffee Lake	14nm	U0	35W
Intel	Core i5-9500F	3.00GHz	9MB	N/A	Coffee Lake	14nm	U0	65W
Intel	Core i5-9500	3.00GHz	9MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	65W
Intel	Core i5-9500T	2.20GHz	9MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	35W
Intel	Core i5-9400F	2.90GHz	9MB	N/A	Coffee Lake	14nm	P0	65W
Intel	Core i5-9400F	2.90GHz	9MB	N/A	Coffee Lake	14nm	R0	65W
Intel	Core i5-9400F	2.90GHz	9MB	N/A	Coffee Lake	14nm	U0	65W
Intel	Core i5-9400	2.90GHz	9MB	350 MHz / 1050 MHz	Coffee Lake	14nm	P0	65W
Intel	Core i5-9400	2.90GHz	9MB	350 MHz / 1050 MHz	Coffee Lake	14nm	R0	65W
Intel	Core i5-9400	2.90GHz	9MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	65W
Intel	Core i5-9400T	1.80GHz	9MB	350 MHz / 1050 MHz	Coffee Lake	14nm	R0	35W
Intel	Core i5-9400T	1.80GHz	9MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	35W
Intel	Core i5-8600K	3.60GHz	9MB	350 MHz / 1150 MHz	Coffee Lake	14nm	U0	95W
Intel	Core i5-8600	3.10GHz	9MB	350 MHz / 1150 MHz	Coffee Lake	14nm	U0	65W
Intel	Core i5-8600T	2.30GHz	9MB	350 MHz / 1150 MHz	Coffee Lake	14nm	U0	35W
Intel	Core i5-8500	3.00GHz	9MB	350 MHz / 1100 MHz	Coffee Lake	14nm	U0	65W
Intel	Core i5-8500T	2.10GHz	9MB	350 MHz / 1100 MHz	Coffee Lake	14nm	U0	35W
Intel	Core i5-8400	2.80GHz	9MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	65W
Intel	Core i5-8400T	1.70GHz	9MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	35W
Intel	Core i3-9350KF	4.00GHz	8MB	N/A	Coffee Lake	14nm	B0	91W
Intel	Core i3-9350K	4.00GHz	8MB	350 MHz / 1150 MHz	Coffee Lake	14nm	B0	91W
Intel	Core i3-9320	3.70GHz	8MB	350 MHz / 1150 MHz	Coffee Lake	14nm	B0	62W
Intel	Core i3-9300	3.70GHz	8MB	350 MHz / 1150 MHz	Coffee Lake	14nm	B0	62W
Intel	Core i3-9300T	3.20GHz	8MB	350 MHz / 1150 MHz	Coffee Lake	14nm	B0	35W
Intel	Core i3-9100F	3.60GHz	6MB	N/A	Coffee Lake	14nm	B0	65W
Intel	Core i3-9100F	3.60GHz	6MB	N/A	Coffee Lake	14nm	U0	65W
Intel	Core i3-9100	3.60GHz	6MB	350 MHz / 1100 MHz	Coffee Lake	14nm	B0	65W
Intel	Core i3-9100T	3.10GHz	6MB	350 MHz / 1100 MHz	Coffee Lake	14nm	B0	35W
Intel	Core i3-8350K	4.00GHz	8MB	350 MHz / 1150 MHz	Coffee Lake	14nm	B0	91W
Intel	Core i3-8300	3.70GHz	8MB	350 MHz / 1150 MHz	Coffee Lake	14nm	B0	62W
Intel	Core i3-8300T	3.20GHz	8MB	350 MHz / 1100 MHz	Coffee Lake	14nm	B0	35W
Intel	Core i3-8100	3.60GHz	6MB	350 MHz / 1100 MHz	Coffee Lake	14nm	B0	65W
Intel	Core i3-8100	3.60GHz	6MB	350 MHz / 1100 MHz	Coffee Lake	14nm	U0	65W
Intel	Core i3-8100T	3.10GHz	6MB	350 MHz / 1100 MHz	Coffee Lake	14nm	B0	35W
Intel	Pentium G5620	4.00GHz	4MB	350 MHz / 1100 MHz	Coffee Lake	14nm	B0	54W
Intel	Pentium G5600	3.90GHz	4MB	350 MHz / 1100 MHz	Coffee Lake	14nm	B0	54W
Intel	Pentium G5600F	3.90GHz	4MB	N/A	Coffee Lake	14nm	B0	54W
Intel	Pentium G5600T	3.30GHz	4MB	350 MHz / 1100 MHz	Coffee Lake	14nm	B0	54W
Intel	Pentium G5500	3.80GHz	4MB	350 MHz / 1100 MHz	Coffee Lake	14nm	B0	54W
Intel	Pentium G5500T	3.20GHz	4MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	35W
Intel	Pentium G5420	3.80GHz	4MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	58W
Intel	Pentium G5420	3.80GHz	4MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	58W
Intel	Pentium G5420T	3.20GHz	4MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	58W
Intel	Pentium G5420T	3.20GHz	4MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	58W
Intel	Pentium G5400	3.70GHz	4MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	54W
Intel	Pentium G5400	3.70GHz	4MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	58W
Intel	Pentium G5400T	3.10GHz	4MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	35W
Intel	Pentium G5400T	3.10GHz	4MB	350 MHz / 1050 MHz	Coffee Lake	14nm	U0	35W
Intel	Celeron G4950	3.30GHz	2MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	54W
Intel	Celeron G4920	3.20GHz	2MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	54W
Intel	Celeron G4900	3.10GHz	2MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	54W
Intel	Celeron G4900T	2.90GHz	2MB	350 MHz / 1050 MHz	Coffee Lake	14nm	B0	35W
