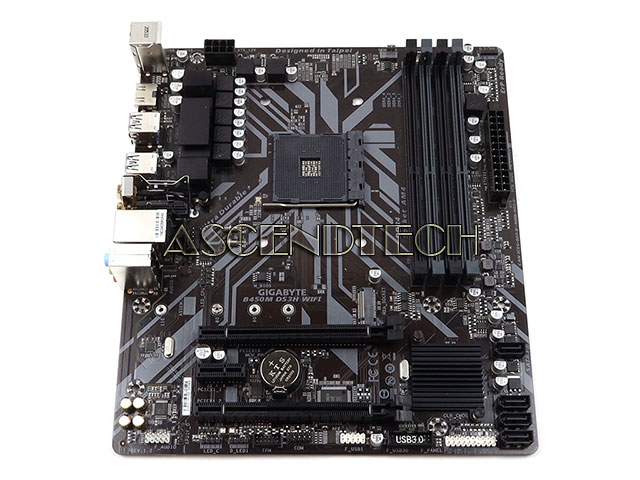

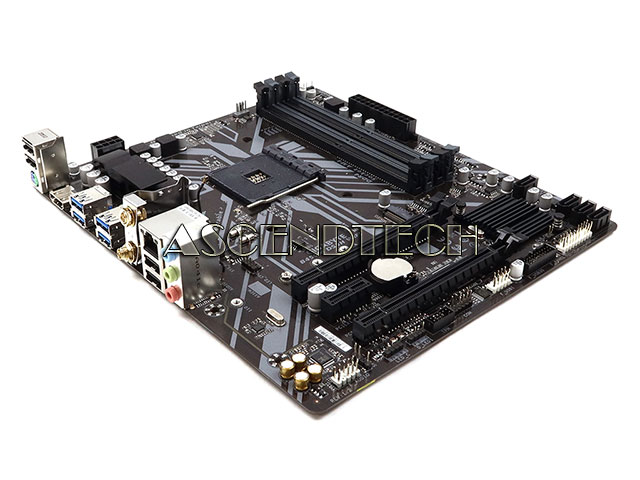

Gigabyte B450M DS3H WIFI MB No I/O WIFI
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item CodeMBDSKB450MDS3HN
BrandGigabyte
ModelB450M DS3H WIFI
CategoryAmd Socket Am4 Motherboard
ConditionLike New Grade A
Condition DescriptionPlease note, this motherboard does not include an I/O Shield, WIFI card, fan brackets, fan backplate, cables, or any other accessories!
Description
Gigabyte B450M DS3H WIFI AMD Chipset B450 Socket AM4 DDR4 HDMI USB SATA 6Gb/s Micro ATX Desktop Motherboard.
Chipset: AMD B450
Socket: AMD AM4
Compatible/Supported CPU: AMD Ryzen 5000 series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Storage Interface: SATA 6Gb/s
RAID Support: RAID 0, RAID 1 and RAID 10
Wireless Lan Support: Realtek GbE LAN chip (10/100/1000 Mbit)
Audio: Realtek ALC887 codec
Connectors: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x CPU fan header; 1x system fan header; 1x M.2 Socket 3 connector; 4x SATA 6Gb/s connectors; 1x front panel header; 1x front panel audio header; 1x S/PDIF Out header; 1x CPU cooler LED strip/RGB LED strip header; 1x RGB LED strip header; 2x addressable LED strip headers; 1x USB 3.1 Gen 1 header; 2x USB 2.0/1.1 headers; 1x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only); 1x serial port header; 1x Clear CMOS jumper.
Input/Output Ports: 1x PS/2 keyboard/mouse port; 1x HDMI port; 4x USB 3.1 Gen 1 ports; 4x USB 2.0/1.1 ports; 2x SMA antenna connectors (1T1R); 1x RJ-45 port; 3x audio jacks.
Expansion Slots: 1x PCI Express x16 slot, running at x16 (PCIEX16); 1x PCI Express x16 slot, running at x1 (PCIEX1_2); 1x PCI Express x1 slot.
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Support for Windows 10 64-bit, Windows 7 64-bit (To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU).
Features: Supports AMD Ryzen 5000 series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors; Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs; Intel Dual Band 802.11ac WIFI & BT 4.2; Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support; High Quality Audio Capacitors and Audio Noise Guard Design; RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support; Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software; Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP; APP Center Including EasyTune and Cloud Station Utilities; CEC 2019 Ready, Save Power with a Simple Click.
Additional Specifications:
Onboard Graphics
Integrated Graphics Processor:
1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Maximum shared memory of 16 GB
USB
CPU:
4 x USB 3.1 Gen 1 ports on the back panel
Chipset:
2 x USB 3.1 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
I/O Controller
iTE I/O Controller Chip
BIOS
1x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
CPU Support:
| Socket AM4 | ||||||||
|---|---|---|---|---|---|---|---|---|
| Vendor | CPU Model | Frequency | L2 Cache | L3 Cache | GPU Frequency | Core Name | Process | Wattage |
| AMD | Ryzen 9 5950X | 3.4GHz / 4.9GHz | 8MB | 64MB | N/A | Vermeer | 7nm | 105W |
| AMD | Ryzen 9 5900X | 3.7GHz / 4.8GHz | 6MB | 64MB | N/A | Vermeer | 7nm | 105W |
| AMD | Ryzen 9 3950X | 3.5GHz / 4.7GHz | 8MB | 64MB | N/A | Matisse | 7nm | 105W |
| AMD | Ryzen 9 3900XT | 3.8GHz / 4.7GHz | 6MB | 64MB | N/A | Matisse | 7nm | 105W |
| AMD | Ryzen 9 3900X | 3.8GHz / 4.6GHz | 6MB | 64MB | N/A | Matisse | 7nm | 105W |
| AMD | Ryzen 9 3900 | 3.1GHz / 4.3GHz | 6MB | 64MB | N/A | Matisse | 7nm | 65W |
| AMD | Ryzen 9 PRO 3900 | 3.1GHz / 4.3GHz | 6MB | 64MB | N/A | Matisse | 7nm | 65W |
| AMD | Ryzen 7 5800X | 3.8GHz / 4.7GHz | 4MB | 32MB | N/A | Vermeer | 7nm | 105W |
| AMD | Ryzen 7 3800XT | 3.9GHz / 4.7GHz | 4MB | 32MB | N/A | Matisse | 7nm | 105W |
| AMD | Ryzen 7 3800X | 3.9GHz / 4.5GHz | 4MB | 32MB | N/A | Matisse | 7nm | 105W |
| AMD | Ryzen 7 3700X | 3.6GHz / 4.4GHz | 4MB | 32MB | N/A | Matisse | 7nm | 65W |
| AMD | Ryzen 7 PRO 3700 | 3.6GHz / 4.4GHz | 4MB | 32MB | N/A | Matisse | 7nm | 65W |
| AMD | Ryzen 7 2700X | 3.7GHz / 4.35GHz | 4MB | 16MB | N/A | Pinnacle Ridge | 12nm | 105W |
| AMD | Ryzen 7 PRO 2700X | 3.6GHz / 4.1GHz | 4MB | 16MB | N/A | Pinnacle Ridge | 12nm | 95W |
| AMD | Ryzen 7 2700 | 3.2GHz / 4.1GHz | 4MB | 16MB | N/A | Pinnacle Ridge | 12nm | 65W |
| AMD | Ryzen 7 PRO 2700 | 3.2GHz / 4.1GHz | 4MB | 16MB | N/A | Pinnacle Ridge | 12nm | 65W |
| AMD | Ryzen 7 2700E | 2.8GHz / 4.0GHz | 4MB | 16MB | N/A | Pinnacle Ridge | 12nm | 45W |
| AMD | Ryzen 7 1800X | 3.6GHz / 4.0GHz | 4MB | 16MB | N/A | Summit Ridge | 14nm | 95W |
| AMD | Ryzen 7 1700X | 3.4GHz / 3.8GHz | 4MB | 16MB | N/A | Summit Ridge | 14nm | 95W |
| AMD | Ryzen 7 PRO 1700X | 3.4GHz / 3.8GHz | 4MB | 16MB | N/A | Summit Ridge | 14nm | 95W |
| AMD | Ryzen 7 1700 | 3.0GHz / 3.7GHz | 4MB | 16MB | N/A | Summit Ridge | 14nm | 65W |
| AMD | Ryzen 7 PRO 1700 | 3.0GHz / 3.7GHz | 4MB | 16MB | N/A | Summit Ridge | 14nm | 65W |
| AMD | Ryzen 5 5600X | 3.7GHz / 4.6GHz | 3MB | 32MB | N/A | Vermeer | 7nm | 65W |
| AMD | Ryzen 5 3600X | 3.8GHz / 4.4GHz | 3MB | 32MB | N/A | Matisse | 7nm | 95W |
| AMD | Ryzen 5 3600XT | 3.8GHz / 4.5GHz | 3MB | 32MB | N/A | Matisse | 7nm | 95W |
| AMD | Ryzen 5 3600 | 3.6GHz / 4.2GHz | 3MB | 32MB | N/A | Matisse | 7nm | 65W |
| AMD | Ryzen 5 PRO 3600 | 3.6GHz / 4.2GHz | 3MB | 32MB | N/A | Matisse | 7nm | 65W |
| AMD | Ryzen 5 3500X | 3.6GHz / 4.1GHz | 3MB | 32MB | N/A | Matisse | 7nm | 65W |
| AMD | Ryzen 5 3500 | 3.6GHz / 4.1GHz | 3MB | 16MB | N/A | Matisse | 7nm | 65W |
| AMD | Ryzen 5 3400G | 3.7GHz / 4.2GHz | 2MB | 4MB | 1400 MHz | Picasso | 12nm | 45-65W |
| AMD | Ryzen 5 PRO 3400G | 3.7GHz / 4.2GHz | 2MB | 4MB | 1400 MHz | Picasso | 12nm | 45-65W |
| AMD | Ryzen 5 3400GE | 3.3GHz / 4.0GHz | 2MB | 4MB | 1300 MHz | Picasso | 12nm | 35W |
| AMD | Ryzen 5 PRO 3400GE | 3.3GHz / 4.0GHz | 2MB | 4MB | 1300 MHz | Picasso | 12nm | 35W |
| AMD | Ryzen 5 2600X | 3.6GHz / 4.2GHz | 3MB | 16MB | N/A | Pinnacle Ridge | 12nm | 95W |
| AMD | Ryzen 5 2600 | 3.4GHz / 3.9GHz | 3MB | 16MB | N/A | Pinnacle Ridge | 12nm | 65W |
| AMD | Ryzen 5 PRO 2600 | 3.4GHz / 3.9GHz | 3MB | 16MB | N/A | Pinnacle Ridge | 12nm | 65W |
| AMD | Ryzen 5 2600E | 3.1GHz / 4.0GHz | 3MB | 16MB | N/A | Pinnacle Ridge | 12nm | 45W |
| AMD | Ryzen 5 2500X | 3.6GHz / 4.0GHz | 3MB | 16MB | N/A | Pinnacle Ridge | 12nm | 65W |
| AMD | Ryzen 5 2400G | 3.6GHz / 3.9GHz | 2MB | 4MB | 1250 MHz | Raven Ridge | 14nm | 45-65W |
| AMD | Ryzen 5 PRO 2400G | 3.6GHz / 3.9GHz | 2MB | 4MB | 1250 MHz | Raven Ridge | 14nm | 45-65W |
| AMD | Ryzen 5 2400GE | 3.2GHz / 3.8GHz | 2MB | 4MB | 1250 MHz | Raven Ridge | 14nm | 35W |
| AMD | Ryzen 5 PRO 2400GE | 3.2GHz / 3.8GHz | 2MB | 4MB | 1250 MHz | Raven Ridge | 14nm | 35W |
| AMD | Ryzen 5 1600X | 3.6GHz / 4.0GHz | 3MB | 16MB | N/A | Summit Ridge | 14nm | 95W |
| AMD | Ryzen 5 1600 (YD1600BBM6IAF) | 3.2GHz / 3.6GHz | 3MB | 16MB | N/A | Pinnacle Ridge | 12nm | 65W |
| AMD | Ryzen 5 1600 (YD1600BBM6IAE) | 3.2GHz / 3.6GHz | 3MB | 16MB | N/A | Summit Ridge | 14nm | 65W |
| AMD | Ryzen 5 PRO 1600 | 3.2GHz / 3.6GHz | 3MB | 16MB | N/A | Summit Ridge | 14nm | 65W |
| AMD | Ryzen 5 1500X | 3.5GHz / 3.7GHz | 2MB | 16MB | N/A | Summit Ridge | 14nm | 65W |
| AMD | Ryzen 5 PRO 1500 | 3.5GHz / 3.7GHz | 2MB | 16MB | N/A | Summit Ridge | 14nm | 65W |
| AMD | Ryzen 5 1400 | 3.2GHz / 3.4GHz | 2MB | 8MB | N/A | Summit Ridge | 14nm | 65W |
| AMD | Ryzen 3 3300X | 3.8GHz / 4.3GHz | 3MB | 16MB | N/A | Matisse | 7nm | 65W |
| AMD | Ryzen 3 3200G | 3.6GHz / 4.0GHz | 2MB | 4MB | 1250 MHz | Picasso | 12nm | 45-65W |
| AMD | Ryzen 3 PRO 3200G | 3.6GHz / 4.0GHz | 2MB | 4MB | 1250 MHz | Picasso | 12nm | 45-65W |
| AMD | Ryzen 3 3200GE | 3.3GHz / 3.8GHz | 2MB | 4MB | 1200 MHz | Picasso | 12nm | 35W |
| AMD | Ryzen 3 PRO 3200GE | 3.3GHz / 3.8GHz | 2MB | 4MB | 1200 MHz | Picasso | 12nm | 35W |
| AMD | Ryzen 3 3100 | 3.6GHz / 3.9GHz | 3MB | 16MB | N/A | Matisse | 7nm | 65W |
| AMD | Ryzen 3 2300X | 3.5GHz / 4.0GHz | 2MB | 8MB | N/A | Pinnacle Ridge | 12nm | 65W |
| AMD | Ryzen 3 2200G | 3.5GHz / 3.7GHz | 2MB | 4MB | 1100 MHz | Raven Ridge | 14nm | 45-65W |
| AMD | Ryzen 3 PRO 2200G | 3.5GHz / 3.7GHz | 2MB | 4MB | 1100 MHz | Raven Ridge | 14nm | 45-65W |
| AMD | Ryzen 3 2200GE | 3.2GHz / 3.6GHz | 2MB | 4MB | 1100 MHz | Raven Ridge | 14nm | 35W |
| AMD | Ryzen 3 PRO 2200GE | 3.2GHz / 3.6GHz | 2MB | 4MB | 1100 MHz | Raven Ridge | 14nm | 35W |
| AMD | Ryzen 3 1300X | 3.5GHz / 3.7GHz | 2MB | 8MB | N/A | Summit Ridge | 14nm | 65W |
| AMD | Ryzen 3 PRO 1300 | 3.5GHz / 3.7GHz | 2MB | 8MB | N/A | Summit Ridge | 14nm | 65W |
| AMD | Ryzen 3 1200 (YD1200BBM4KAF) | 3.1GHz / 3.4GHz | 2MB | 8MB | N/A | Pinnacle Ridge | 12nm | 65W |
| AMD | Ryzen 3 1200 (YD1200BBM4KAE) | 3.1GHz / 3.4GHz | 2MB | 8MB | N/A | Summit Ridge | 14nm | 65W |
| AMD | Ryzen 3 PRO 1200 | 3.1GHz / 3.4GHz | 2MB | 8MB | N/A | Summit Ridge | 14nm | 65W |
| AMD | Athlon 3000G | 3.5GHz / 3.5GHz | 1MB | 4MB | 1100 MHz | Picasso | 14nm | 35W |
| AMD | Athlon PRO 300GE | 3.4GHz / 3.4GHz | 1MB | 4MB | 1100 MHz | Picasso | 12nm | 35W |
| AMD | Athlon 240GE | 3.5GHz / 3.5GHz | 1MB | 4MB | 1000MHz | Raven Ridge | 14nm | 35W |
| AMD | Athlon 220GE | 3.4GHz / 3.4GHz | 1MB | 4MB | 1000MHz | Raven Ridge | 14nm | 35W |
| AMD | Athlon 200GE | 3.2GHz / 3.2GHz | 1MB | 4MB | 1000MHz | Raven Ridge | 14nm | 35W |
| AMD | Athlon PRO 200GE | 3.2GHz / 3.2GHz | 1MB | 4MB | 1000MHz | Raven Ridge | 14nm | 35W |
