GIGABYTE B460M DS3H AC Mboard No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge

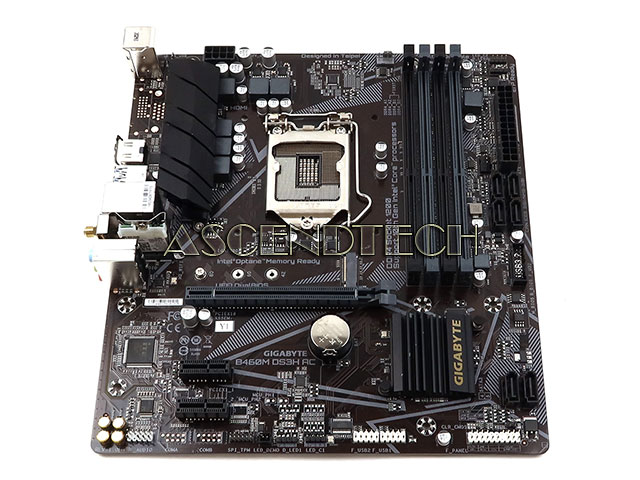

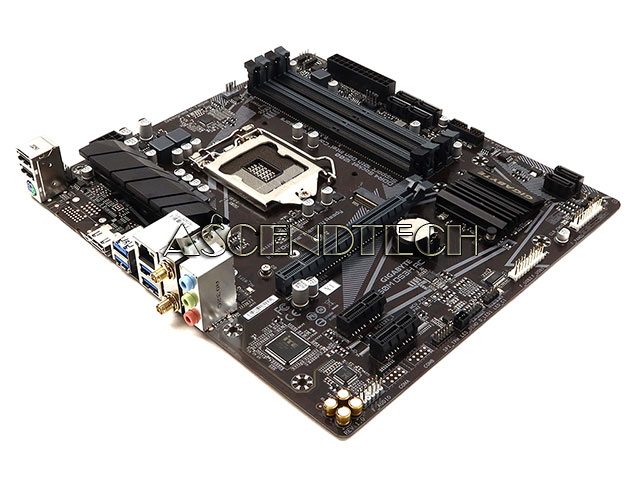

Gigabyte B460m Ds3h Ac Mboard No I/O
Gigabyte B460m Ds3h Ac Mboard No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMBDSB460MDS3HAC
BrandGigabyte
ModelB460M DS3H AC
CategoryIntel Lga1200 Motherboard
ConditionLike New Grade A
Condition DescriptionPlease note, this motherboard does not include an I/O Shield, fan’s mounting backplate, fan's brackets, cables, or any other accessories!

Description

GIGABYTE B460M DS3H AC Intel Chipset B460 Socket LGA1200 DDR4 USB SATA 3 6Gb/s HDMI Micro ATX Desktop Motherboard.

Chipset: Intel B460
Socket: Intel LGA1200
Compatible/Supported CPU: 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Storage Interface: SATA 3 6.0Gb/s
RAID Support: 0, 1, 5, 10
Bluetooth Standard: Bluetooth 4.2
Wireless Lan Support: Intel Wi-Fi 3168, 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Network/Communications: Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Audio: Realtek ALC887 codec
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x CPU fan header, 2x system fan headers, 2x addressable LED strip headers, 2x RGB LED strip headers, 6x SATA 6Gb/s connectors, 1x M.2 Socket 3 connector, 1x front panel header, 1x front panel audio header, 1x USB 3.2 Gen 1 header, 2x USB 2.0/1.1 headers, 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1x Clear CMOS jumper
Input/Output Ports: 1x PS/2 keyboard/mouse port, 1x HDMI port, 4x USB 3.2 Gen 1 ports, 2x USB 2.0/1.1 ports, 1x RJ-45 port, 2x SMA antenna connectors (1T1R), 3x audio jacks
Expansion Slots: 1x PCI Express x16 slot, running at x16 (PCIEX16), 2x PCI Express x1 slots, 1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support), 6x SATA 6Gb/s connectors
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit

Additional Specifications:

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Support for HDMI 1.4 version and HDCP 2.3
Maximum shared memory of 512 MB

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
1.Voltage detection
2.Temperature detection
3.Fan speed detection
4.Overheating warning
5.Fan fail warning
6.Fan speed control
Whether the fan speed control function is supported will depend on the fan you install

BIOS
1.2x 128 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.Support for DualBIOS
4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
1.Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
2.Support for Q-Flash
3.Support for Xpress Install



CPU Support:

Socket LGA1200
VendorCPU ModelCPU FrequencyL3 CacheGPU Info.Core NameSteppingWattage
IntelCore i9-10900K3.70GHz20MBIntel UHD Graphics 630Comet LakeQ0125W
IntelCore i9-10900KF3.70GHz20MBN/AComet LakeQ0125W
IntelCore i9-109002.80GHz20MBIntel UHD Graphics 630Comet LakeQ065W
IntelCore i9-10900F2.80GHz20MBN/AComet LakeQ065W
IntelCore i9-10900T1.90GHz20MBIntel UHD Graphics 630Comet LakeQ035W
IntelCore i9-10850K3.60GHz20MBIntel UHD Graphics 630Comet LakeQ0125W
IntelCore i7-10700K3.80GHz16MBIntel UHD Graphics 630Comet LakeQ0125W
IntelCore i7-10700KF3.80GHz16MBN/AComet LakeQ0125W
IntelCore i7-107002.90GHz16MBIntel® UHD Graphics 630Comet LakeQ065W
IntelCore i7-10700F2.90GHz16MBN/AComet LakeQ065W
IntelCore i7-10700T2.00GHz16MBIntel UHD Graphics 630Comet LakeQ035W
IntelCore i5-10600K4.10GHz12MBIntel UHD Graphics 630Comet LakeQ0125W
IntelCore i5-10600KF4.10GHz12MBN/AComet LakeQ0125W
IntelCore i5-106003.30GHz12MBIntel UHD Graphics 630Comet LakeG165W
IntelCore i5-10600T2.40GHz12MBIntel UHD Graphics 630Comet LakeG135W
IntelCore i5-105003.10GHz12MBIntel UHD Graphics 630Comet LakeG165W
IntelCore i5-10500T2.30GHz12MBIntel UHD Graphics 630Comet LakeG135W
IntelCore i5-104002.90GHz12MBIntel UHD Graphics 630Comet LakeG165W
IntelCore i5-10400F2.90GHz12MBN/AComet LakeQ065W
IntelCore i5-10400T2.00GHz12MBIntel UHD Graphics 630Comet LakeG135W
IntelCore i3-103253.90GHz8MBIntel Xe GraphicsComet LakeG165W
IntelCore i3-103053.80GHz8MBIntel Iris Xe GraphicsComet LakeG165W
IntelCore i3-10305T3.00GHz8MBIntel Iris Xe GraphicsComet LakeG135W
IntelCore i3-101053.70GHz6MBIntel Iris Xe GraphicsComet LakeG165W
IntelCore i3-10105F3.70GHz6MBN/AComet LakeG165W
IntelCore i3-10105T3.00GHz8MBIntel Iris Xe GraphicsComet LakeG135W
IntelCore i3-103203.80GHz8MBIntel UHD Graphics 630Comet LakeG165W
IntelCore i3-103003.70GHz8MBIntel UHD Graphics 630Comet LakeG165W
IntelCore i3-10300T3.00GHz8MBIntel UHD Graphics 630Comet LakeG135W
IntelCore i3-101003.60GHz8MBIntel UHD Graphics 630Comet LakeG165W
IntelCore i3-10100F3.60GHz8MBN/AComet LakeG165W
IntelCore i3-10100T3.00GHz8MBIntel UHD Graphics 630Comet LakeG135W
IntelPentium G66054.30GHz4MBIntel Iris Xe GraphicsComet LakeG158W
IntelPentium G65054.20GHz4MBIntel Iris Xe GraphicsComet LakeG158W
IntelPentium G6505T3.60GHz4MBIntel Iris Xe GraphicsComet LakeG135W
IntelPentium G64054.10GHz4MBIntel Iris Xe GraphicsComet LakeG158W
IntelPentium G6405T3.50GHz4MBIntel Iris Xe GraphicsComet LakeG135W
IntelPentium G66004.20GHz4MBIntel UHD Graphics 630Comet LakeG158W
IntelPentium G65004.10GHz4MBIntel UHD Graphics 630Comet LakeG158W
IntelPentium G6500T3.50GHz4MBIntel UHD Graphics 630Comet LakeG135W
IntelPentium G64004.00GHz4MBIntel UHD Graphics 630Comet LakeG158W
IntelPentium G6400T3.40GHz4MBIntel UHD Graphics 610Comet LakeG135W
IntelCeleron G59253.60GHz4MBIntel UHD Graphics 610Comet LakeG158W
IntelCeleron G59203.50GHz2MBIntel UHD Graphics 610Comet LakeG158W
IntelCeleron G59053.50GHz4MBIntel UHD Graphics 610Comet LakeG158W
IntelCeleron G5905T3.30GHz4MBIntel UHD Graphics 610Comet LakeG135W
IntelCeleron G59003.40GHz2MBIntel UHD Graphics 610Comet LakeG158W
IntelCeleron G5900T3.20GHz2MBIntel UHD Graphics 610Comet LakeG135W
