GIGABYTE B460M DS3H V2 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

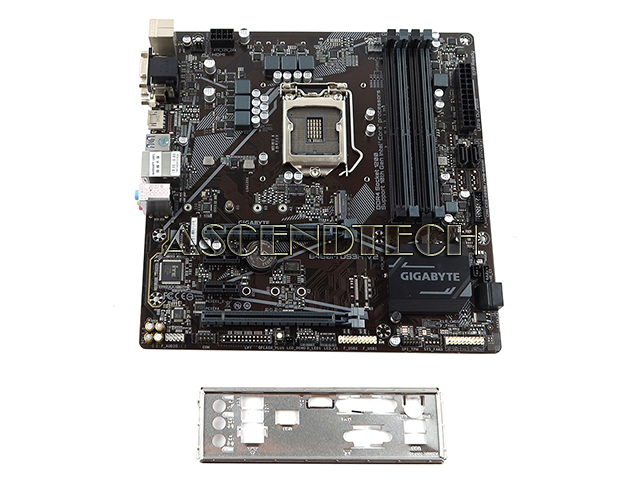

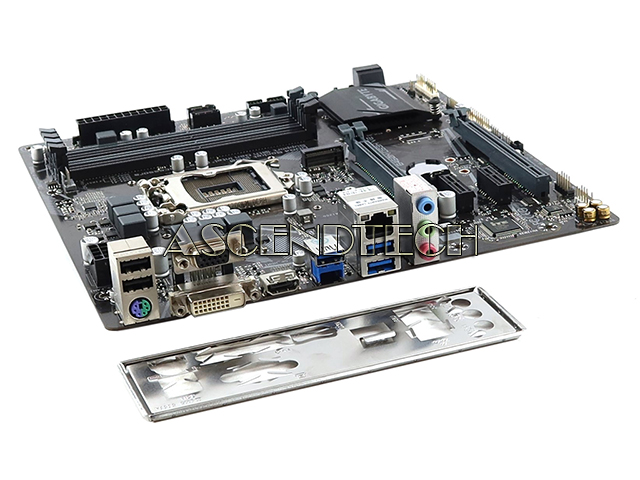

Gigabyte B460m Ds3h V2 Motherboard
  Enlarge
Gigabyte B460m Ds3h V2 Motherboard
Gigabyte B460m Ds3h V2 Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBDSKB460MDS3VA
Brand Gigabyte
Model B460M DS3H V2
Category Intel Lga1200 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard comes with I/O Shield, fan’s mounting backplate! No cables, or any other accessories!

Description

GIGABYTE B460M DS3H V2 Intel Chipset H470 Socket LGA1200 DDR4 SATA 6Gb/s HDMI DVI-D VGA Micro ATX Desktop Motherboard.

Chipset: Intel H470
Socket: Intel LGA1200
Compatible/Supported CPU: Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 2666MHz / 2400MHz / 2133MHz
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 5, 10
Network/Communications: Intel GbE LAN chip
Audio: Realtek Audio CODEC, 7.1-Channel High Definition Audio
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x CPU fan header, 1x system fan header, 1x addressable LED strip header, 1x RGB LED strip header, 1x M.2 Socket 3 connector, 4x SATA 6Gb/s connectors, 1x front panel header, 1x front panel audio header, 1x USB 3.2 Gen 1 header, 2x USB 2.0/1.1 headers, 2x Thunderbolt add-in card connectors, 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1x serial port header, 1x Clear CMOS jumper, 1x Q-Flash Plus button
Input/Output Ports: 1x PS/2 keyboard/mouse port, 1x D-Sub port, 1x DVI-D port, 1x HDMI port, 3x USB 3.2 Gen 1 ports, 2x USB 2.0/1.1 ports, 1x RJ-45 port, 3x audio jacks
Expansion Slots: 1x PCI Express x16 slot, running at x16 (PCIEX16), 1x PCI Express x16 slot, running at x4 (PCIEX4), 2x PCI Express x1 slots, 1x M.2 connector, 4x SATA 6Gb/s connectors
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit

Additional Specifications:

Onboard Graphics
1x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
The D-Sub port is only available with the 10th Generation processors.
1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
The DVI-D port does not support D-Sub connection by adapter.
1x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Support for HDMI 1.4 version and HDCP 2.3.

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
Whether the fan speed control function is supported will depend on the fan you install.

BIOS
1x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Q-Flash Plus

CPU Support:

Socket LGA1200
VendorCPU ModelFrequencyWattageL3 CacheStepping
IntelCore i9-11900K3.50GHz125W16MBB0
IntelCore i9-11900KF3.50GHz125W16MBB0
IntelCore i9-119002.50GHz65W16MBB0
IntelCore i9-11900F2.50GHz65W16MBB0
IntelCore i9-11900T1.50GHz35W16MBB0
IntelCore i9-10900K3.70GHz125W20MBQ0
IntelCore i9-10900KF3.70GHz125W20MBQ0
IntelCore i9-109002.80GHz65W20MBQ0
IntelCore i9-10900F2.80GHz65W20MBQ0
IntelCore i9-10900T1.90GHz35W20MBQ0
IntelCore i9-10850K3.60GHz125W20MBQ0
IntelCore i7-11700K3.60GHz125W16MBB0
IntelCore i7-11700KF3.60GHz125W16MBB0
IntelCore i7-117002.50GHz65W16MBB0
IntelCore i7-11700F2.50GHz65W16MBB0
IntelCore i7-11700T1.40GHz35W16MBB0
IntelCore i7-10700K3.80GHz125W16MBQ0
IntelCore i7-10700KF3.80GHz125W16MBQ0
IntelCore i7-107002.90GHz65W16MBQ0
IntelCore i7-10700F2.90GHz65W16MBQ0
IntelCore i7-10700T2.00GHz35W16MBQ0
IntelCore i5-11600K3.90GHz125W12MBB0
IntelCore i5-11600KF3.90GHz125W12MBB0
IntelCore i5-116002.80GHz65W12MBB0
IntelCore i5-11600T1.70GHz35W12MBB0
IntelCore i5-115002.70GHz65W12MBB0
IntelCore i5-11500T1.50GHz35W12MBB0
IntelCore i5-114002.60GHz65W12MBB0
IntelCore i5-11400F2.60GHz65W12MBB0
IntelCore i5-11400T1.30GHz35W12MBB0
IntelCore i5-10600K4.10GHz125W12MBQ0
IntelCore i5-10600KF4.10GHz125W12MBQ0
IntelCore i5-106003.30GHz65W12MBG1
IntelCore i5-10600T2.40GHz35W12MBG1
IntelCore i5-105003.10GHz65W12MBG1
IntelCore i5-10500T2.30GHz35W12MBG1
IntelCore i5-104002.90GHz65W12MBG1
IntelCore i5-10400F2.90GHz65W12MBQ0
IntelCore i5-10400T2.00GHz35W12MBG1
IntelCore i3-103253.90GHz65W8MBG1
IntelCore i3-103053.80GHz65W8MBG1
IntelCore i3-10305T3.00GHz35W8MBG1
IntelCore i3-101053.70GHz65W6MBG1
IntelCore i3-10105F3.70GHz65W6MBG1
IntelCore i3-10105T3.00GHz35W8MBG1
IntelCore i3-103203.80GHz65W8MBG1
IntelCore i3-103003.70GHz65W8MBG1
IntelCore i3-10300T3.00GHz35W8MBG1
IntelCore i3-101003.60GHz65W8MBG1
IntelCore i3-10100F3.60GHz65W8MBG1
IntelCore i3-10100T3.00GHz35W8MBG1
IntelPentium G66054.30GHz58W4MBG1
IntelPentium G65054.20GHz58W4MBG1
IntelPentium G6505T3.60GHz35W4MBG1
IntelPentium G64054.10GHz58W4MBG1
IntelPentium G6405T3.50GHz35W4MBG1
IntelPentium G66004.20GHz58W4MBG1
IntelPentium G65004.10GHz58W4MBG1
IntelPentium G6500T3.50GHz35W4MBG1
IntelPentium G64004.00GHz58W4MBG1
IntelPentium G6400T3.40GHz35W4MBG1
IntelCeleron G59253.60GHz58W4MBG1
IntelCeleron G59203.50GHz58W2MBG1
IntelCeleron G59053.50GHz58W4MBG1
IntelCeleron G5905T3.30GHz35W4MBG1
IntelCeleron G59003.40GHz58W2MBG1
IntelCeleron G5900T3.20GHz35W2MBG1
