GIGABYTE B550M DS3H AC Mboard No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Gigabyte B550m Ds3h Ac Mboard No I/O
  Enlarge

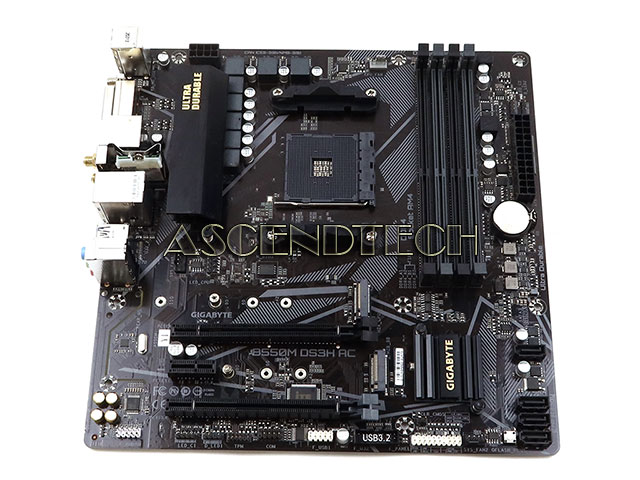

Gigabyte B550m Ds3h Ac Mboard No I/O
Gigabyte B550m Ds3h Ac Mboard No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBDSKB550MDS3HA
Brand Gigabyte
Model B550M DS3H AC
Category Amd Socket Am4 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not include an I/O Shield, cables, or any other accessories!

Description

GIGABYTE B550M DS3H AC AMD Chipset B550 Socket AM4 DDR4 USB-C DVI-D HDMI SATA 6GB/s Micro ATX Desktop Motherboard.

Chipset: AMD B550
Socket: AMD AM4
Compatible/Supported CPU: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Storage Interface: SATA 3 6Gb/s
RAID Support: 0, 1, 10
Bluetooth Standard: Bluetooth 4.2
Wireless Lan Support: Intel Wi-Fi AC 3168, WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band (01AX706)
Network/Communications: Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x CPU fan header, 2x system fan headers, 2x addressable LED strip headers, 2x RGB LED strip headers, 1x CPU cooler LED strip/RGB LED strip header, 2x M.2 Socket 3 connectors, 4x SATA 6Gb/s connectors, 1x front panel header, 1x front panel audio header, 1x USB 3.2 Gen 1 header, 1x USB 2.0/1.1 header, 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1x serial port header, 1x Clear CMOS jumper, 1x Q-Flash Plus button
Input/Output Ports: 1x PS/2 keyboard/mouse port, 1x DVI-D port, 2x SMA antenna connectors (1T1R), 1x HDMI port, 4x USB 3.2 Gen 1 ports, 4x USB 2.0/1.1 ports, 1x RJ-45 port, 3x audio jacks
Expansion Slots: 1x PCI Express x16 slot (PCIEX16), 1x PCI Express x16 slot (PCIEX4), 1x PCI Express x1 slot (PCIEX1), 1x M.2 connector M key, type 2242/2260/2280/22110, 1x M key, type 2242/2260/2280, 4x SATA 6Gb/s connectors
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / Windows 11 64-bit

Additional Specifications:

Onboard Graphics
Integrated Graphics Processor:
1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
The DVI-D port does not support D-Sub connection by adapter
1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version, HDCP 2.3, and HDR
Maximum shared memory of 16 GB

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
Whether the fan speed control function is supported will depend on the cooler you install

BIOS
1x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

CPU Support:

Socket AM4
VendorCPU ModelCPU FrequencyL3 CacheProcessCore NameSteppingWattage
AMDRyzen 9 5950X3‎.4GHz / 4.9GHz64MB7nmVermeerB0105W
AMDRyzen 9 5900X3‎.7GHz / 4.8GHz64MB7nmVermeerB0105W
AMDRyzen 9 3950X3.5GHz / 4.7GHz64MB7nmMatisseB0105W
AMDRyzen 9 3900XT3.8GHz / 4.7GHz64MB7nmMatisseB0105W
AMDRyzen 9 3900X3.8GHz / 4.6GHz64MB7nmMatisseB0105W
AMDRyzen 9 39003.1GHz / 4.3GHz64MB7nmMatisseB065W
AMDRyzen 9 PRO 39003.1GHz / 4.3GHz64MB7nmMatisseB065W
AMDRyzen 7 5800X3D3.4GHz / 4.5GHz96MB7nmVermeerB0105W
AMDRyzen 7 5800X3.8GHz / 4.7GHz32MB7nmVermeerB0105W
AMDRyzen 7 5700X3.4GHz / 4.6GHz32MB7nmVermeerB0105W
AMDRyzen 7 PRO 5750G3.8GHz / 4.6GHz16MB7nmCezanneA065W
AMDRyzen 7 PRO 5750GE3.2GHz / 4.6GHz16MB7nmCezanneA035W
AMDRyzen 7 5700G3.8GHz / 4.6GHz16MB7nmCezanneA065W
AMDRyzen 7 5700GE3.2GHz / 4.6GHz16MB7nmCezanneA035W
AMDRyzen 7 PRO 4750G3.6GHz / 4.4GHz8MB7nmRenoirA165W
AMDRyzen 7 PRO 4750GE3.1GHz / 4.3GHz8MB7nmRenoirA135W
AMDRyzen 7 4700G3.6GHz / 4.4GHz8MB7nmRenoirA165W
AMDRyzen 7 4700GE3.1GHz / 4.3GHz8MB7nmRenoirA135W
AMDRyzen 7 3800XT3.9GHz / 4.7GHz32MB7nmMatisseB0105W
AMDRyzen 7 3800X3.9GHz / 4.5GHz32MB7nmMatisseB0105W
AMDRyzen 7 3700X3.6GHz / 4.4GHz32MB7nmMatisseB065W
AMDRyzen 7 PRO 37003.6GHz / 4.4GHz32MB7nmMatisseB065W
AMDRyzen 5 5600X3‎.7GHz / 4.6GHz32MB7nmVermeerB065W
AMDRyzen 5 56003.5GHz / 4.4GHz32MB7nmVermeerB065W
AMDRyzen 5 PRO 5650G3.9GHz / 4.4GHz16MB7nmCezanneA065W
AMDRyzen 5 PRO 5650GE3‎.4GHz / 4.4GHz16MB7nmCezanneA035W
AMDRyzen 5 5600G3.9GHz / 4.4GHz16MB7nmCezanneA065W
AMDRyzen 5 5600GE3‎.4GHz / 4.4GHz16MB7nmCezanneA035W
AMDRyzen 5 55003.6GHz / 4.2GHz16MB7nmCezanneA065W
AMDRyzen 5 4600G3.7GHz / 4.2GHz8MB7nmRenoirA165W
AMDRyzen 5 4600GE3.3GHz / 4.2GHz8MB7nmRenoirA135W
AMDRyzen 5 PRO 4650G3.7GHz / 4.2GHz8MB7nmRenoirA165W
AMDRyzen 5 PRO 4650GE3.3GHz / 4.2GHz8MB7nmRenoirA135W
AMDRyzen 5 45003.6GHz / 4.1GHz8MB7nmRenoirA165W
AMDRyzen 5 3600X3.8GHz / 4.4GHz32MB7nmMatisseB095W
AMDRyzen 5 3600XT3.8GHz / 4.5GHz32MB7nmMatisseB095W
AMDRyzen 5 36003.6GHz / 4.2GHz32MB7nmMatisseB065W
AMDRyzen 5 PRO 36003.6GHz / 4.2GHz32MB7nmMatisseB065W
AMDRyzen 5 3500X3.6GHz / 4.1GHz32MB7nmMatisseB065W
AMDRyzen 5 35003.6GHz / 4.1GHz16MB7nmMatisseB065W
AMDRyzen 3 5300G4.0GHz / 4.2GHz8MB7nmCezanneA065W
AMDRyzen 3 5300GE3.6GHz / 4.2GHz8MB7nmCezanneA035W
AMDRyzen 3 51003.8GHz / 4.2GHz8MB7nmCezanneA065W
AMDRyzen 3 4300G3.8GHz / 4.0GHz4MB7nmRenoirA165W
AMDRyzen 3 4300GE3.5GHz / 4.0GHz4MB7nmRenoirA135W
AMDRyzen 3 PRO 4350GE3.5GHz / 4.0GHz4MB7nmRenoirA135W
AMDRyzen 3 PRO 4350G3.8GHz / 4.0GHz4MB7nmRenoirA165W
AMDRyzen 3 41003.8GHz / 4.0GHz4MB7nmRenoirA165W
AMDRyzen 3 3300X3.8GHz / 4.3GHz16MB7nmMatisseB065W
AMDRyzen 3 31003.6GHz / 3.9GHz16MB7nmMatisseB065W
